Shot road system Projector

THE SHOT ROAD SYSTEM was designed specifically for these ranges of luminaires.

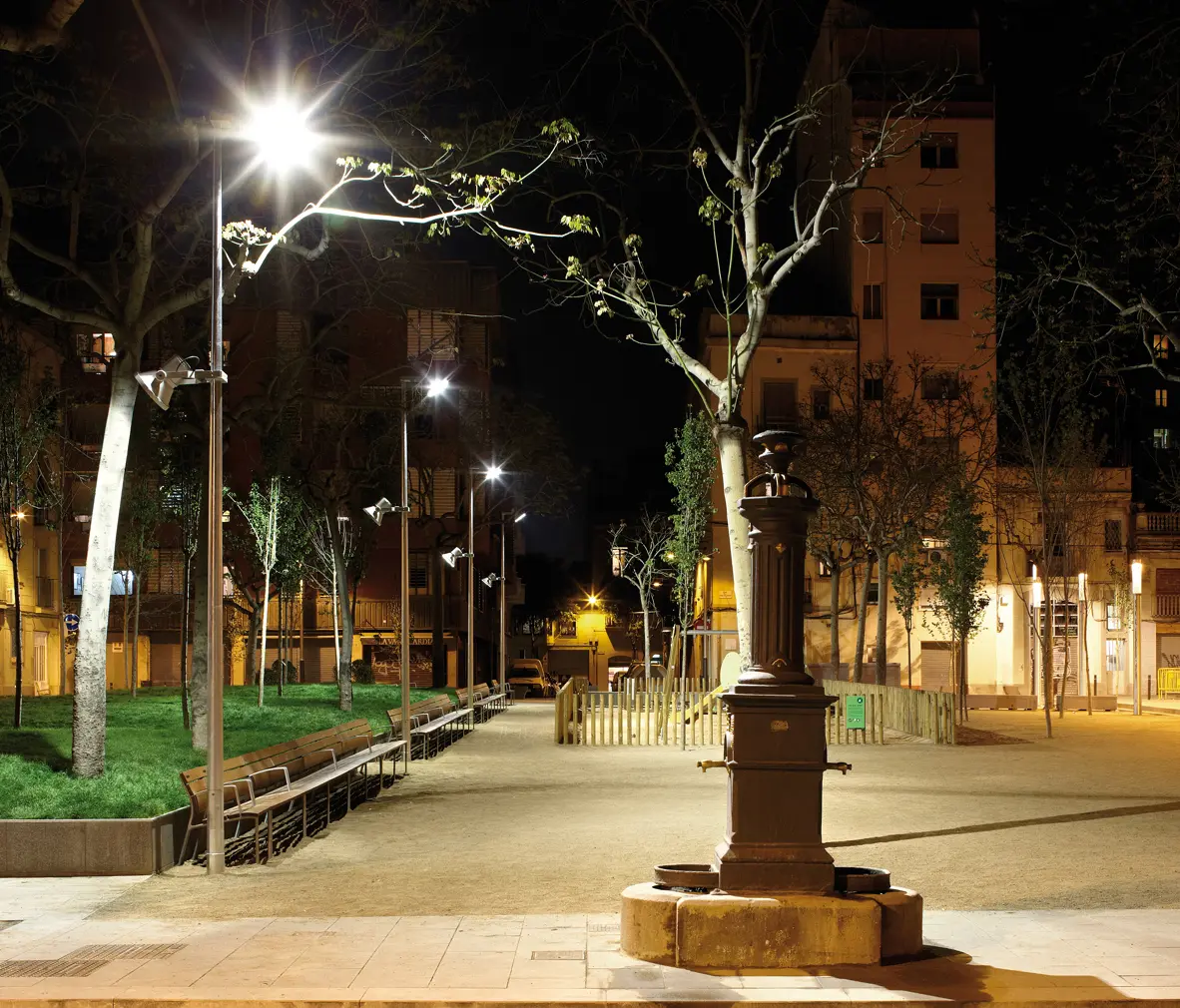

This systems expands the range of applications of these luminaires, for the purpose of lighting pedestrian walkways, reverse priority streets and both main and secondary urban roadways.

The system consists of end and intermediate arms, both single and double to install in truncated cone-shaped columns with a tip diameter of 60 or 76 mm. They can also be installed on cylindrical columns with a maximum diameter of 120 mm. To complement the system, wall arms are available for small spaces.

The flexibility of the system, as well as the hinge joint of the arm allows even light distribution and prevents glare, while dissipating light flow to the upper hemisphere.

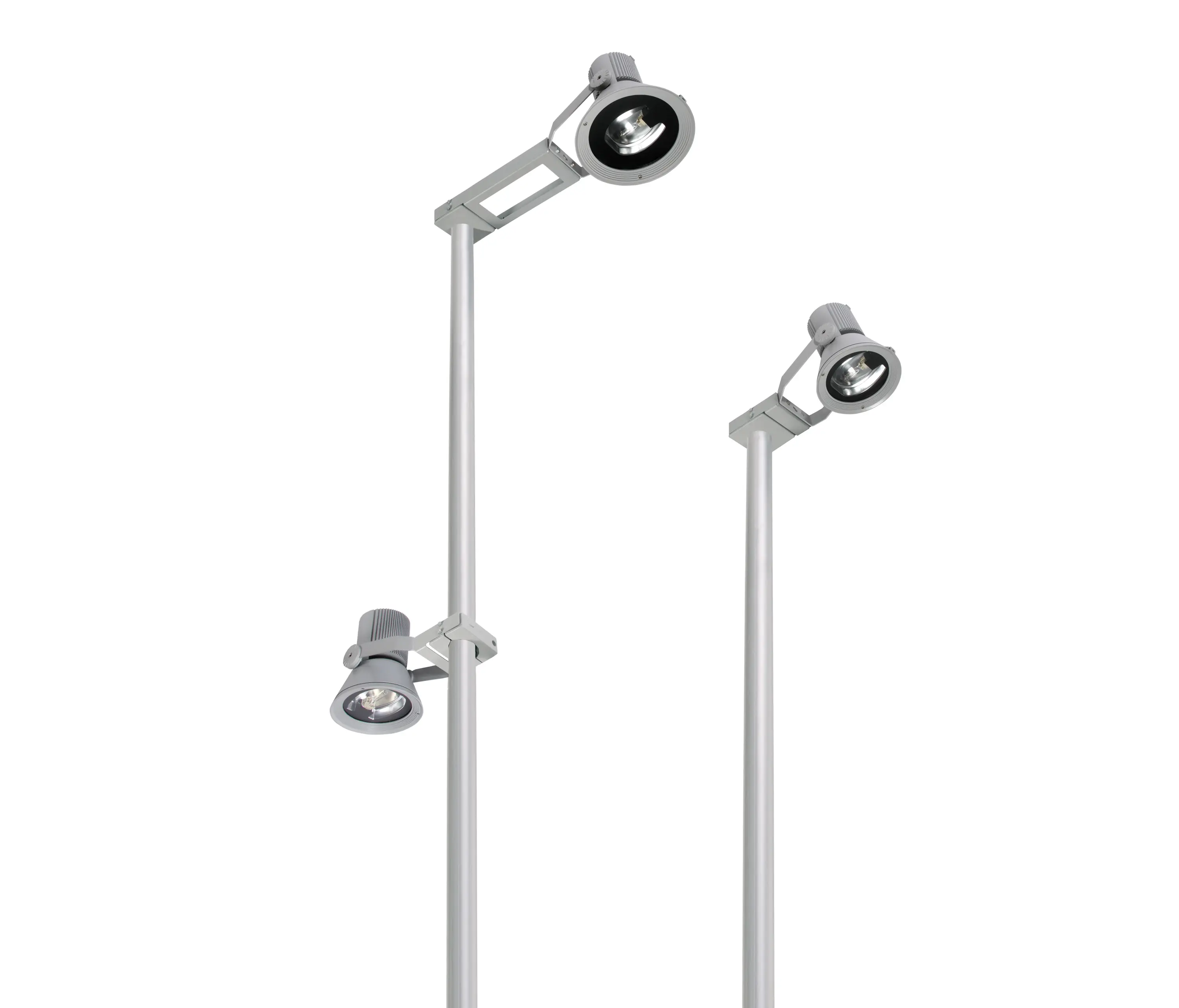

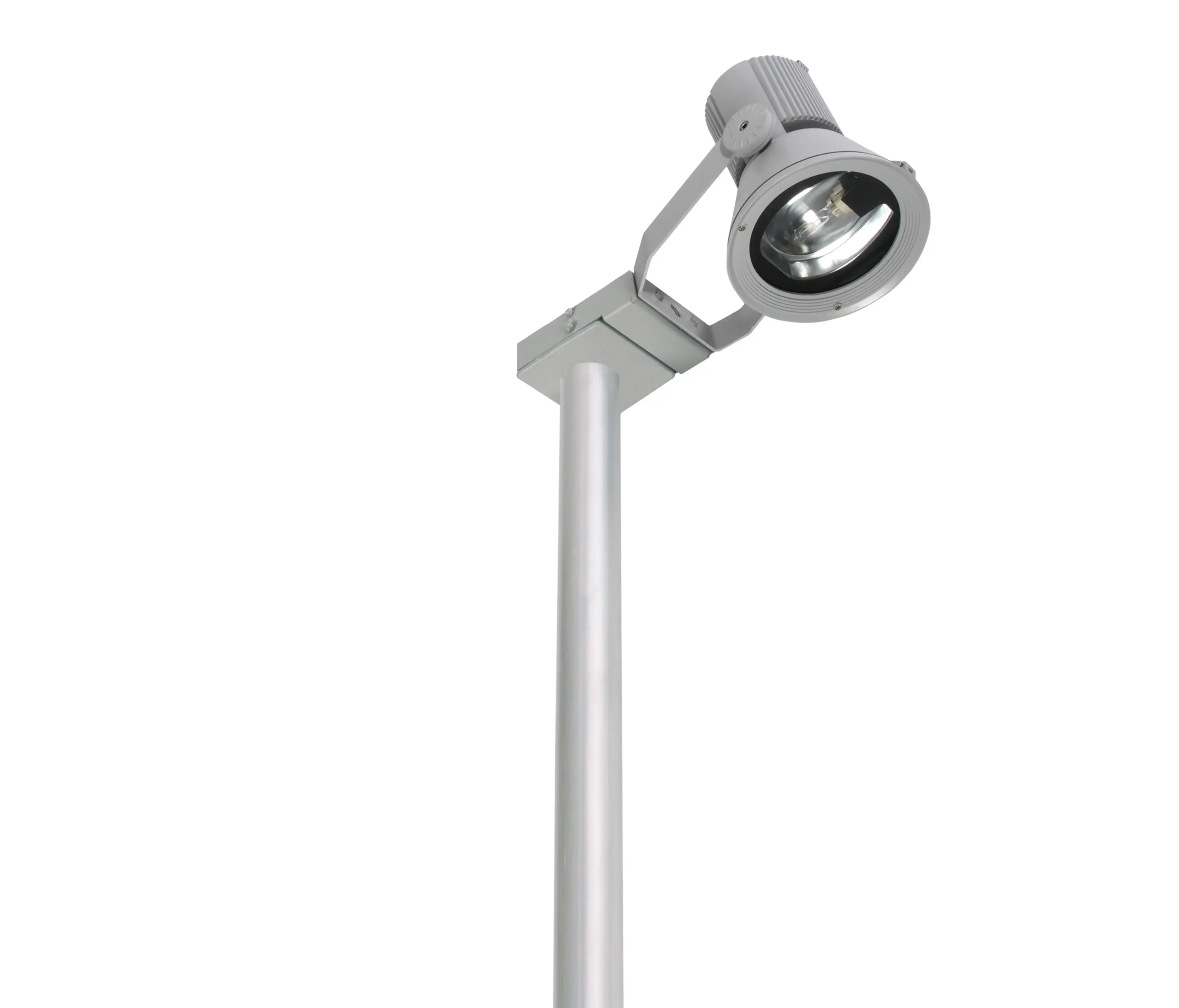

THE SHOT ROAD SYSTEM consists of short and long single or double arms. All manufactured from 3 mm galvanised steel plate, lacquered in texturised grey polyester. The end and intermediate clamps are manufactured from injected aluminium and lacquered in texturised grey polyester. Fastening elements in AISI 316 stainless steel.
