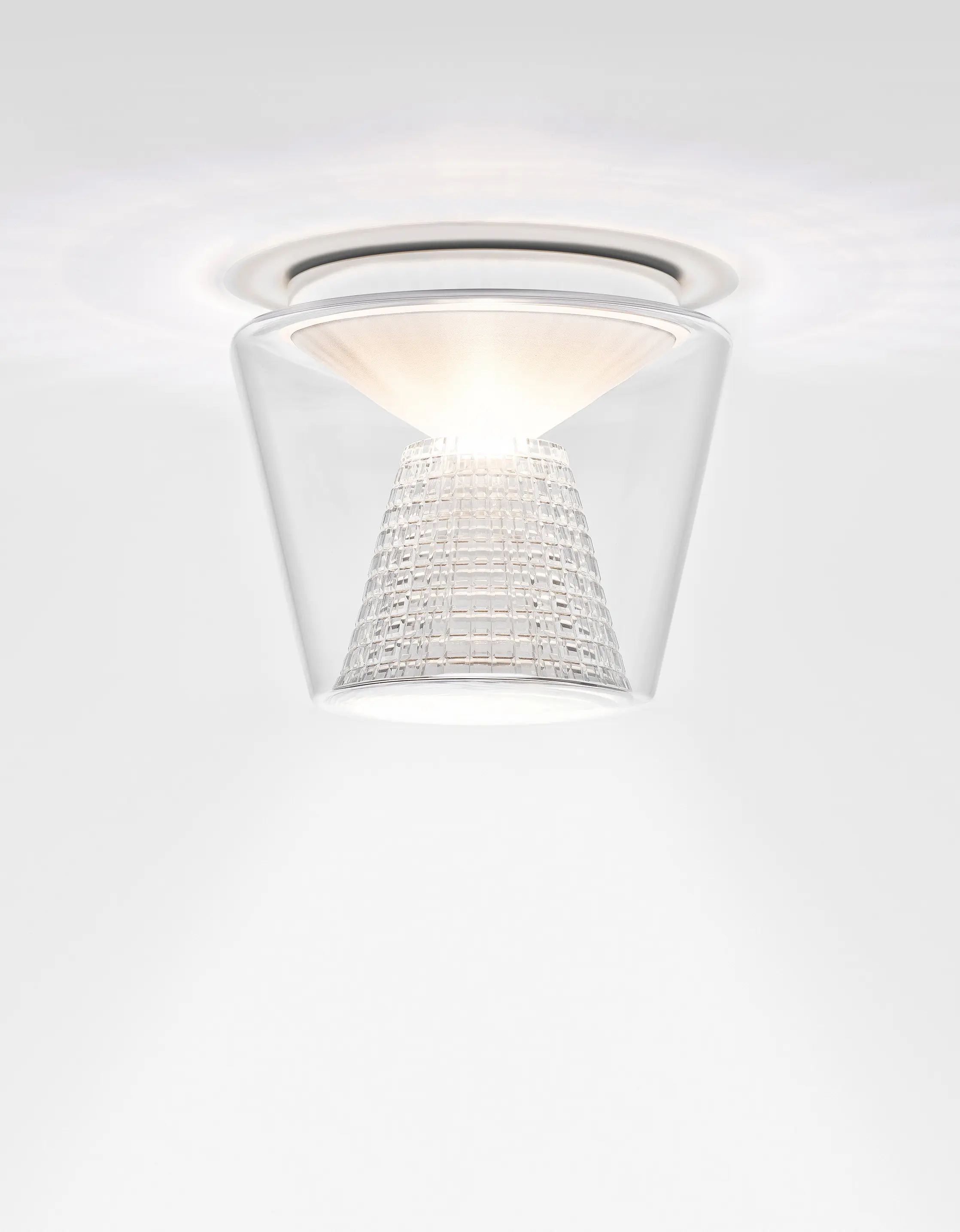

ANNEX LED Ceiling | reflector crystal
Available variants:
Help me find it
- Home/Ceiling lights/
ANNEX LED Ceiling | reflector crystal
About this product
Architonic ID: 1287566
Year of Launch: 2007
Sizes
Ceiling S, M, L
Material
lighting unit: aluminium highly polished and powder coated white RAL 9010
shade: hand-blown glass clear
reflector: crystal glass with aluminium reflector
Light
directed downwards, decorative all around
Lamps
Ceiling S
LED CoB 9 W, 1010lm- 2700K or 1060lm- 3000K, EEI A+
Ceiling M
LED CoB 13 W, 1280lm- 2700K or 1330lm- 3000K, EEI A+ or
built-in LED CoB 27 W, 2290lm- 2700K oder 2370lm- 3000K, EEI A+
Ceiling L
LED CoB 34 oder 41 W, LED-Holder: Zhaga kompatibel, CRI Ra>90, R9>50, EEK A+
other technical versions (CCT/CRI/power) on request
Control
Ceiling S: TRIAC: dimmable with phase dim, depending on lamp
Ceiling M: TRIAC: dimmable with phase dim, depending on lamp, DALI or 1-10 V
Ceiling L: TRIAC: dimmable with phase dim, depending on lamp, DALI or 1-10 V
Features
LED exchangeable, glass shade tool-free mountable
110V version on request
DALI-versions are suitable for the use in emergency lighting systems
Awards / Museums
Internationaler Designpreis Baden-Württemberg, Focus Silber 2011
Designpreis der Bundesrepublik Deutschland, Nominierung 2012
Concept
Perfect ANNEX for any ceiling
A quite archetypal lamp family with that added functionality we place value on: different sizes correspond with the proportions of your rooms. The different reflectors on the inside of the mouth-blown spherical shade enable extremely varied light effects, which nonetheless formally are part of one family.
ANNEX Ceiling can take on various roles as a central ceiling lamp: evenly distributed light throughout the room with a shade made of milky finished glass with no interior reflector. More targeted with a conic milk glass reflector for direct downward light, for rooms and ceilings as well. With an aluminum reflector floors and ceilings are lit gently, increasing the dramatic effect, more brilliantly with a faceted crystal glass reflector.
Suited for the standard fittings on most ceilings, ANNEX is designed and conceived to ensure it is highly versatile.
A standardized replacement system allows an easy replacement of the LED unit. Given the long life of the luminant ANNEX LED is also an ideal choice for non-residential use.
This product belongs to collection:
Specifications
Material
Glass
Variants
1
You can visit the product page for these variants—just click on them!
Certifications & sustainability
ANNEX KOE 20190326
Downloads
10
Explore the serien.lighting catalog collection.
