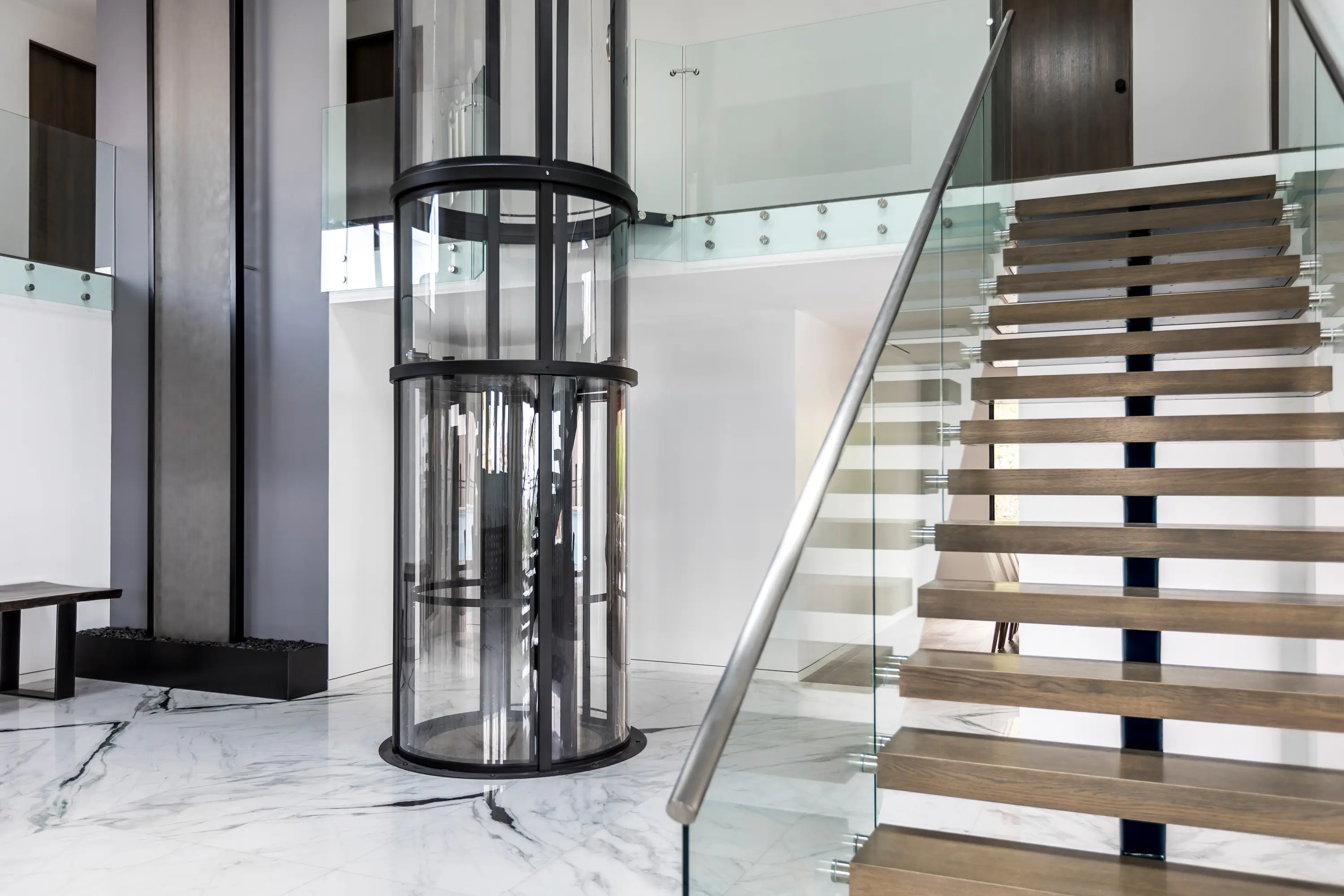

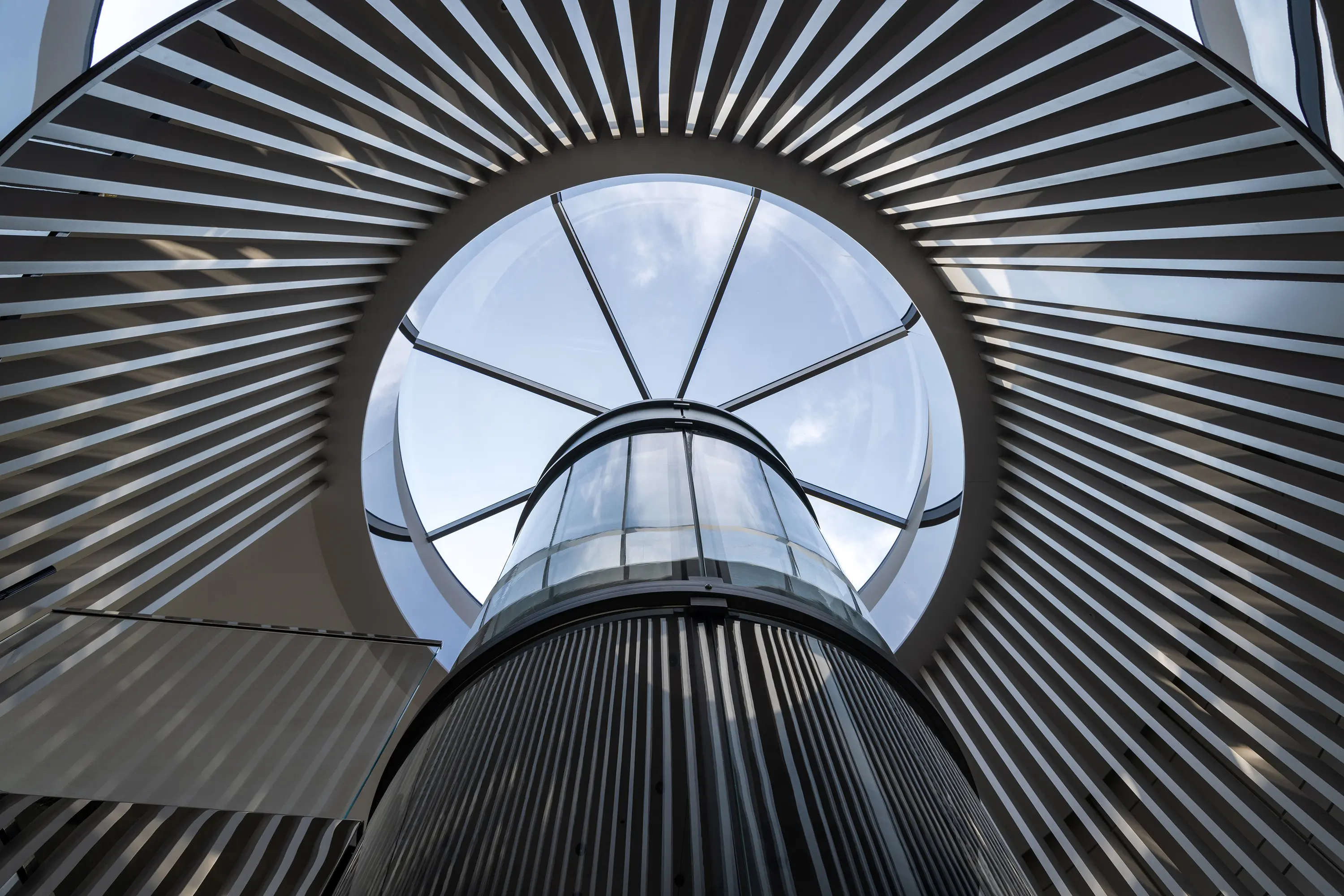

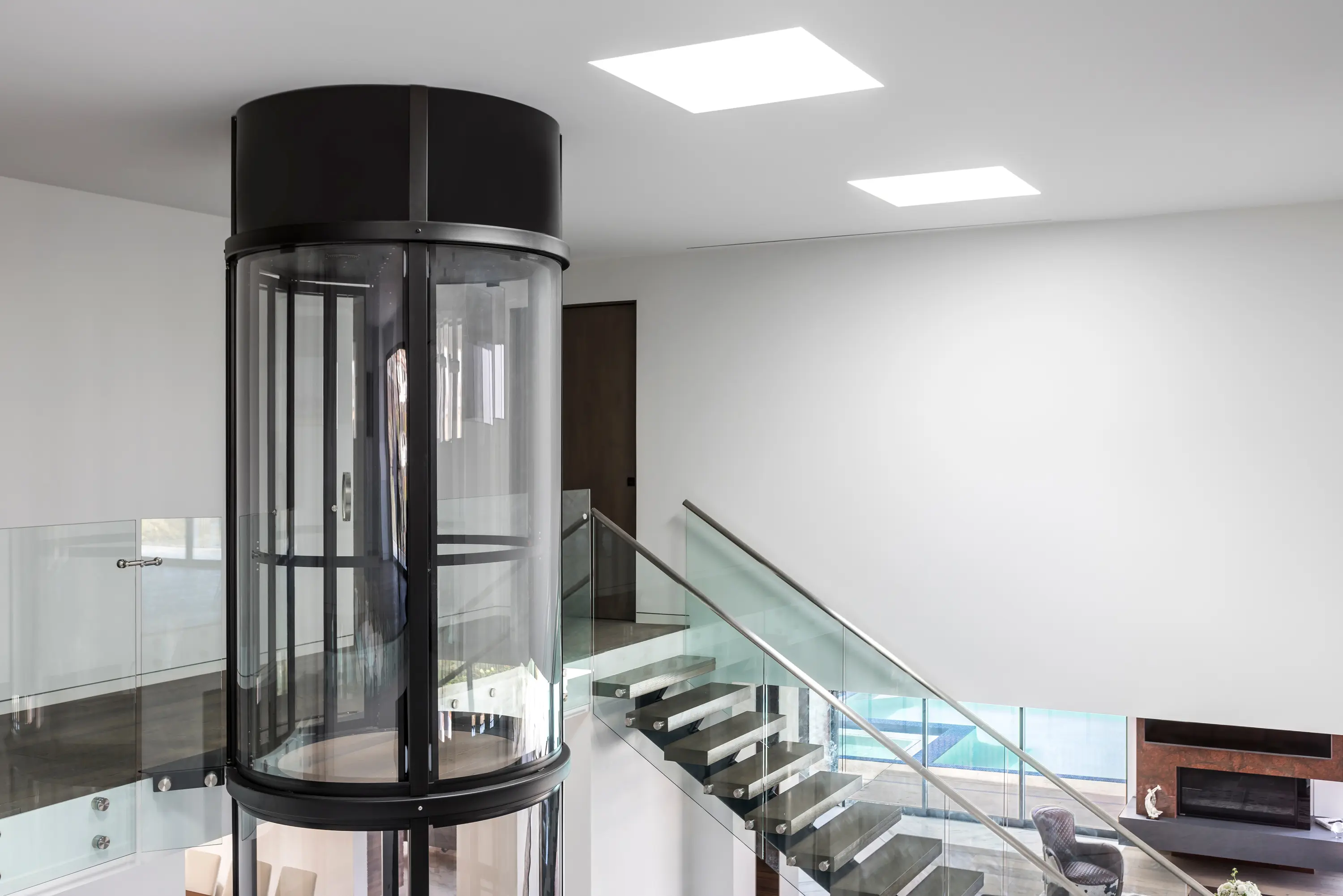

Vuelift® Round+ Glass

Pit Depth- 102–305mm (4"–12")

Optional Short Cab- No

Cab Configurations- Type 1 (same side), Type 2 (opposite side), Type 3R (90-degree), Type 6 (three entrances)

Cab Gate Type- Automatic Bi-fold Gate

Cab Floor Area- 1.4 sqm (15sq.ft.)

Cab Gate Clear Opening- 686mm +/- 13mm (27" +/- 0.5"

Cab Height- Standard Car- 2133mm (84")

Overhead- Standard Car- 2743mm (108")

Cab Height- Optional Car- 2032mm (80")

Overhead- Optional Car- 2641mm (104")

Cab Height- Short Car- N/A

Overhead- Short Car- N/A

Hoistway Footprint- Acrylic Glass- 1483mm (58.375")

Pit/Thru-Floor Cutout- 1502mm (59.125")

Balcony/Header Ring- 1543mm (60.75")

Pit/Thru-Floor Ring- 1654mm (65.125")

Clear Cab Size- 1350mm (53.125")

Capacity- 431kg (950lb)

Nominal Speed- 0.2m/s (40fpm)

Motor Size- 3.5KW (5HP)

MRL Option (Controller in Header)- No

Power Supply- 230V/1PH/50–60Hz (30 amps) and one 120V/1PH/50–60Hz (15 amps).

Maximum Travel- s 15.2m (50ft), 16.7m (55ft) with variance, and up to 6 stops

*North American specifications shown. Please consult your local authorized installer or visit Vuelift.com
