Walk Lat

Walk Lat, the adapted modern

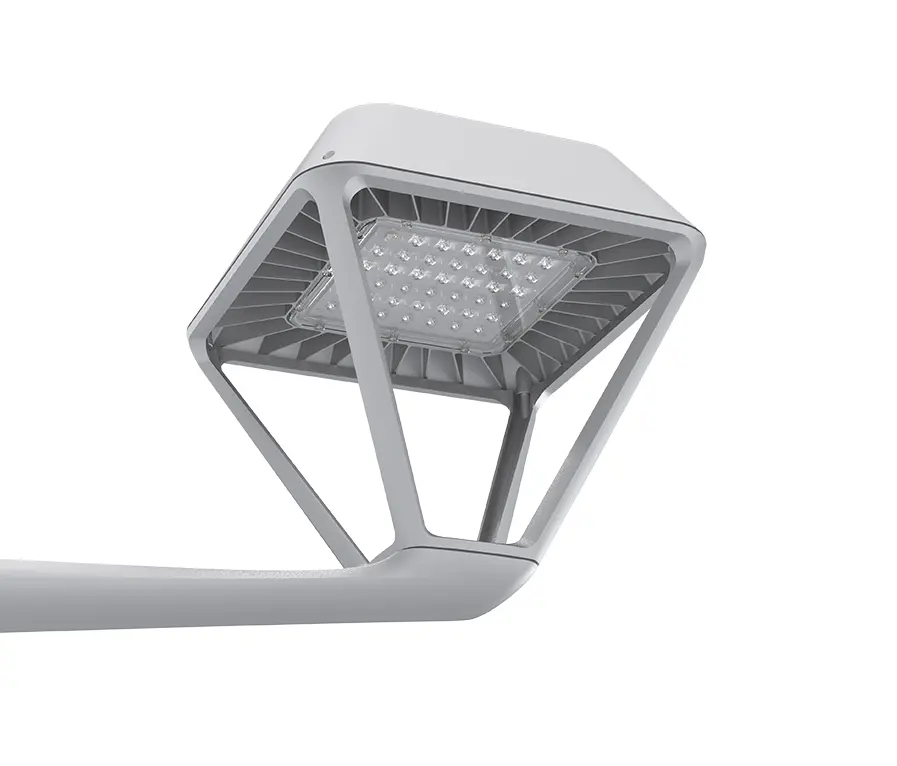

The WALK luminaire is an update of the classic four-sided luminaire, elegant and adapted to the urban environment.

A luminaire that won't leave you indifferent

Ideal for illuminating streets, avenues, pedestrian areas, residential areas, parks and gardens

Electronic efficiency > 90%.

IP66 | IK08 (optical group IK10)

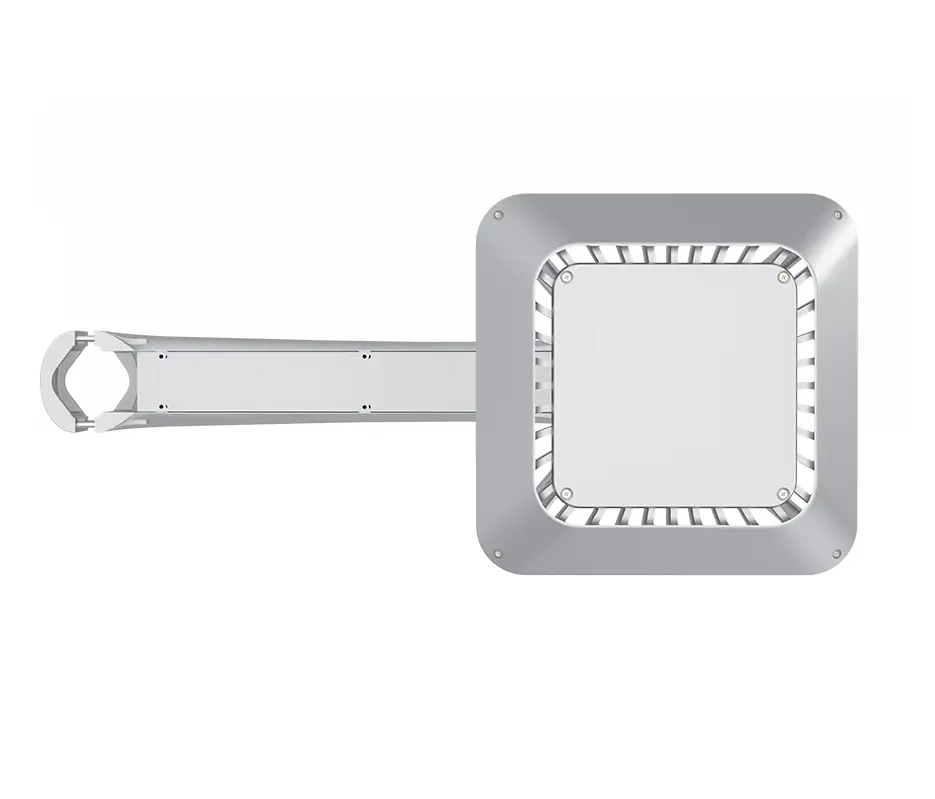

Lateral fixing, LAT, by means of clamp and cast aluminium arm.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Consisting of body, top cover and fixing structure in aluminium alloy type EN AC 44300 with low copper content. Access to the equipment through the top cover, fixed to the body with M6 captive screws and silicone sealing gasket.

For installation from 4 to 6m high.

Characteristic dimensions: 430 x 430 x 550 mm.

Maximum power 190W

Maximum flux 27800lm.

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 15Kg.

IP66

IK08 (optical group IK10)

FHS < 0,1%.

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

S30T

F1M6

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1

S50M

P225

P245
