Palacio Sus

Palacio Sus, the majestic

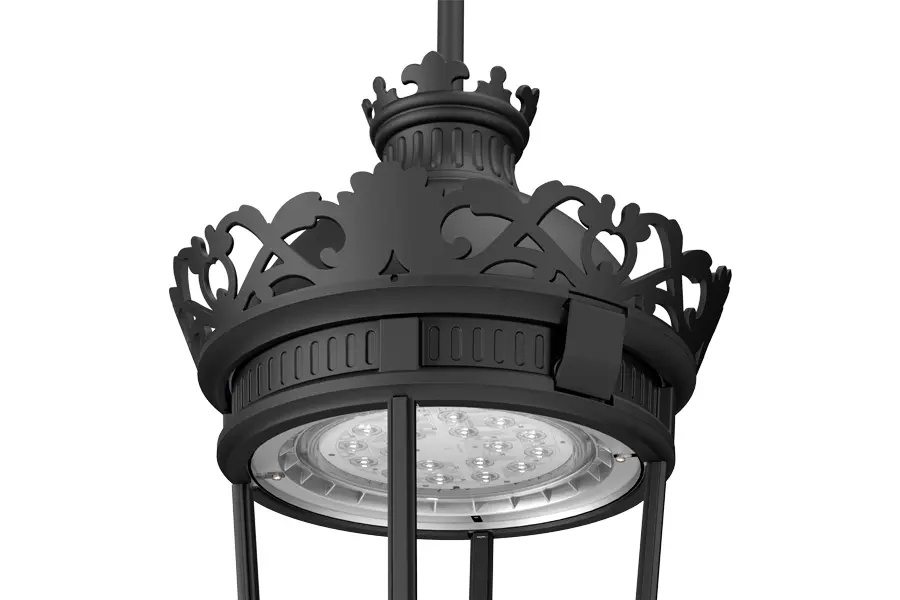

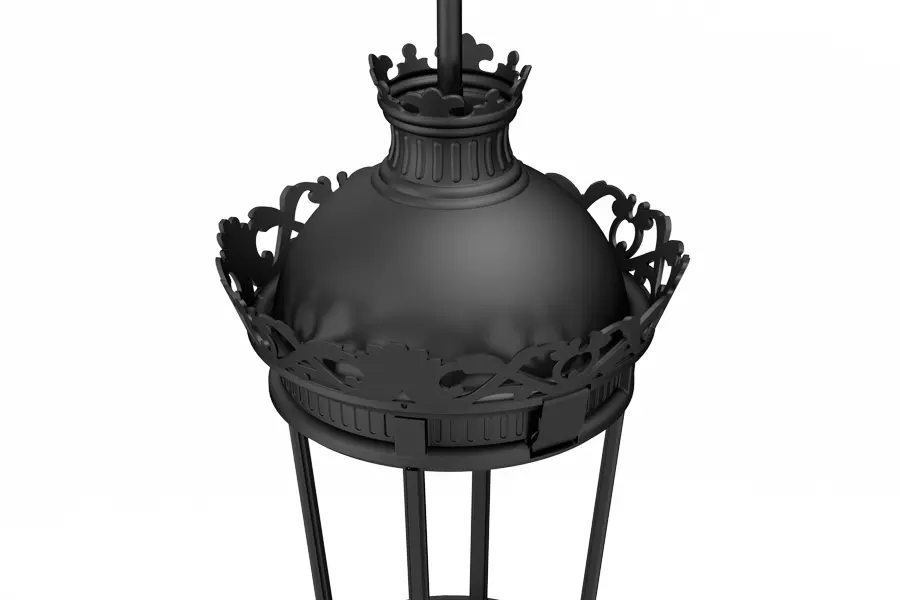

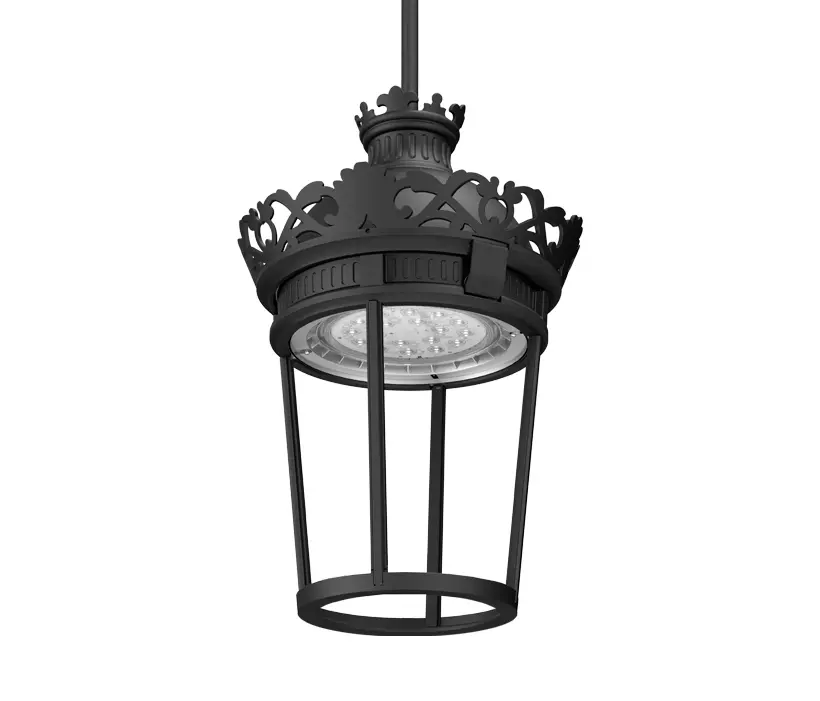

Efficiency with a majestic appearance. Luminaire made 100% in cast aluminium with two closing possibilities; flat diffuser that leaves the ribs open or polycarbonate diffuser that replaces the old glass sheets.

A luminaire that won't leave you indifferent

Ideal for illuminating streets, avenues, pedestrian areas, residential areas, parks and gardens

Electronic efficiency > 90%.

IP66 | IK09 / IK10

Vertical fixing to Ø60 mm tube. Optional: vertical fixing to 3/4" threaded terminal or suspended fixing.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Compuesta de cuerpo, tapa y estructura en fundición de aluminio EN AC-44300 de bajo contenido en cobre (<0.1%). Cierre/apertura manual para un mantenimiento sin herramientas, varilla telescópica de acero inoxidable de seguridad que mantiene la tapa abierta durante las operaciones de mantenimiento y junta de estanqueidad de silicona.

For installation from 4 to 8m high.

Characteristic dimensions: 850 x Ø465mm.

Maximum power 125W

Maximum flux 19700lm.

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 13Kg.

IP66

IK09 / IK10

FHS < 0.1% (Cierre lenticular y vidrio plano).

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

F1T2

F2T1

F3T3

F3T4

F4T1

F5T1

F1M6

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1
