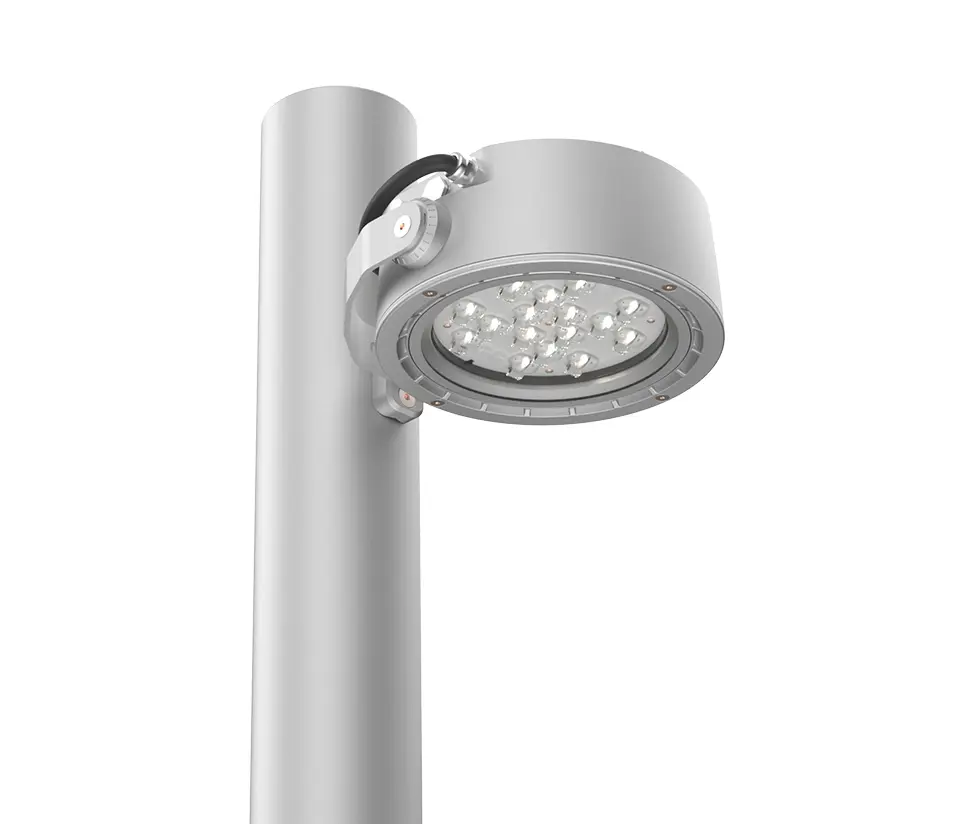

Circus S Lira

Circus S Lira, small in size, big in possibilities.

A luminaire that won't leave you indifferent

Ideal for illuminating streets, avenues, residential areas, parks and gardens, pedestrian areas.n

Electronic efficiency > 90%.

IP66 | IK09

Lateral fixation with capacity to orient the luminaire in 2 axes. Connection to Pole by means of specific terminal threaded to Pole.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Compuesta por cuerpo, tapa superior y fijación de fundición de aluminio EN AC 44300 de bajo contenido en cobre (<0.1%). Luminaria suministrada con cable para evitar manipulación del equipo, posibilidad de acceso mediante tornillos imperdibles M5 sujeto a condiciones de garantía.

To install from 3 to 8 m

450 x Ø240x 100mm

Maximum power

Maximum flow

AC 220 V- 240 V ~ 50/60 Hz

Approx. weight: 3Kg.

IP66

IK09

< 0.1% (Cierre lenticular y vidrio plano)

Minimum 70

Class I / Class II optional.

L90B10 > 100,000 h (consult according to LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1

S50M

P225

P245
