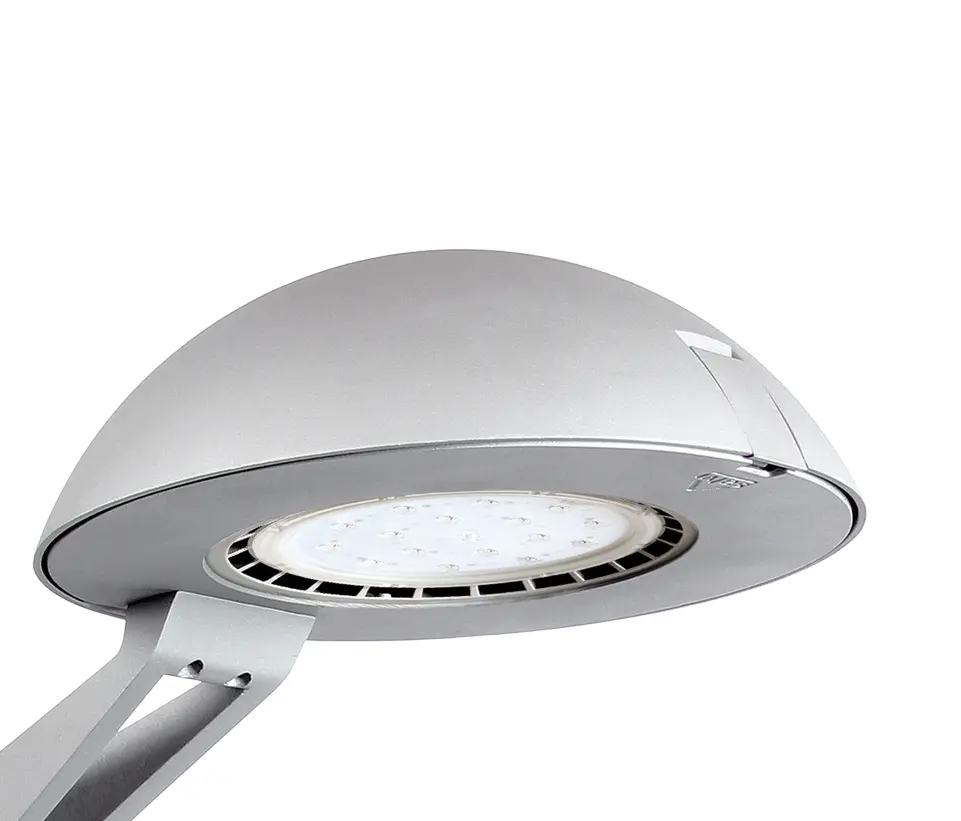

Basic S Lat

Basic S Lat, the attractive essential

Luminaire with an essential design that gives it a versatile and attractive minimalist appearance. It offers a multitude of possibilities and versions adaptable to all types of public lighting. Because the greatest achievements start with simple things.

Electronic efficiency > 90%.

IP66 | IK08 / IK09 / IK10

Lateral attachment by means of 2 M8 screws to short, medium or long arms.

Their specifications are the key

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Consisting of body, top cover and fixing in cast aluminium EN AC 44300 with low copper content, hinge with stainless steel shaft between cover and ring integrated in the cast iron guaranteeing excellent robustness. Manual closing/opening for tool-free maintenance, telescopic stainless steel safety rod to keep the cover open during maintenance operations and silicone sealing gasket.

For installation from 4 to 12m high.

Characteristic dimensions: 370 x Ø490 mm.

Maximum power 125W

Maximum flux 19700lm.

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight (depending on arm): C-10/M-10.5/L-13.5 Kg.

IP66

IK08 / IK09 / IK10

FHS < 0.1% (Cierre lenticular y vidrio plano).

CRI minimum 70.

Class I / Class II optional.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

F1T2

F2T1

F3T3

F3T4

F4T1

F5T1

F1M6

F2M2

F2MD

F4M2

F4MC

F4MD

F5M1
