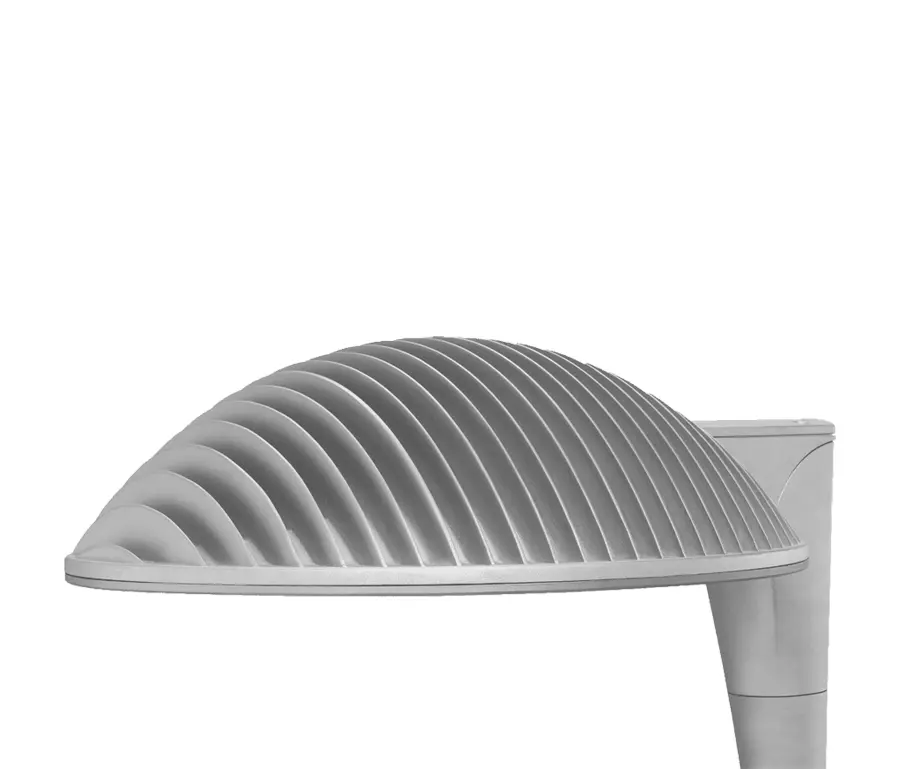

Anima Top Hor

Anima Top Hor, the high efficiency

LED luminaire unique in its category. Thanks to its exclusive 3D LED patent, it permits obtaining different photometries, minimum glare and uniformity. The high efficiency of its LED (up to 130 lm/W) and its heat dissipation system make it one of the most efficient luminaires for use in public lighting.

A luminaire that won't leave you indifferent

Ideal for illuminating streets, avenues, residential areas, car parks, large areas, sports and industrial spaces

Electronic efficiency > 90%.

IP66 | IK09

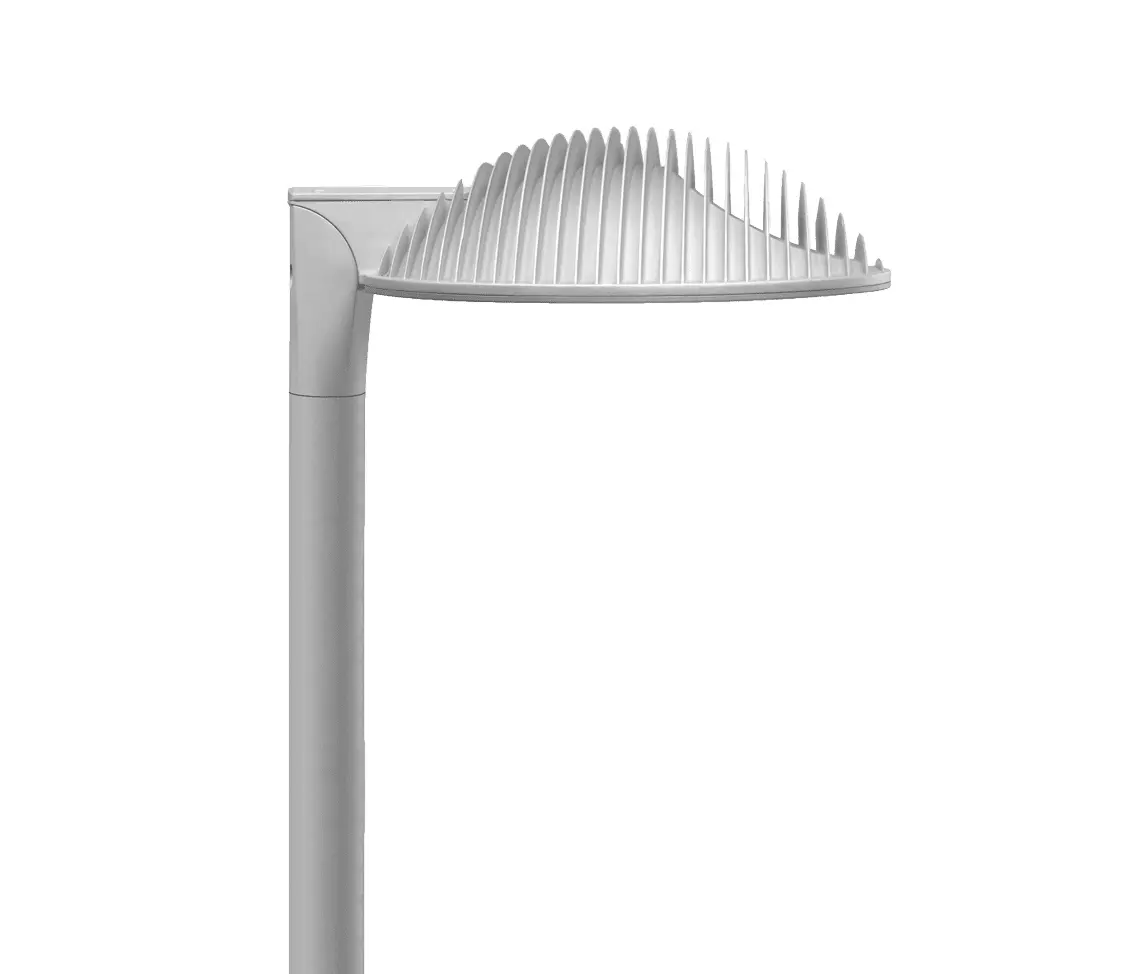

Horizontal or vertical mounting. Female end connection: ØINT M60- ØEXT M76.

Their specifications are the key

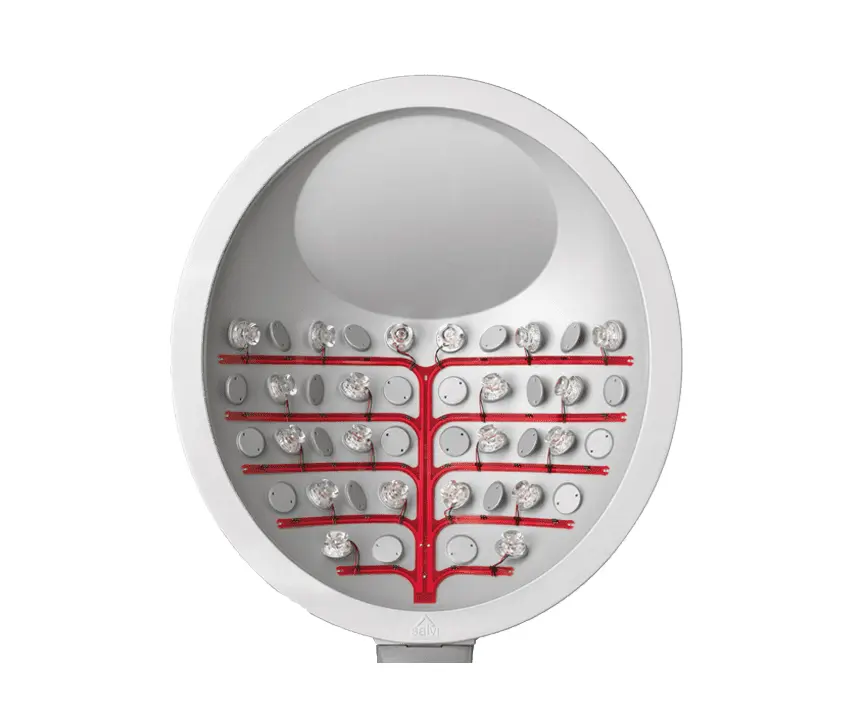

Monobloc lenses: Ensure better photometric accuracy

Aluminium: anti-corrosive with a copper content of less than 0.1%.

Painting: The paint complies with EN 12944 C4 High Durability

Reflector: Improves efficiency, uniformity and light intrusion

Locking system: for tool-free maintenance

Threads: stainless steel

Product life: based on the environmental conditions of the project

Valve: pressure compensator. Eliminates interior humidity

Space: independent for electronics

Silicone gasket: Sealing gaskets made of resistant silicone

Guarantee: The product is adapted to the needs of the project

Glass: ultra-transparent. Improves efficiency by up to 10%.

Developments: The luminaire adapts to technological change

Disconnector: of current. Protects the installer

Smartec: Luminaire pre-equipped for Smartec remote control

Circular distribution: Optimises heat dissipation

Telescopic rod: Risk-free maintenance

Anti-reflective: Anti-reflection treatment. Improves efficiency by up to 5%.

Some technical details

Luminaire comprising upper dissipating body and mounting made of cast aluminium EN AC 44300 with low copper content. Access to the connection terminals housing through a cover fixed by M6 captive screws and silicone sealing gasket.

For installation from 6 to 12m high.

Characteristic dimensions: 270 x 455 x 585 mm.

Maximum power 180W

Maximum flux 23200lm.

AC voltage 220V-240V ~ 50/60Hz.

Approx. weight: 11,5Kg.

IP66

IK09

FHS < 0,1%.

CRI minimum 70.

Class III.

Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).
