Rio Sub 1
Share
- Home/Outdoor wall lights/
Rio Sub 1
About this product
Architonic ID: 1409104
Year of Launch: 2016

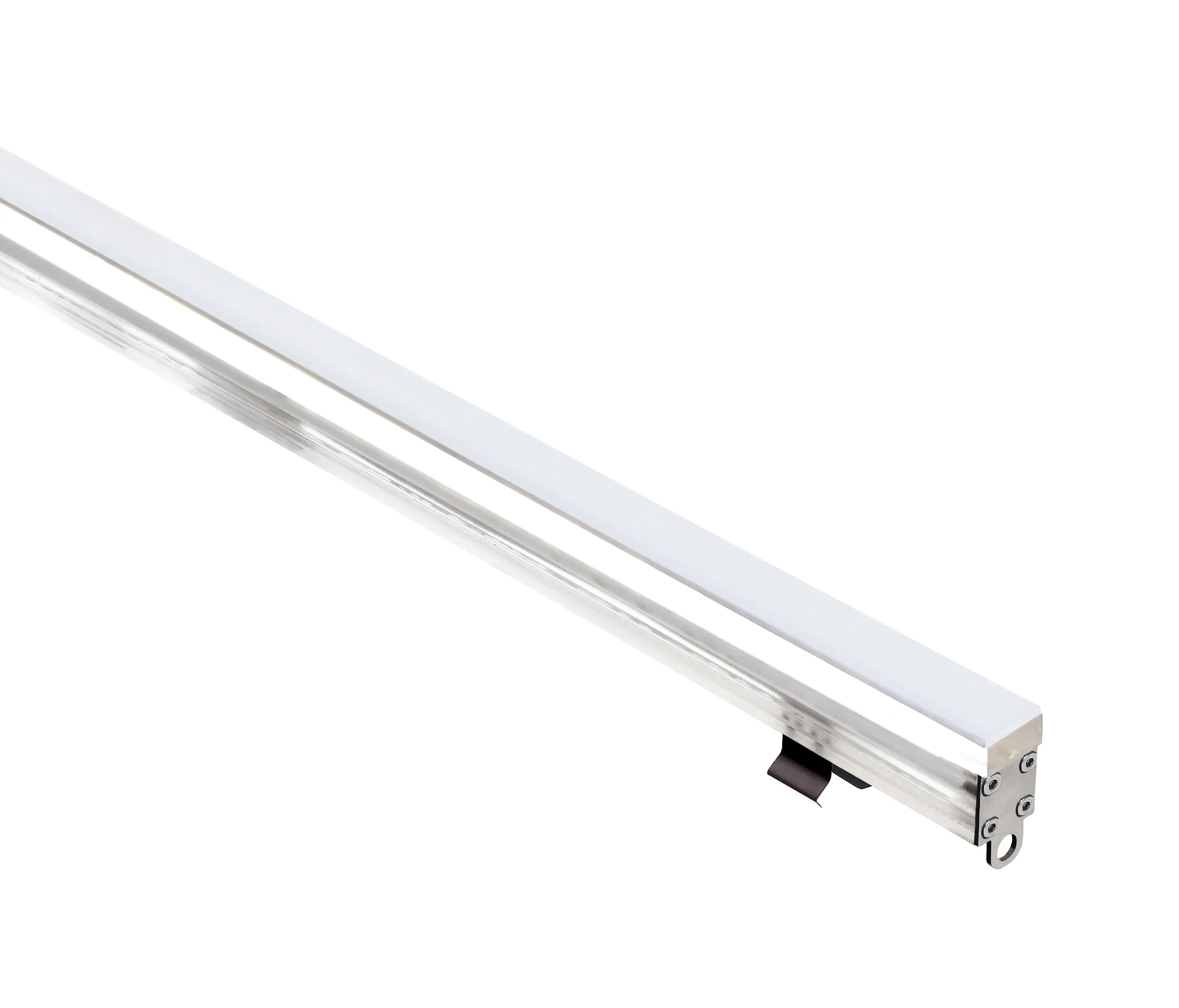

Linear profile for outdoor and underwater applications; recessed (wall, ground), max depth 10 m; body in stainless steel, screen in PMMA; SMD low power LEDs; RGB: SMD full colour LED; 6W, 12W- 24Vdc; RGB: 8,5W, 17W- 24Vdc; total delivered lumens: 140 lm, 280 lm (2800K), RGB: 100 lm (R: 22 lm, G: 64 lm, B: 14 lm), 200 lm (R: 44 lm, G: 128 lm, B: 28 lm); diffuse optics; LED colour: white- 2600K, 2800K, 3700K; RGB; ingress protection: IP68; impact resistance: IK10; equipped with IPS; appliance class: III; weight 0,70 kg/m; dimensions 510/1010x38x37 mm
Concept
Recessed linear profile with diffuse light for outdoor applications, drive-over up to 5000 kg. The fixture can be installed in the ground, walls and ceilings using the special outer casing and installation kit.
Available in different standard lengths up to 2010 mm and customized lengths, with either white or RGB light. No dark zone between fixtures installed side by side.
This product belongs to collection:
Specifications
Category
General lighting, Pool lights, Strip light systems, Underwater lights
Feature
LED lights, RGB lights, Underwater lights LED
Usage
Outdoor / Garden, Sports / Leisure, Urban space
