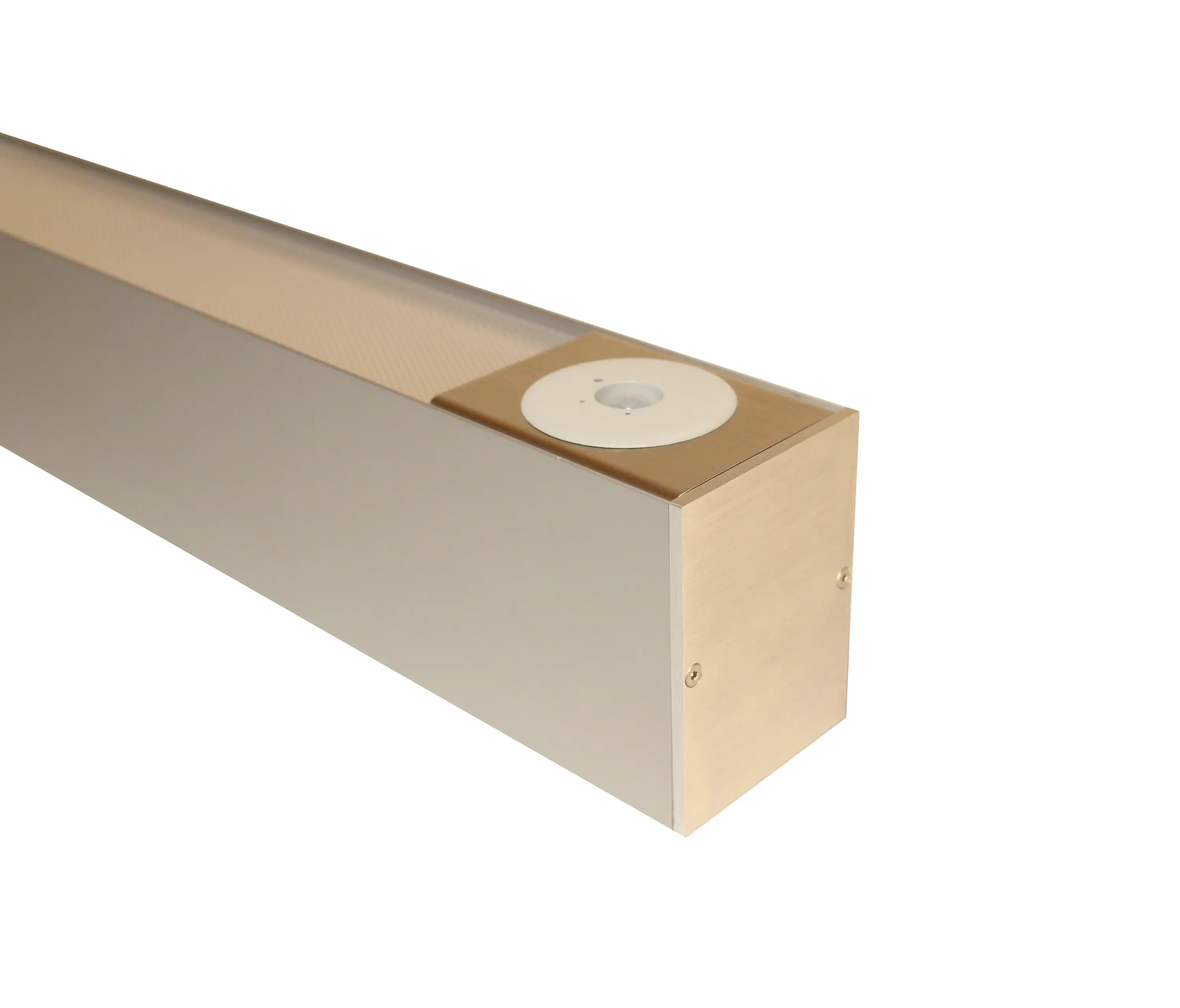

Systemkanal HL

Redwood 2-channel LED-luminaire for Data Centers

Efficient LED lighting channel | two diffusor options: standard frosted or microprism diffusor | LED color temperature 4100K or 5300K selectable | mounting to unistrut or other systems via M8 thread nuts on backside |two channel Redwood luminaire | integrated sensor and transponder for direct connection to the Redwood Engine | CE | UL pending

SPECIFICATIONS

Dimensions: 1180 x 50 x 70 mm

Ceiling Types: Mounting to Unistrut Profile P3301T10

Power consumption: typ. 36 W

Connections: 2xRJ45 on Redwood transponder PCB

Colour temperature: 5300 K / 4100 K

Nominal Lumen Output: typ. 3100 lm (Microprism diffuser / 5300 K)

Dimmable via: Redwood System

CRI: > 80

Contents: LED-Channel MP 70 / 50 incl. Diffusor and high perfomance LED stripes, integrated Redwood sensor and transponder

Operating temperature: 0 ˚C … +50 ˚C

Storage temperature: -40 ˚C … +85 ˚C
