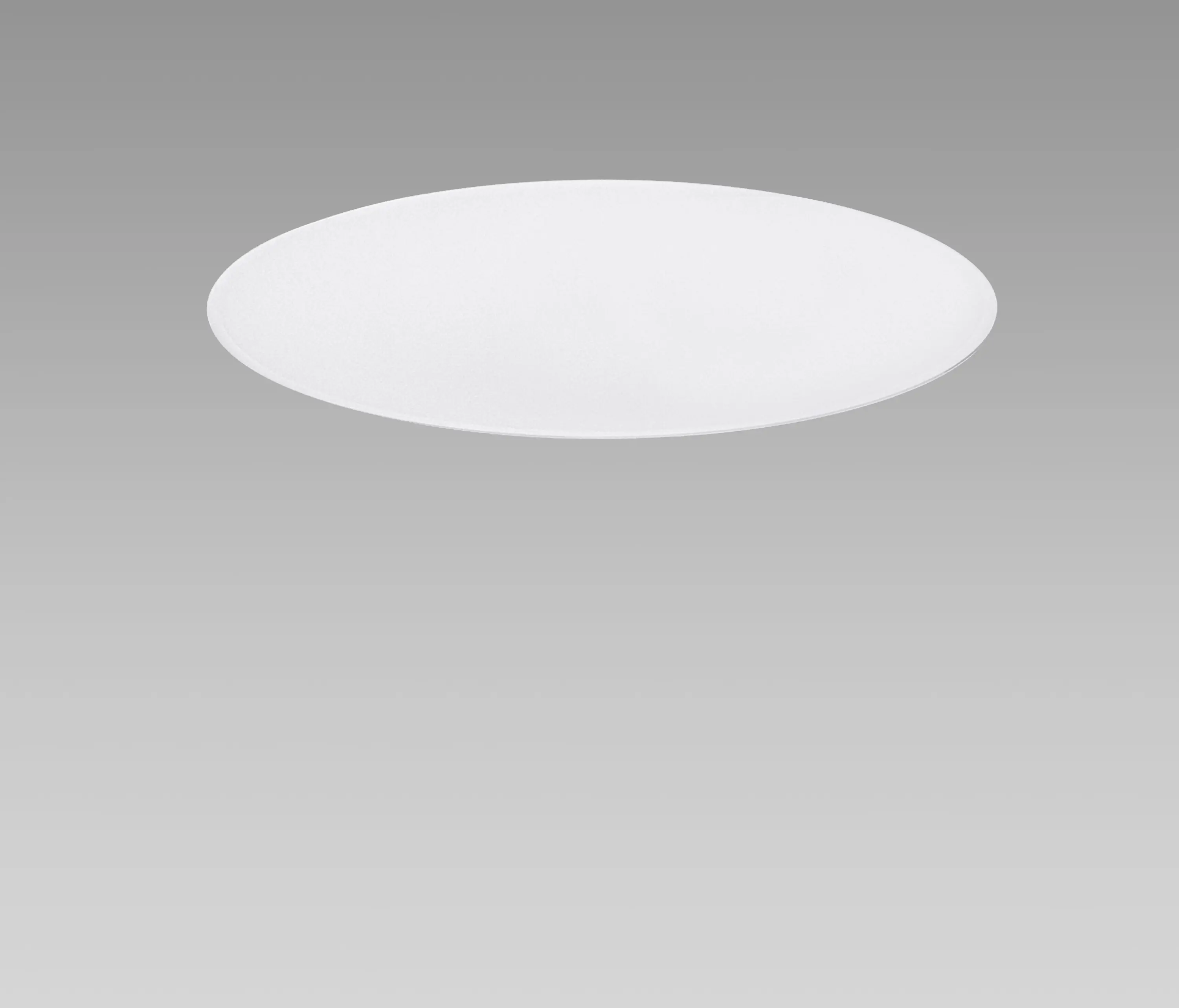

Solo Slim

At a height of just 81 mm, the Solo Slim LED opens up new scope when it comes to recessed mounting. At the same time, the beautifully slimline luminaire excels with a number of inner values: extremely even spread of light, highly efficient, DALI-dimmable, suitable for emergency lighting, and optionally equipped with Tunable White technology to enable the light to be adjusted dynamically. And all contained within a perfect “one-piece” aluminium housing.

FEATURES

Height of frame only 53 mm

one-piece look aluminium housing, first-class workmanship makes for seamless surface

Extremely even spread of light across the opal diffuser

Up to UGR ≤ 22

With or without trim

The metal housing can be recessed directly into the concrete ceiling

Highly Efficient state-of-the-art LEDs

Available with Tunable White – enabling the colour temperature to be adjusted to align with daylight conditions

Neat shadow gap

SPECIFICATIONS

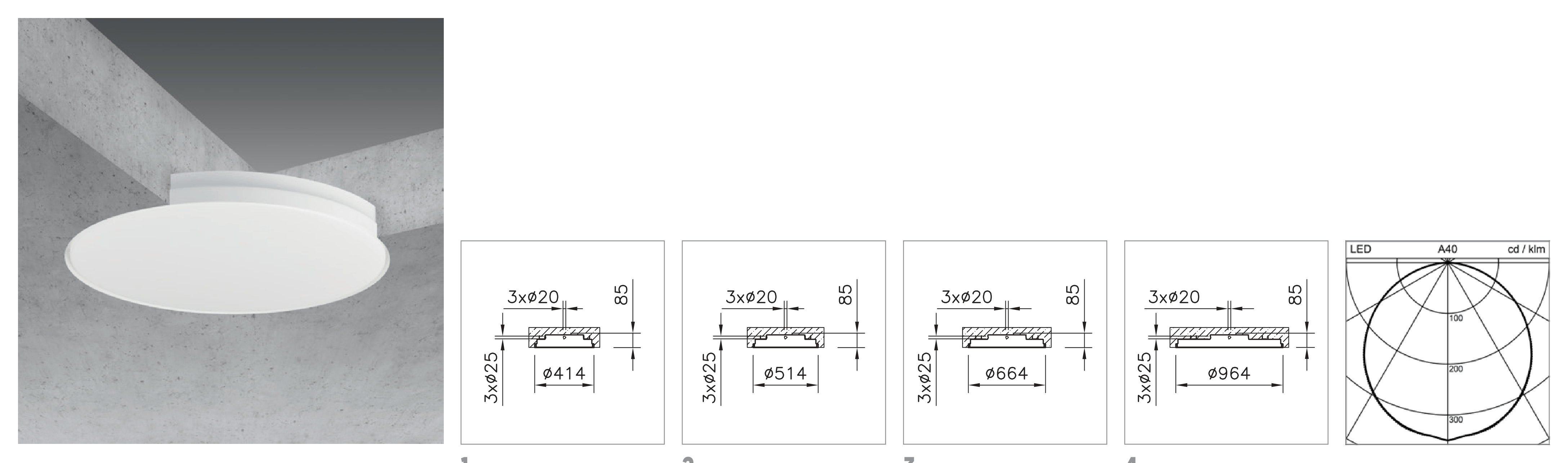

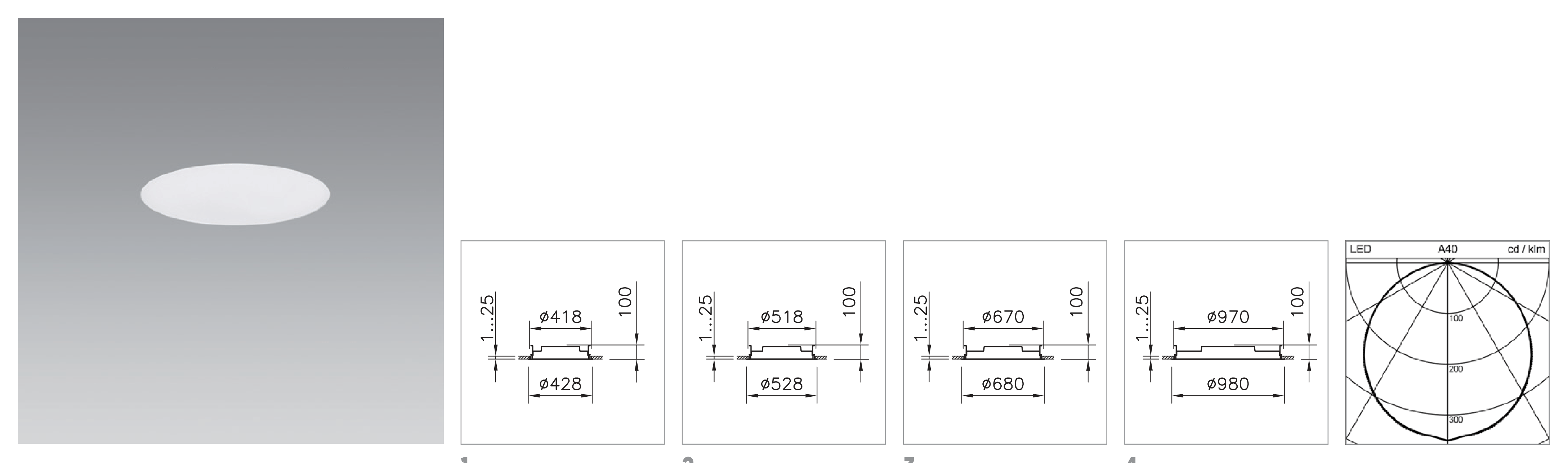

Diameters: approx. 430 mm, 530 mm, 680 mm, 980 mm

Maximum luminance Lmax ≥ 65° ≤ 3000 cd/m2

Luminaire efficiency up to 134 lm/W

Operating unit integrated

Dimmable digital DALI

Suitable for emergency lighting (DC-compatible)

Available with emergency unit

LED board and optics replaceable

IP44 kit optional

Linect® compatible (not when cast in concrete)
