Purelite D

The new generation of row lighting systems: easy to plan with and install thanks to its ultra-flat design with a height of just 35 mm incl. control gear. This means that both the surface-mounted and the recessed versions are extremely easy to integrate into the architecture. The linear lighting system is suitable for office environments and has a luminous efficacy of 2400 lm per 1.2 m. The highly innovative plug-in system already contains wireless through-wiring. Purelite D LED guarantees ultraflat, uninterrupted, shadow-free lines of light and is suitable for application in office environments.

FEATURES

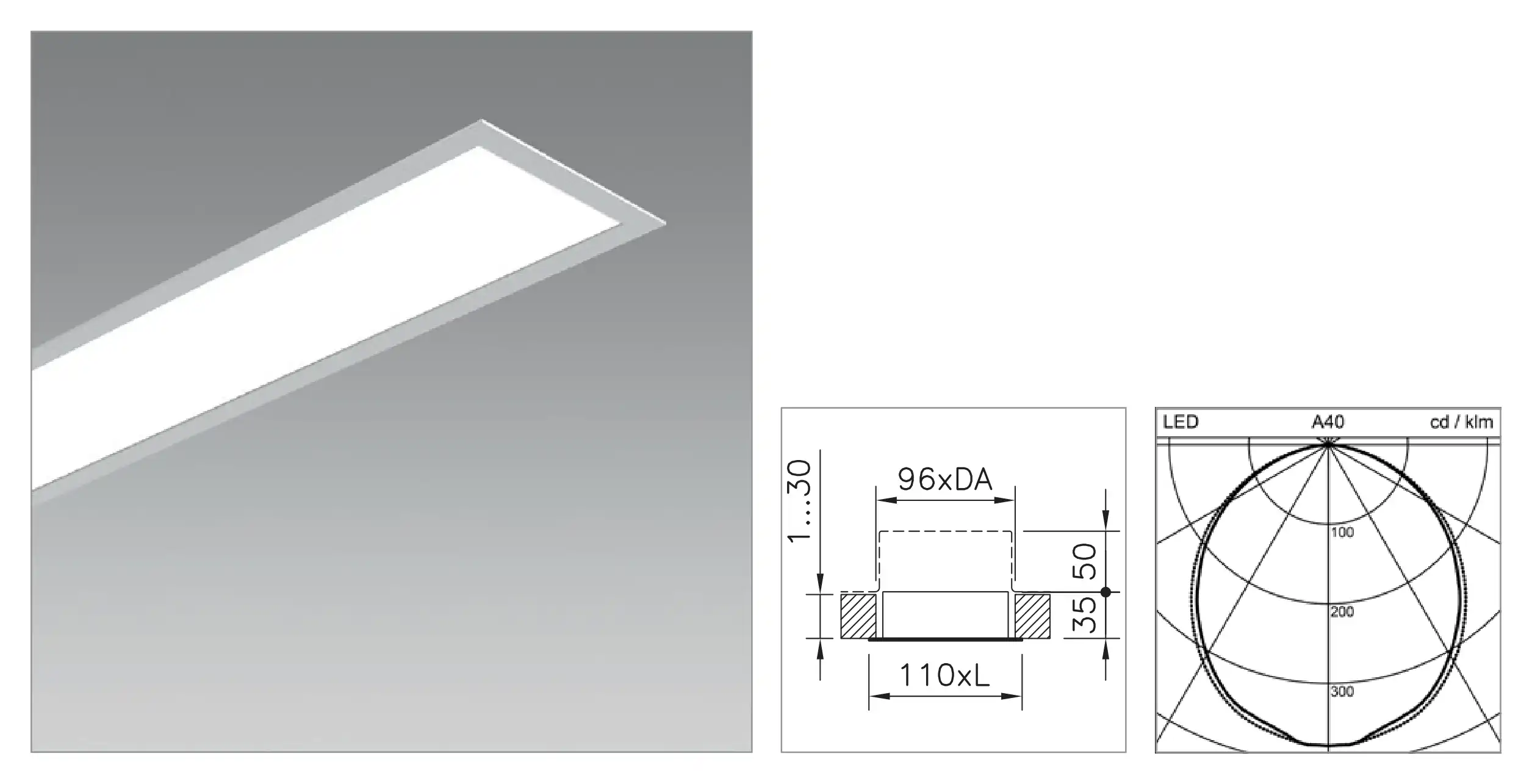

Simple to integrate into the architecture thanks to its ultra-flat design: height of only 35 mm incl. control gear

Shadow-free lines of light, incl. illumination of the ceiling, timeless design

Suitable for application in offices thanks to microprismatic optics with a UGR < 19 at 2400 lm/1.2 m; up to 3000 lm/1.2 m with an opal diffuser

Clip-in LED batten with integrated through-wiring for quick and easy mounting

For mounting in rows greater than 2250 mm, all lengths in increments of 150 mm

SPECIFICATIONS

Support profile made of anodised aluminium, natural finish

LED module can be replaced on site

Direct lighting (version available with omni-directional lighting, incl. illumination of the ceiling – Purelite LED)

Micro-prismatic CLD optics or opal diffuser made of high-grade plastic

dimmable digital DALI + ON/OFF

Support profile with or without trim
