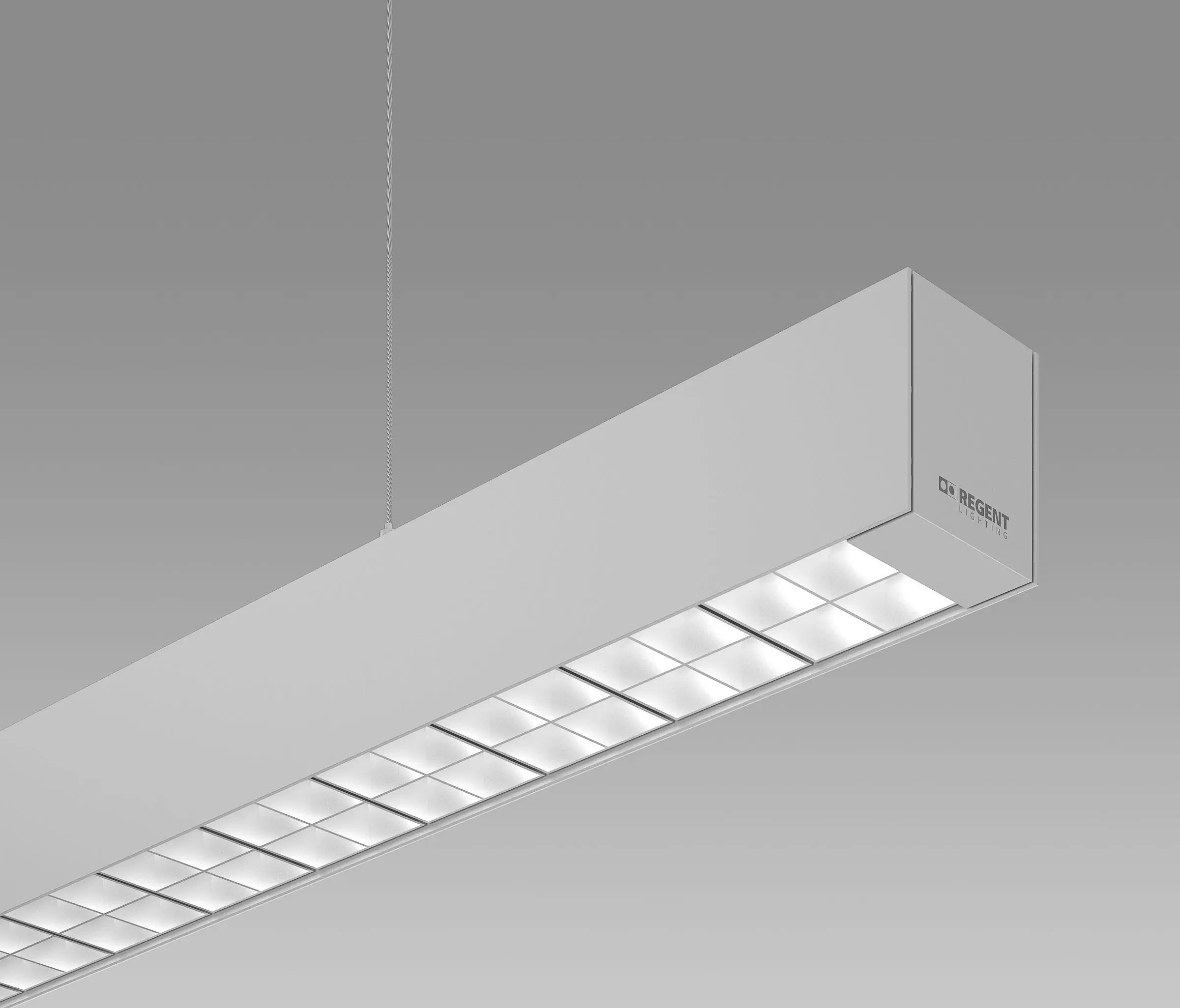

Channel S Up Boost Office

The new Channel S Up Boost-LED pendant luminaire is the more streamlined version of the well-known and popular Channel lighting system. It now delivers additional indirect light and, thanks to its highly aesthetic louvre optic, a particularly high direct light component for efficient office lighting in conformity with standards. Its cross-section is almost 50 % smaller, thus allowing it to be integrated into the architecture even more elegantly. Given its indirect light component and the pleasant way it illuminates the ceiling surface, it contributes substantially to enhancing ergonomics at the workplace and it opens up new opportunities for the lighting design of the space. The luminaire is predestined for delivering optimum lighting for offices of all kinds as well as for numerous other applications. Whether applied as an individual pendant luminaire or as a system – it makes for optimum ambient lighting in any kind of space.

FEATURES

“S” as in slim, “Up” meaning additional indirect light, "Boost" as particularly efficient louvre optics

Aesthetic design, extremely compact dimensions, 65 x 71 mm

Combination of glare control (Boost louvre) plus a high efficieny thanks to a high indirect light component

Suitable for application in offices thanks to microprismatic optics with a UGR = 13; Lmax ≥ 65° ≤ 3000 cd/m²

High luminous flux: up to 3300 lm direct light component per metre

Boost louvre optics guarantee standard-compliant planning acc. to EN 12464-1

Economical overall solution featuring maximum ergonomics for the user

Reduced installation costs

SPECIFICATIONS

Lengths: 1250 mm, 1550 mm, 2450 mm, (3650 mm using system components)

Support profile and end faces made of aluminium, natural anodised

No visible screws

80 % direct light, 20 % indirect light

Dimmable digital DALI

Operating unit integrated

Also available as a system
