Channel S Up

The new Channel S Up channel lighting system is the more streamlined version of the well-known and popular Channel lighting system, and now delivers additional indirect light. Its cross-section is almost 50 % smaller, thus allowing it to be integrated into the architecture even more elegantly. Given its indirect light component and the pleasant way it illuminates the ceiling surface, it opens up new opportunities for the lighting design of the space. The choice of three different optics means that the light line meets different requirements and can be optimally used in different application areas. Whether applied as an individual pendant luminaire or as a system – it makes for optimum ambient lighting in any kind of space.

FEATURES

“S” as in slim, “Up” meaning additional indirect light

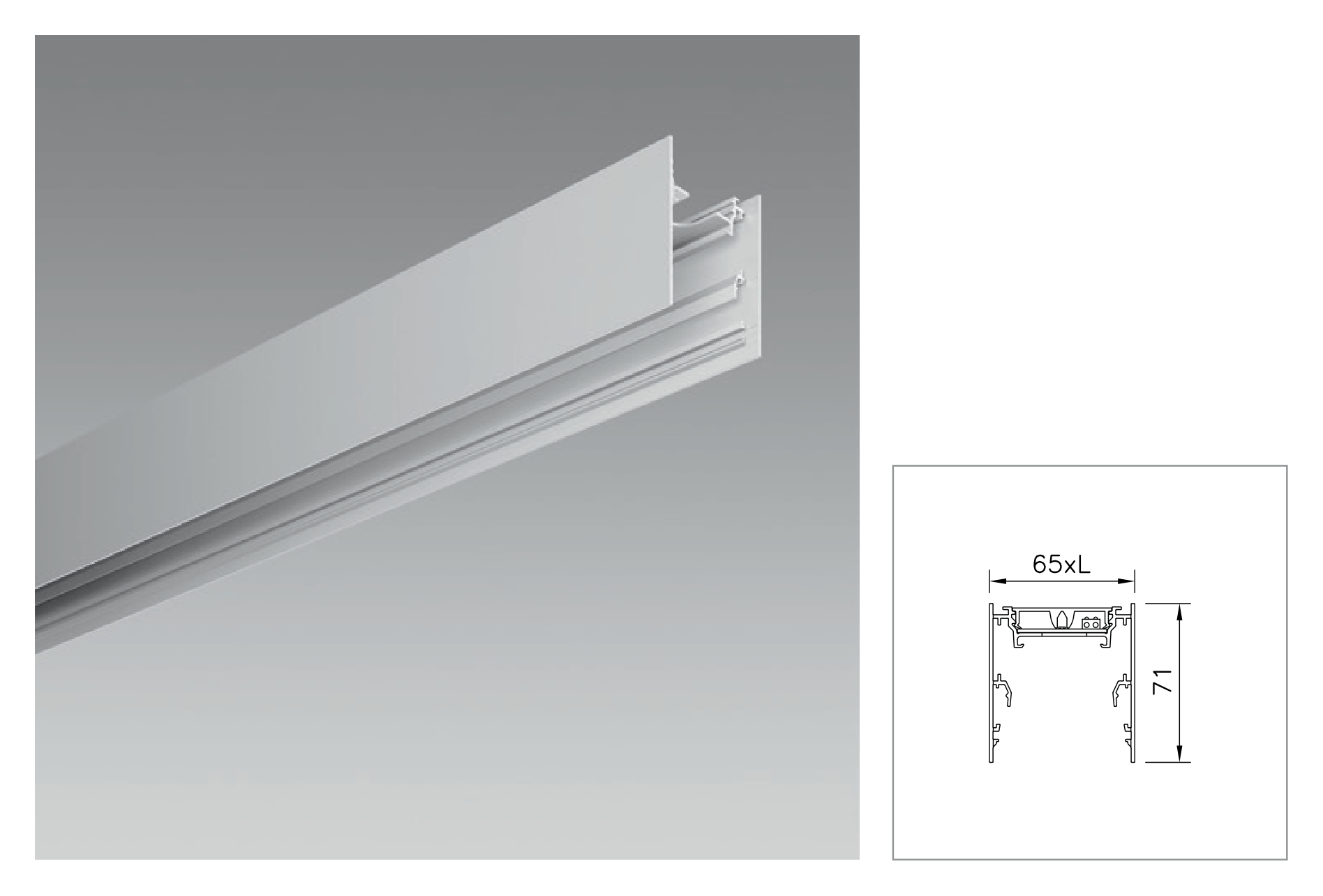

Aesthetic design, extremely compact dimensions, 65 x 71 mm

3 different optics offer the right light for every requirement

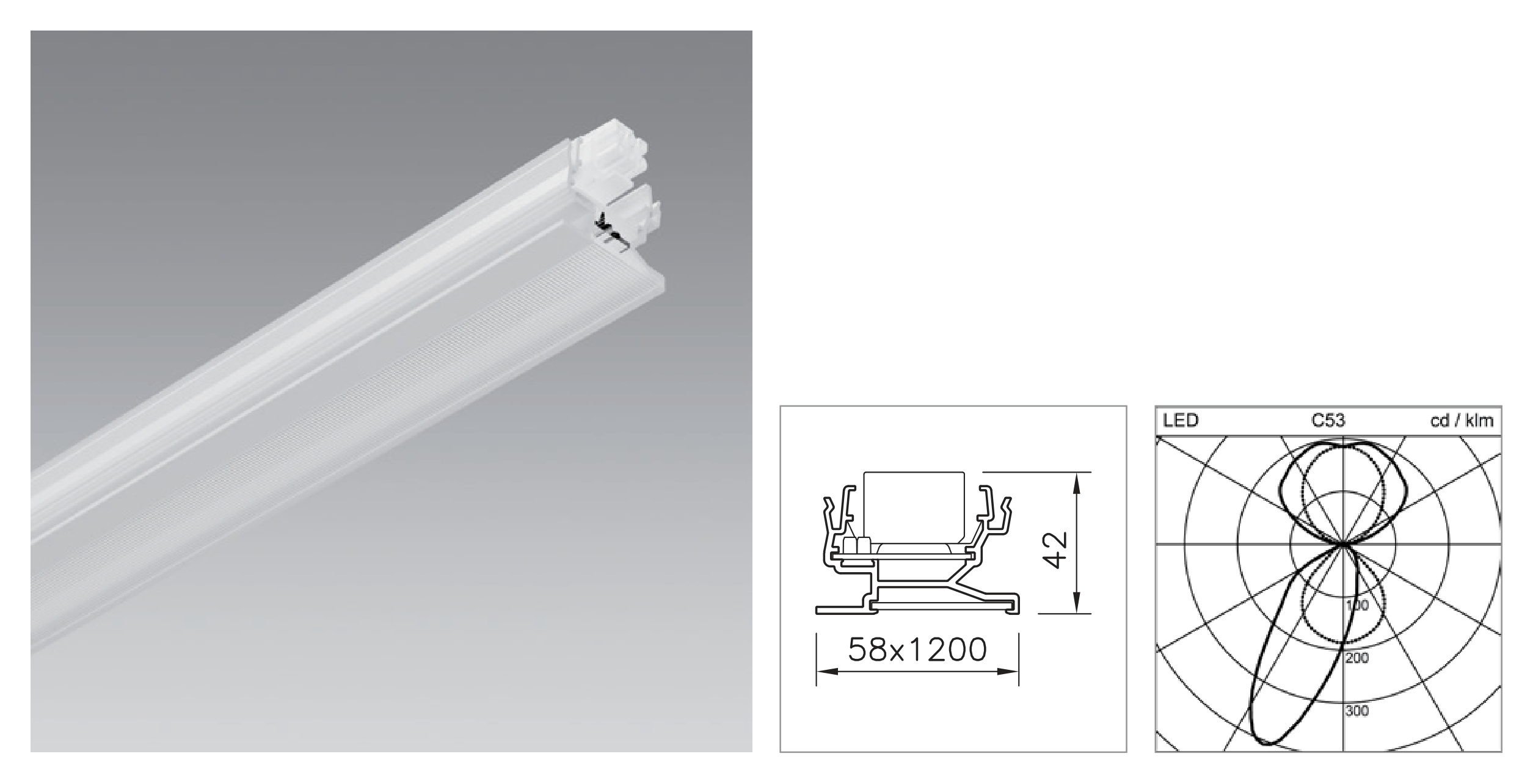

Channel S Up C-LED: microprismatic optics, perfect glare control, shadow-free line of light and compliant planning according to EN 12464-1, 40 % direct light, 60 % indirect light, available as Tunable version (2700 K- 6500 K)

Channel S Up Boost LED: very aesthetic louvre optics optimized for LED, particularly efficient, high direct light component and planning according to EN 12464-1, 80 % direct light, 20 % indirect light

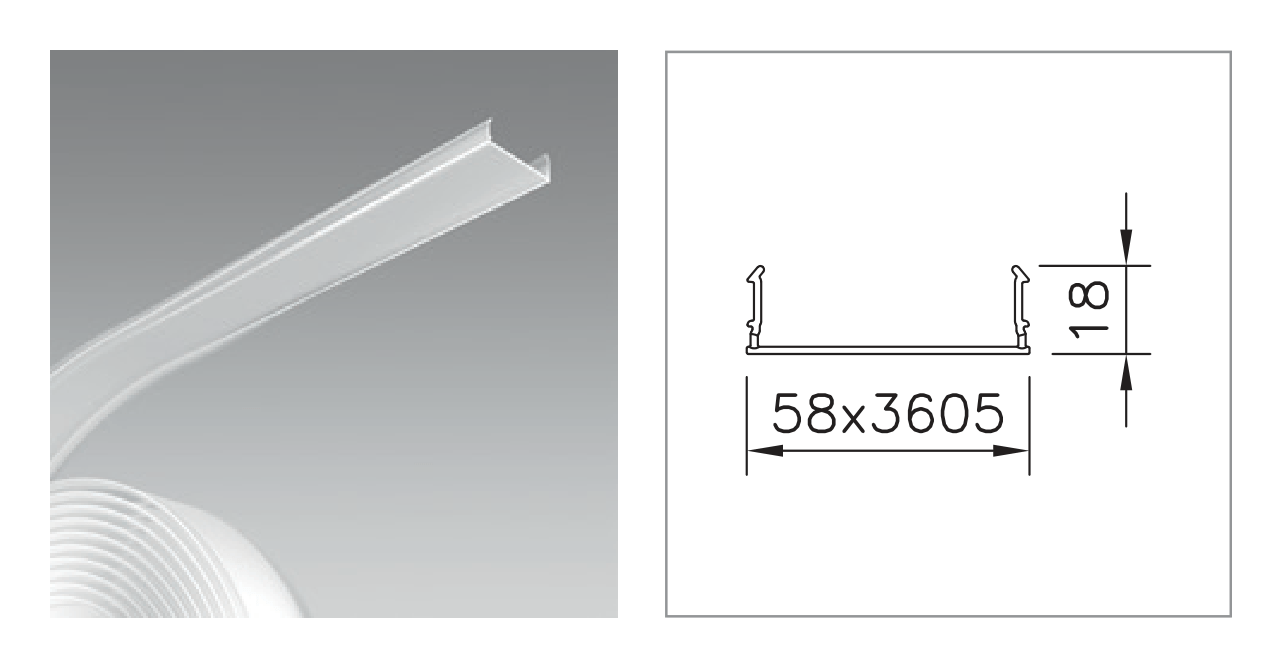

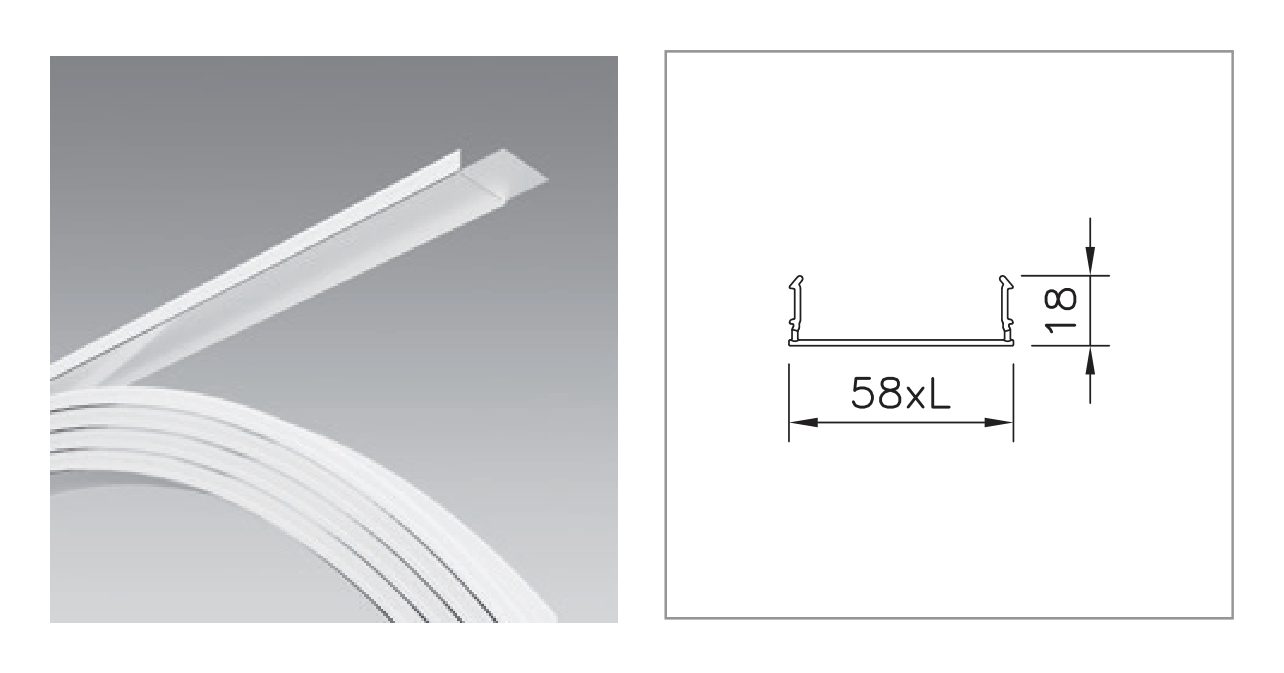

Channel S LED: rollable endless diffusor- can be shortened on site, particularly decorative, continuous and shadow-free line of light until 24 m, 40 % direct light, 60 % indirect light, available as Tunable version (2700 K- 6500 K)

Economical overall solution featuring maximum ergonomics for the user

Reduced installation costs

SPEZIFIKATION

By combining different lengths of track, the system can be extended in sections of 1200 mm

End faces feature expansion compensation, generating a visually seamless, flush-mounted diffuser effect (Channel S Up C-LED and Channel S Up LED)

Lateral surfaces are perceived as seamless thanks to embedded end faces

Support profile and end faces made of aluminium, natural anodised

No visible screws

Dimmable digital DALI

Operating unit integrated

Also available as individual luminaire
