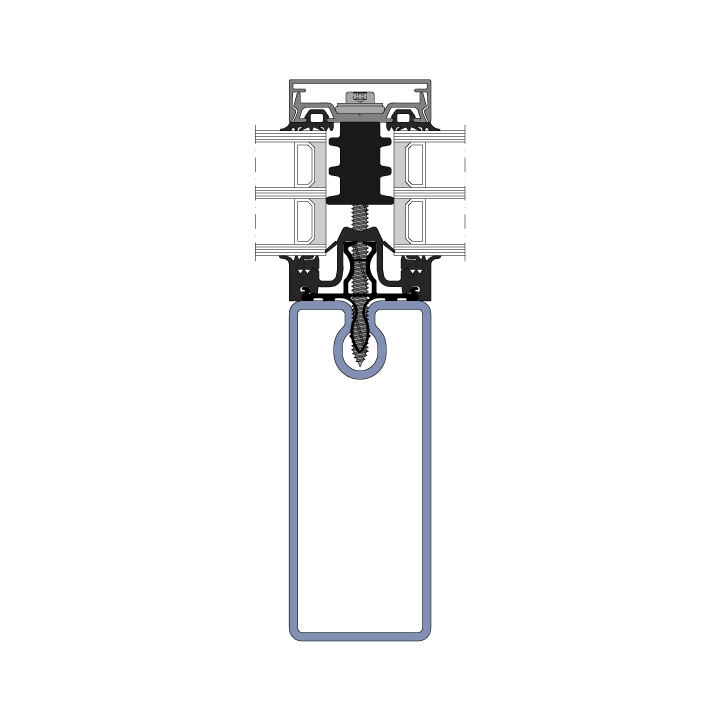

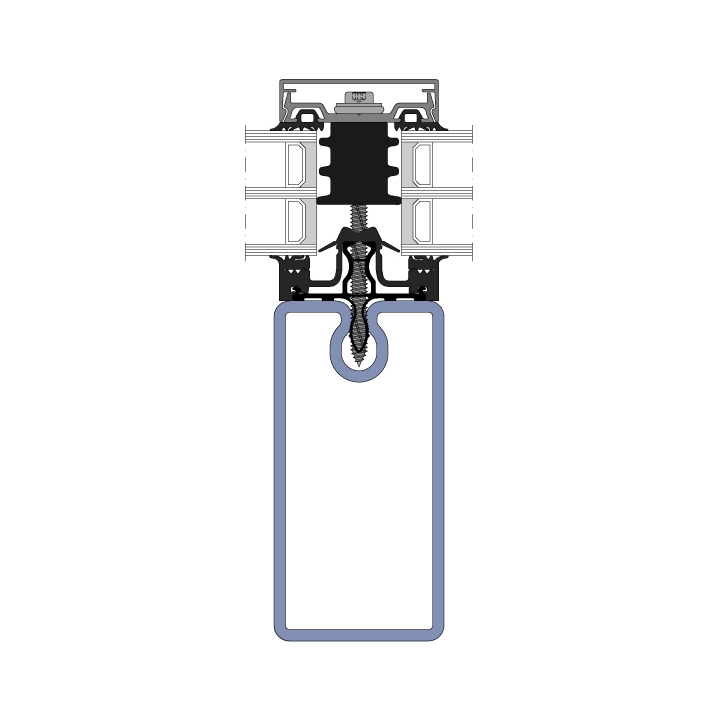

THERM+ FS-I
About this product
Architonic ID: 20749011
Use | Application:
- vertical facade
- glass roofs
- suitable for high static requirements
Characteristic:

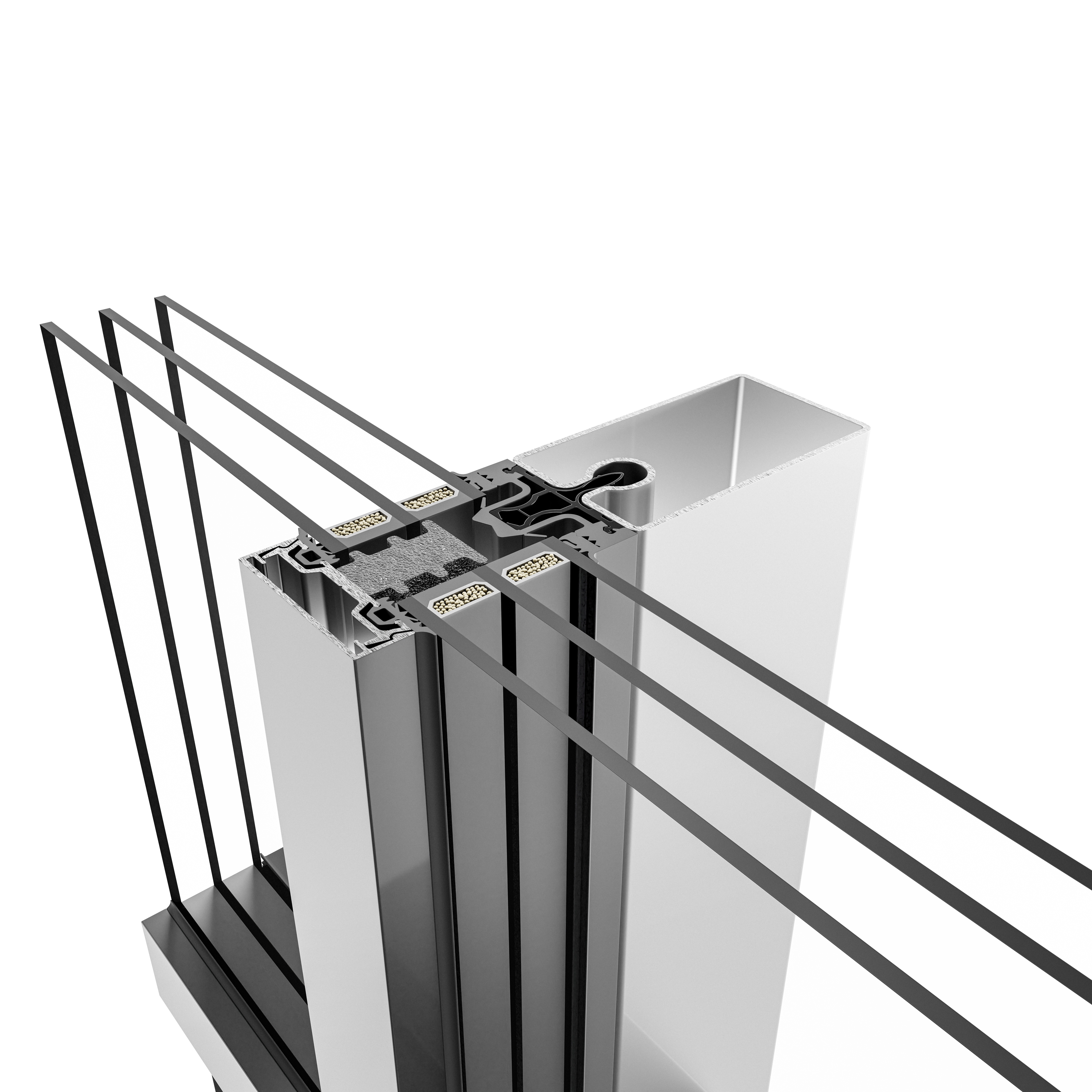

- Steel facades & glass roofs
- Integrated drainage system in the continuous hat sealing in three levels
- T-Connectors SC and SC-L
Dimension:
- System width 50 or 56 mm
- glass weight up to 1019 kg
- glass thickness from 4 to 64 mm
- profile depth up to 200 mm
Concept
- Sharp edged profiles due to small radii
- No welding needed for the curtain wall construction
- Integrated screw channel in tube reduces planning, manufacturing and installation costs
- Strip galvanizing of the profiles ex works
- Profiles are all suited for mullion and transom
- Application in the roof possible
This product belongs to collection:
Specifications
Material
Metal
Variants
2
You can visit the product page for these variants—just click on them!
Design files
5
