Quad 1
About this product
Architonic ID: 1409035

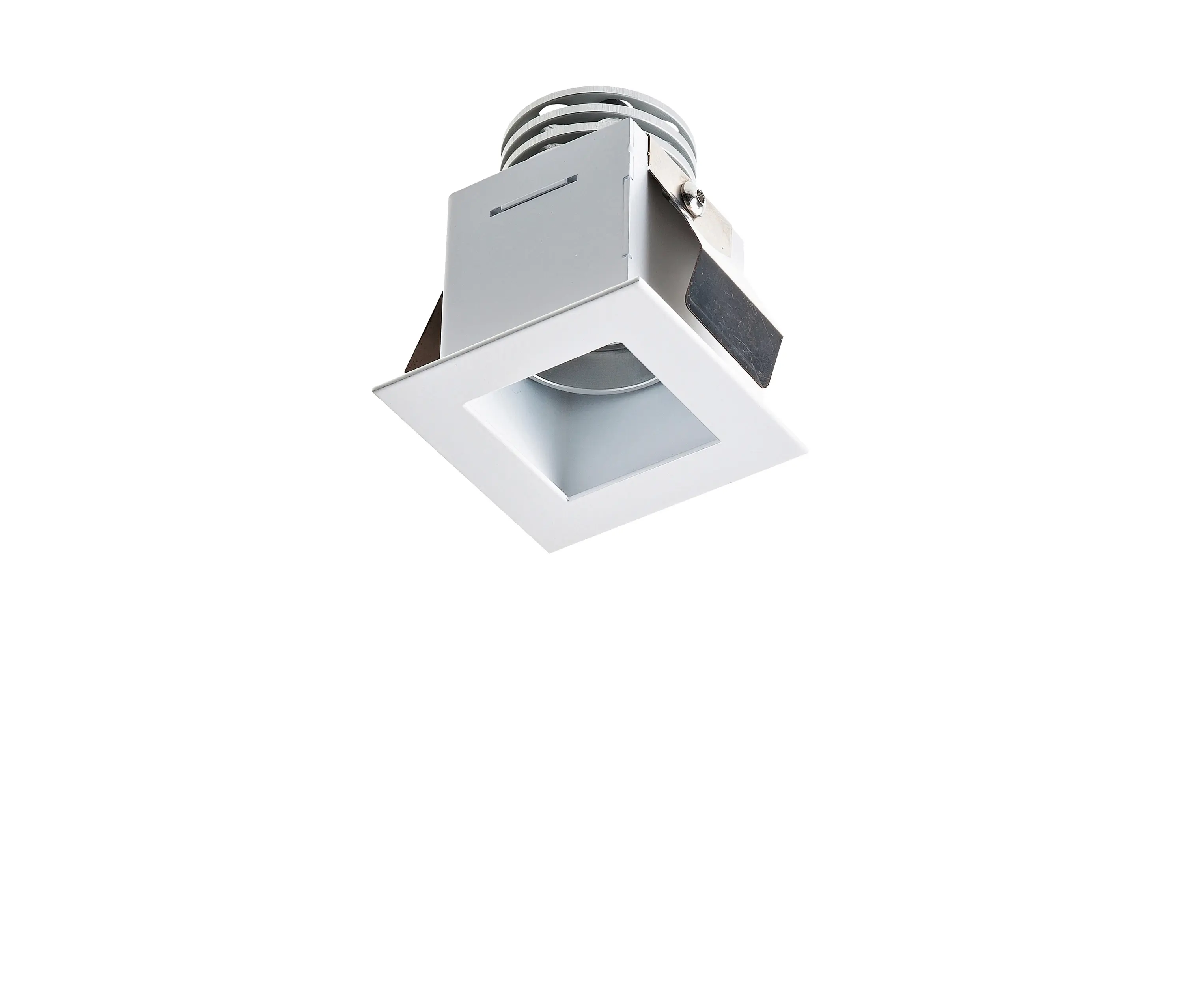

Recessed downlight for indoor applications; recessed (ceiling); body in aluminium, trim in sheet metal; finishes: white, black; 3 power LEDs; max 6W- max 500mA; total delivered lumens: 86 lm, 272 lm (3000K, 500mA); optics: 12°, 24°, 56°, diffuse; LED colour: white- 2700K, 3000K, 4000K, 5000K; blue; RGB; ingress protection: IP40; equipped with EPS; appliance class: III; weight 0,23 kg; dimensions 60x60x78 mm
Concept
Quad is a family of recessed downlights for indoor applications, based on a single square module that holds an optical system with power LEDs, and on multiples of the module in a line. Various combinations are possible within the family: flush or deep-set fixed or tiltable optics, white or RGB light, installation on solid walls or plasterboard, with or without frame. Quad is a classic minimalist solution for use in residential, restaurant and retail applications.
This product belongs to collection:
Specifications
Category
General lighting, Spotlights
Feature
LED lights
Usage
Hospitality, Residential, Retail
