Carrera

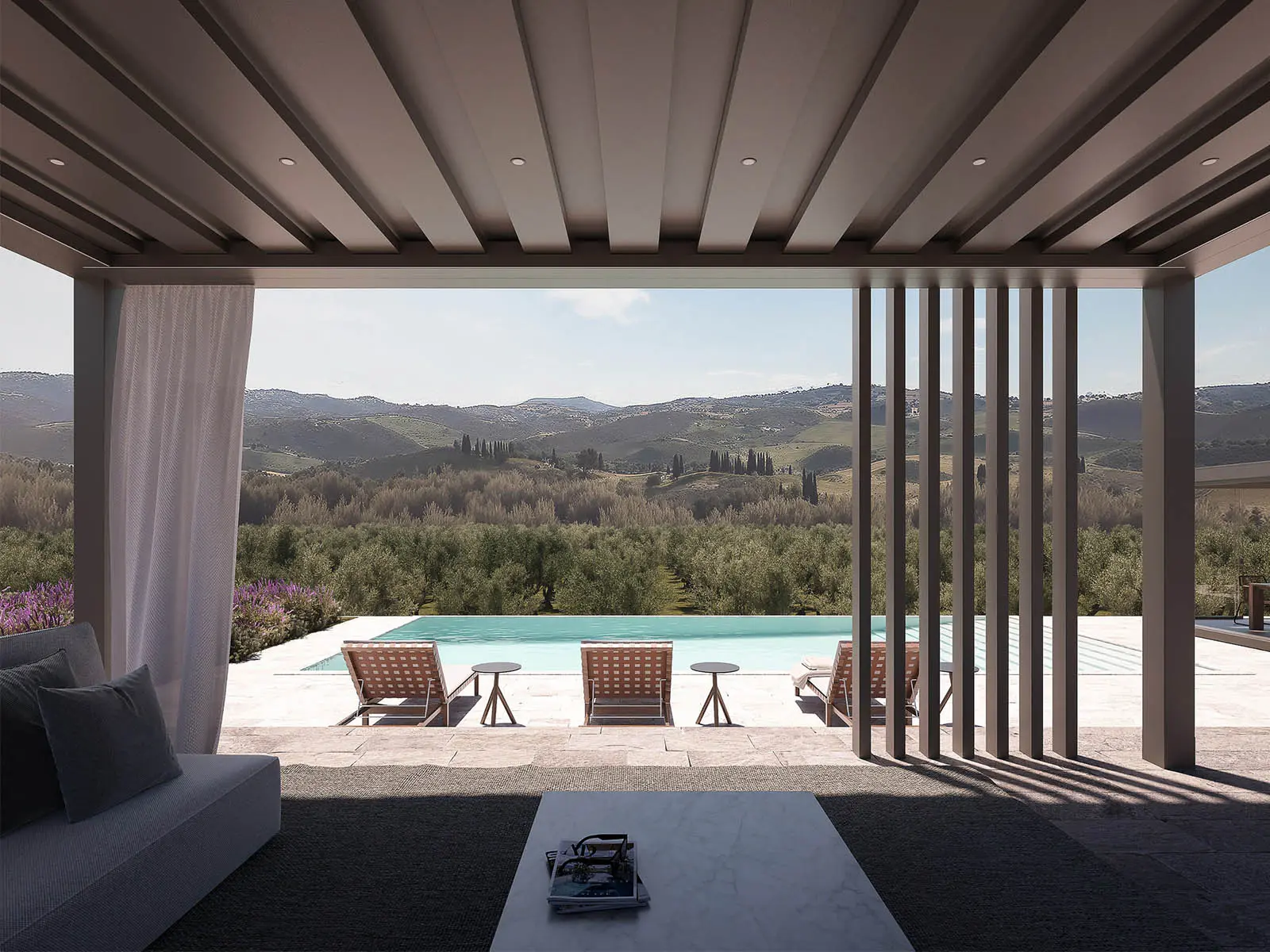

Carrera is the bioclimatic pergola with alternate fixed and movable blades, which lift and overlap one another, thus creating a pleasing alternation of light and shadow. Custom-made, Carrera can be equipped with Glass Series glazing, LED lighting and modular platforms; furthermore, the fixed blades make possible the installation of hanging elements and Mod-Lines.

TECHNICAL FEATURES

Bioclimatic aluminium pergola with fixed and bidirectional sliding sunshade blades, motor-operated which can overlap.

Maximum dimensions of each module:

Carrera P: 500L × 700P cm

Carrera S: 500L × 690P cm

H max: Carrera P 300 cm; Carrera S 270 cm

Pitch between fixed blades 17 cm

Dimensions of uprights: Carrera P 15 × 15 cm; Carrera S 10 × 15 cm

Feasible in different configurations and with couplable modules

Self-supporting or wall-mounted versions

Motorised operation

Water drainage with gutters and drainage integrated in the posts

Carrera P, unlike Carrera S is also compatible with Raso

OPTIONAL

Set: aluminium platform structurally verified to be fully integrated into the pergola, customizable with dimmable LED Line

Glass Series: outer glass walls

Connect: fixed mirrored or smoked glass panels with slim profiles (except for Carrera S)

Raso: drop-down awning (Carrera P) with technical, blackout or filter fabrics and cloth tensioning system (PSS)

Lighting: dimmable perimeter LED Line (white/RGB light, white included), spotlights integrated into the blades, spotlights positioned on the posts with uni-or bidirectional beam (white dimmable light)

Ray: vertical profiles with aesthetic function

Drapes: soft sliding curtains with aesthetic function

Mod-Lines: modular open shelving system made of aluminium, customizable with different accessories

Sockets and USB ports

Heaters predisposition

Comfort blade: partial blade insulation

Home automation: creation of customised scenarios controllablevia app or voice commands

Temperature, rain, snow and wind sensors.
