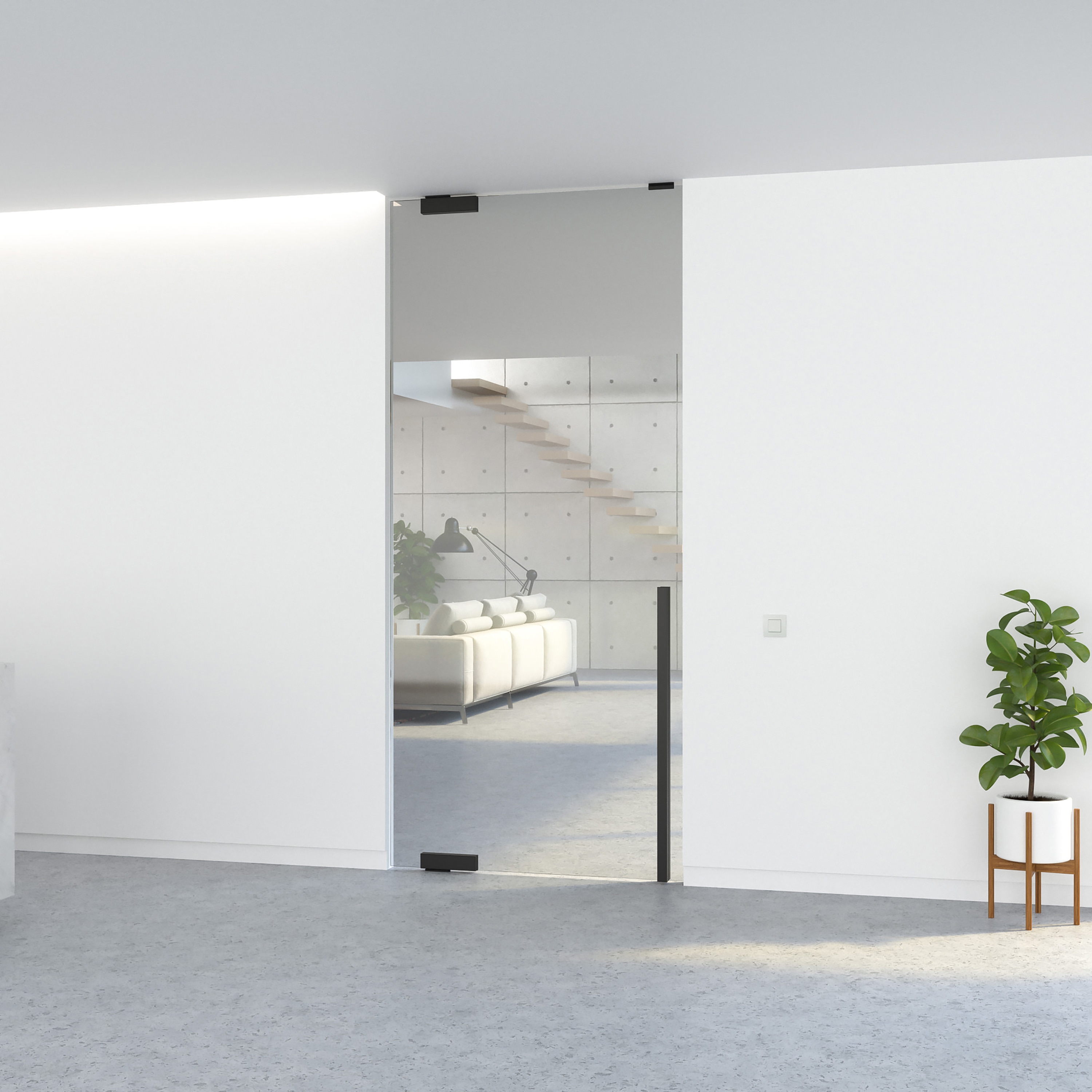

Portapivot GLASS | Single door + fixed partition

Compact glass patch fittings with invisible ‘Stealthpivot’ pivot hinges, designed to fit seamlessly into any interior style.

Our patch fittings are designed with minimal architecture in mind and are available in 2 anodised aluminium colours.

The system can be fitted with any type of 10 mm thick tempered glass and is designed to be installed in the finished wall opening; without the need for any built-in fixtures.

Portapivot offers a selection of modern handles made from anodized aluminium, closely matching the colour of the glass patch fittings.

Specifications

Available in 2 anodised colours

Compatible with 10 mm glass

Stealthpivot fitted inside frame

Easy assembly & installation

Dimensions

Minimum height: 1800 mm

Maximum height: 2975 mm

Minimum width: 750 mm

Maximum width: 4500 mm

Portapivot GLASS NL kit

Anodised aluminium glass patch fittings

Stealthpivot hinge set

Assembly accessories

Stealthpivot

Compact size

Modular axis point

Self-closing technology

-90° 0° +90° open/hold positioning

Configurable swing operation: 180° or 360°
