Pivot Mini 1
- Home/Outdoor wall lights/

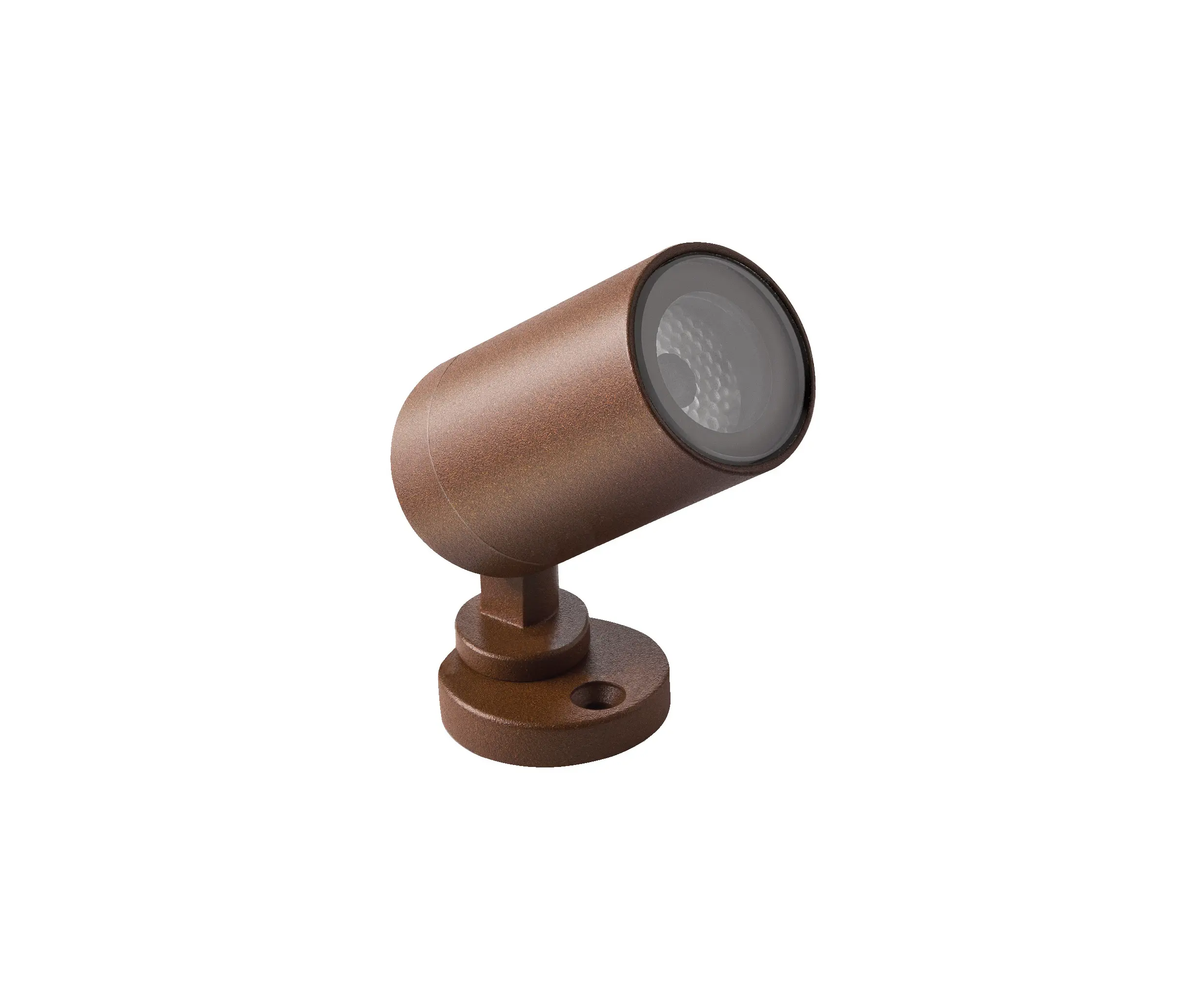

Pivot Mini 1
About this product
Architonic ID: 20167562
Year of Launch: 2020
Projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 2,5W, 3,5W; Power supply: 24Vdc; Lumen output at source: 150 lm (3000K, 2.5W, CRI 90), 195 lm (3000K, 2.5W, CRI 80), 200 lm (3000K, 3.5W, CRI 90), 260 lm (3000K, 3.5W, CRI 80); Delivered lumen output: 101 lm (3000K, 15°, 2.5W, CRI 90), 118 lm (3000K, 15°, 2.5W, CRI 80), 134 lm (3000K, 15°, 3.5W, CRI 90), 158 lm (3000K, 15°, 3.5W, CRI 80); 1 power LED, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 15°, 21°, 35°, sharp 30°; CRI Colour Rendering Index: 80, >90; Body material: body in anticorodal aluminium; Finishes: cor-ten, white, anthracite, copper; Screen material: screen in serigraphed, tempered, transparent extra-clear glass; power supply unit not included; Ingress protection: IP66; Impact resistance: IK06; Protection systems: IPS (Intelligent Protection System), PID (Protective Impedance Device); Appliance class: class III; Weight: 135 g; Dimensions: Ø25x49 mm
Concept
A compact outdoor projector featuring a wide range of optics, including 5° and 8° optics, 15°x47° and 46°x16° elliptical optics, and two sharp optics, which create light beams with pin-sharp edges.
It is available in a total of 7 finishes: white, black anodized, anodized aluminium, anthracite, cor-ten, copper, and the jasper green finish developed specifically for use in landscape design.
Available in a white light version or with RGB LED colour.
Pivot 2.0 also has 13°x68° elliptical optics and manual zoom lens, both adjustable using a magnet.
This product belongs to collection:
Specifications
Material
Glass
4-mm-thick transparent extra-clear glass
Variants
3
You can visit the product page for these variants—just click on them!
Design files
19
