Pivot 1.7
- Home/Flood lights / washlighting/

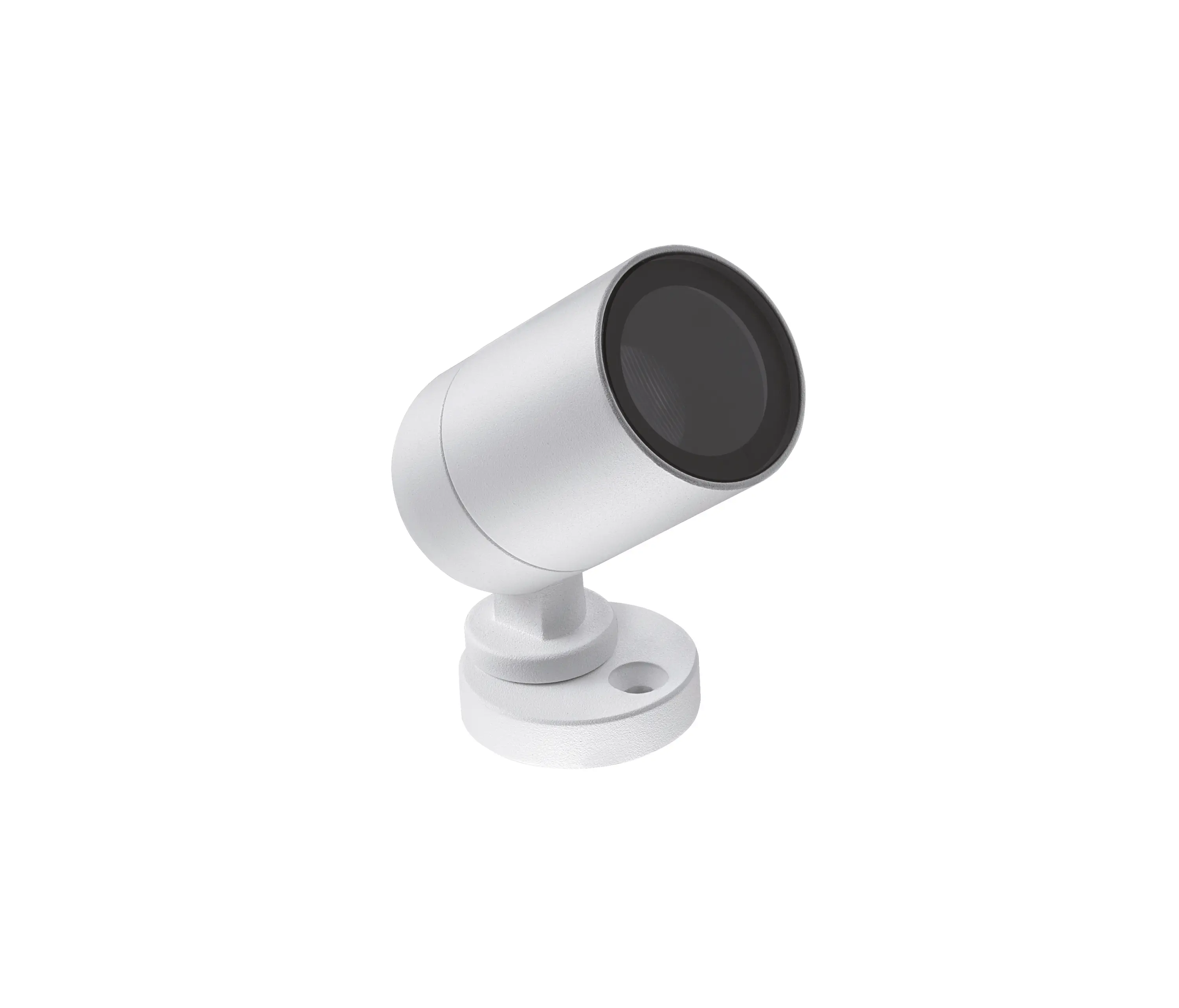

Pivot 1.7
About this product
Architonic ID: 20024581
Year of Launch: 2018
projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); 3,5W (5° optics), 5W, 7W; 24Vdc; Lumen output at source: 488 lm (3000K, 5W, CRI 80), 452 lm (3000K, 5W, CRI 90), 657 lm (3000K, 7W, CRI 80), 608 lm (3000K, 7W, CRI 90); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 284 lm (3000K, 34°, 5W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), 374 lm (3000K, 34°, 7W, CRI 90); 1 power LED High Intensity, 1/4 ANSI BIN (5° optics), 3-step MacAdam, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 5°, 8°, 11°, 17°, sharp 21°, 34°, 43°, 45°, sharp 51°, 54°, 15°x47°, 46°x16°; CRI: 80, 90; body in anticorodal aluminium, screen in transparent, tempered extra-clear glass; Finishes: anthracite, cor-ten, anodized aluminium, copper, jasper green, black anodized, white; Ingress protection: IP66; Impact resistance: IK07; Protection systems: IPS, PID; Appliance class: III; Weight: 400 g; Dimensions: Ø40x75 mm.
Concept
A compact outdoor projector featuring a wide range of optics, including 5° and 8° optics, 15°x47° and 46°x16° elliptical optics, and two sharp optics, which create light beams with pin-sharp edges.
It is available in a total of 7 finishes: white, black anodized, anodized aluminium, anthracite, cor-ten, copper, and the jasper green finish developed specifically for use in landscape design.
Available in a white light version or with RGB LED colour.
Pivot 2.0 also has 13°x68° elliptical optics and manual zoom lens, both adjustable using a magnet.
This product belongs to collection:
Specifications
Material
Glass
4-mm-thick transparent extra-clear glass
