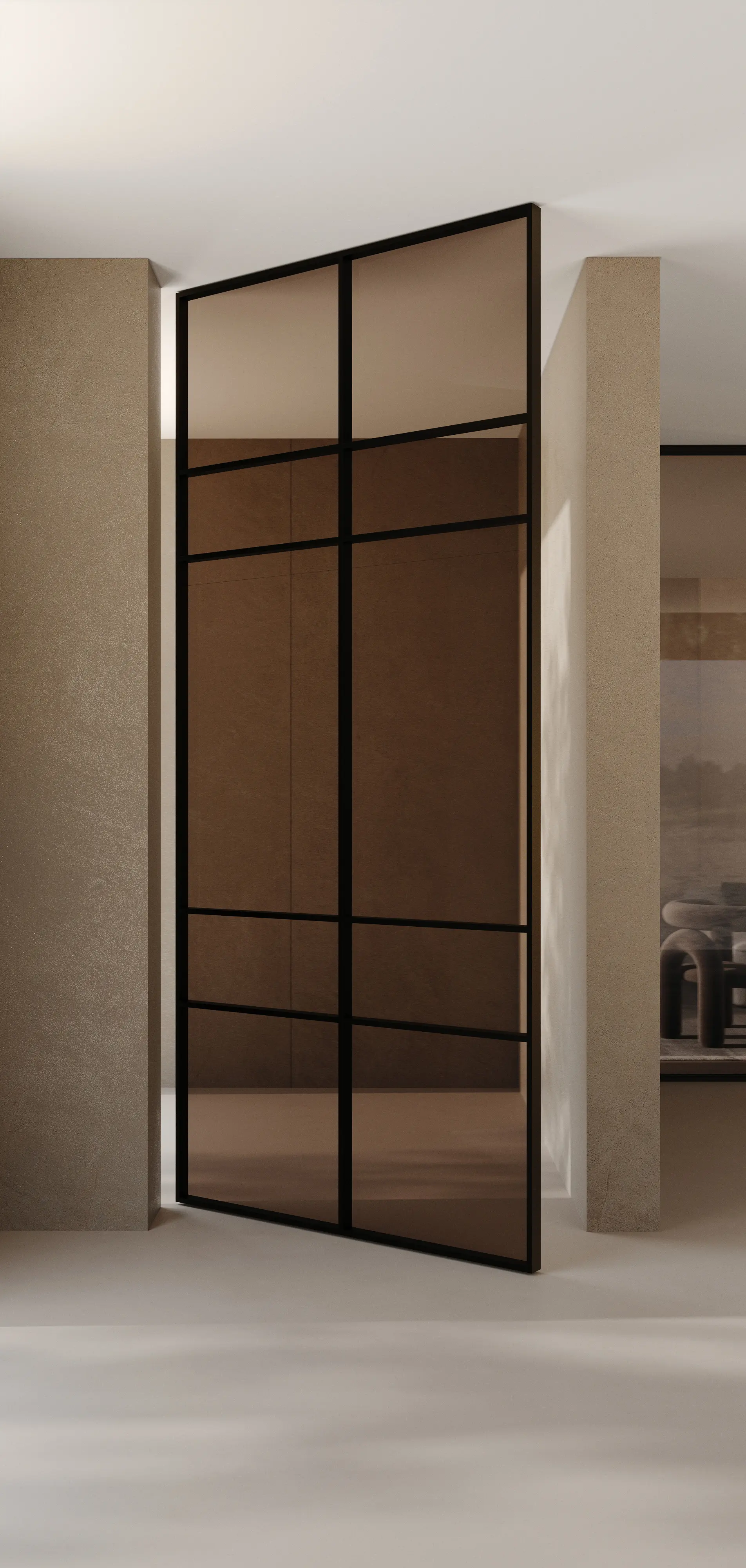

Piu Pivot Glass

Name: Piu Pivot Glass
Brand: PIU Design

Internal doorsbyPIU Design

Home

Internal doors

Piu Pivot Glass

About this product

Architonic ID: 20323629

Year of Launch: 2023

PIU DOOR SYSTEM : Pivot doors with a unique top/bottom hinge system enabling the rotation of the door leaf around a vertical axis.

APPLICATION : Interior doors

HEIGHT : Standard sizes range from 202 to 300 cm, other sizes available upon request.

WIDTH : Single leaf up to 140 cm | max. weight 120 kg

DOOR LEAF THICKNESS : 45 mm

DOOR LEAF CONSTRUCTION : ALU – full aluminum door leaf construction with finishing panels on both sides, max. 6mm; GLASS – 6mm glass pane in an aluminum frame.

ALUMINUM COLOR : Aluminum finishes: steel brushed, brown brushed, black brushed, gold brushed, anthracite anodized.

HINGES : Top/bottom model with hinge adjustment position: min. 11.5 cm (Pivot Alu) / min. 21.5 cm (Pivot Glass) / max. leaf axis (center); hinge adjustment depending on leaf size and weight; leaf positioning every 90º; hinge color: black.

OPENING : Opens inward and outward or only inward / outward when using an additional locking element.

Concept

Pivot doors are a modern solution in interior design, characterized by a unique rotating system that allows the door to open in both directions around a vertical axis (pivot). This innovative top/bottom hinge mechanism is available in a full glass version (Glass) or a full aluminum version (Alu) for cladding with wall materials up to 6mm thick (e.g., sintered stone, tiles, veneer). These doors are suitable for use in halls, corridors, passageways, public spaces, apartments, and private homes. They are ideal for areas where aesthetics, spaciousness, and functionality are of key importance.
