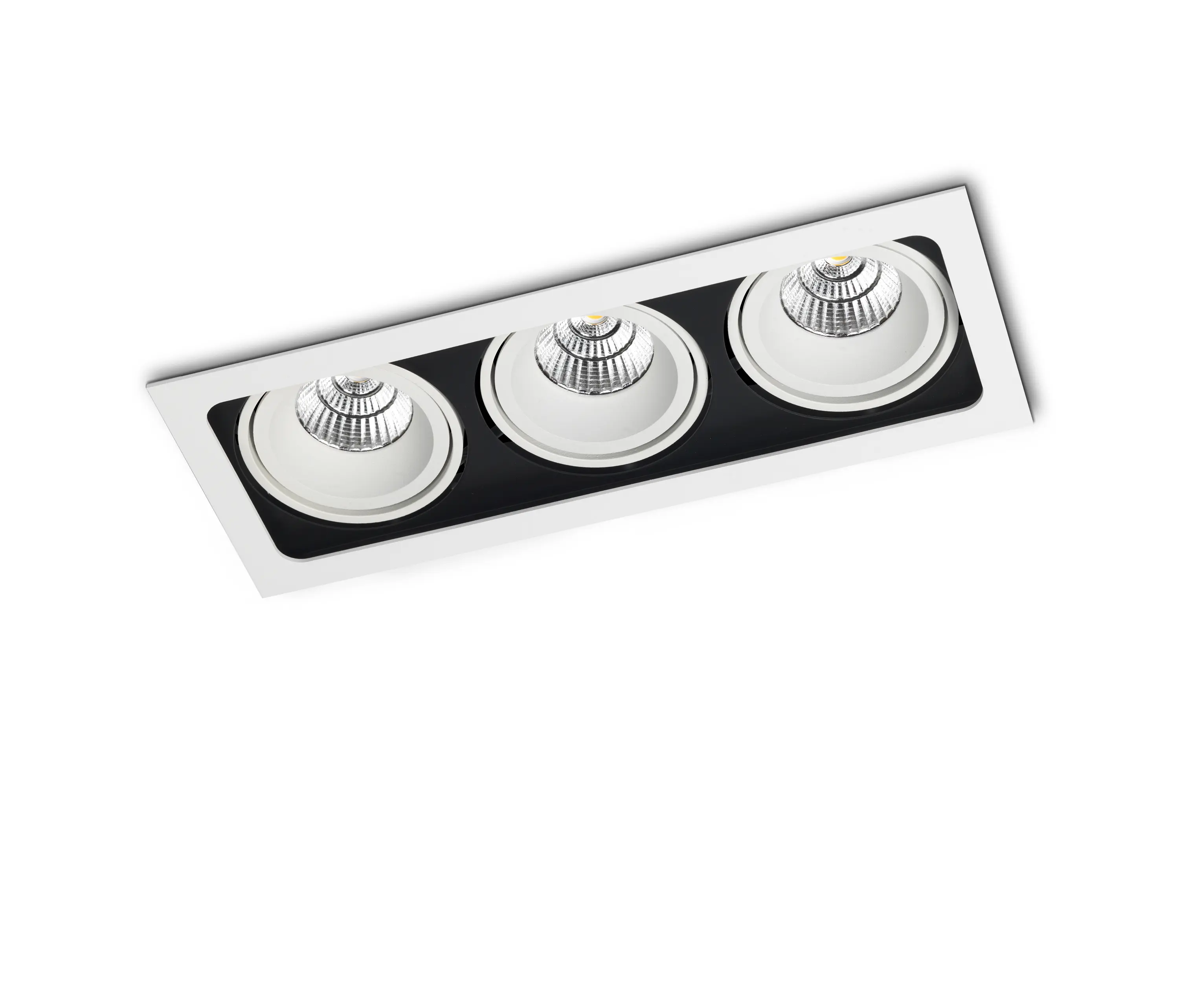

PICCOLO FRAME DEEP TRIPLE 3X CONE COB LED

3X CONE COB LED

PRODUCT SPECS

Cut-out size ■ 305 x 110mm

Min recessed height 120mm

Weight 1.8kg

Glow wire test 850°C

POWER SPECS

Gear transfo included

Lamp power 7W

LIGHT SPECS

Light source included 1

Beam angle 30°

Color temperature 2700K

CRI 80+

Max LED power 7W

Dimmable

NON DIMMABLE

WH/WH BB86161A CL7_30WW 2700K 30° 3X 7W

WH/BLK BB86161-2A CL7_30WW 2700K 30° 3X 7W

BLK/BLK BB86162A CL7_30WW 2700K 30° 3X 7W

GR/GR BB86163-3A CL7_30WW 2700K 30° 3X 7W

GR/BLK BB86163A CL7_30WW 2700K 30° 3X 7W

CHR/WH BB86165-1A CL7_30WW 2700K 30° 3X 7W

CHR/BLK BB86165-2A CL7_30WW 2700K 30° 3X 7W

WH/BLK/WH BB86161-2-1A CL7_30WW 2700K 30° 3X 7W

IGBT/TRIAC/1-10V DIMMABLE

WH/WH BB86161F CL7_30WW 2700K 30° 3X 7W

WH/BLK BB86161-2F CL7_30WW 2700K 30° 3X 7W

BLK/BLK BB86162F CL7_30WW 2700K 30° 3X 7W

GR/GR BB86163-3F CL7_30WW 2700K 30° 3X 7W

GR/BLK BB86163F CL7_30WW 2700K 30° 3X 7W

CHR/WH BB86165-1F CL7_30WW 2700K 30° 3X 7W

CHR/BLK BB86165-2F CL7_30WW 2700K 30° 3X 7W

WH/BLK/WH BB86161-2-1F CL7_30WW 2700K 30° 3X 7W

1-10V/PUSH DIMMABLE

WH/WH BB86161B CL7_30WW 2700K 30° 3X 7W

WH/BLK BB86161-2B CL7_30WW 2700K 30° 3X 7W

BLK/BLK BB86162B CL7_30WW 2700K 30° 3X 7W

GR/GR BB86163-3B CL7_30WW 2700K 30° 3X 7W

GR/BLK BB86163B CL7_30WW 2700K 30° 3X 7W

CHR/WH BB86165-1B CL7_30WW 2700K 30° 3X 7W

CHR/BLK BB86165-2B CL7_30WW 2700K 30° 3X 7W

WH/BLK/WH BB86161-2-1B CL7_30WW 2700K 30° 3X 7W

DALI DIMMABLE

WH/WH BB86161D CL7_30WW 2700K 30° 3X 7W

WH/BLK BB86161-2D CL7_30WW 2700K 30° 3X 7W

BLK/BLK BB86162D CL7_30WW 2700K 30° 3X 7W

GR/GR BB86163-3D CL7_30WW 2700K 30° 3X 7W

GR/BLK BB86163D CL7_30WW 2700K 30° 3X 7W

CHR/WH BB86165-1D CL7_30WW 2700K 30° 3X 7W

CHR/BLK BB86165-2D CL7_30WW 2700K 30° 3X 7W

WH/BLK/WH BB86161-2-1D CL7_30WW 2700K 30° 3X 7W
