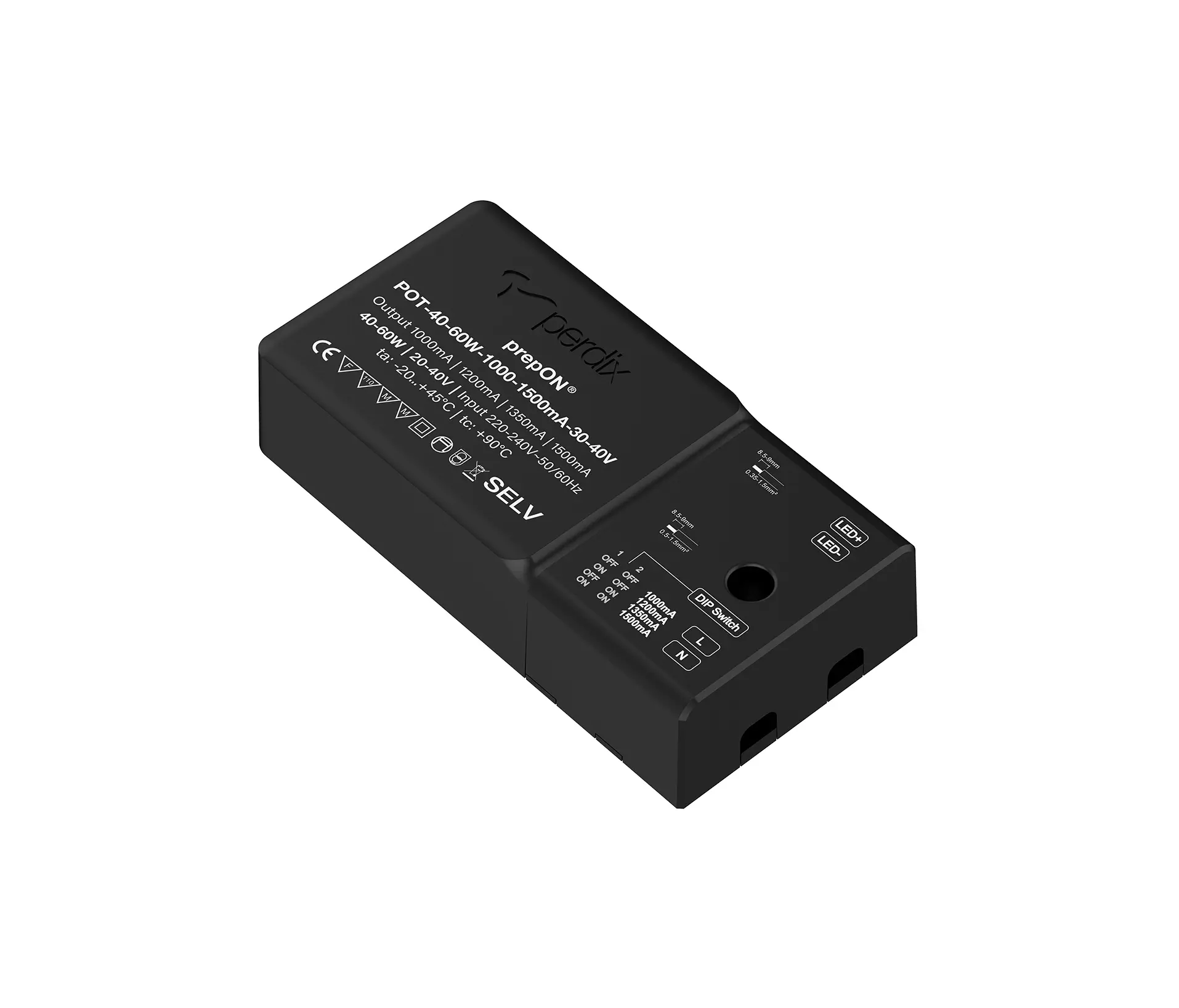

prepON®
About this product
Architonic ID: 20733025
Luminaire component: LED control gear
Input voltage | Technical Region: AC 220-240V
Input frequency: 50-60Hz
Rated voltage (V): DC 20-40V / DC 20-42V (prepDAL ®) | DC 20-42V (prepCUT ®)
Watts: 8W | 10W | 15W | 20W | 25W | 30W | 45W | 50W | 55W | 60W
Output current: 180mA | 200mA | 250mA | 350mA | 500mA | 550mA | 600mA | 650mA | 700mA
750mA | 800mA | 850mA | 900mA | 950mA | 1000mA | 1050mA | 1150mA | 1200mA
Control gear: constant current
Light control: ON/OFF
Service life: up to 100'000 hours
Guarantee | Service: 5 years
Measurements:
prepON® 8-10W: h: 23.5 mm x b: 51.5 mm x l: 92 mm
prepON® 15-20W: h: 28.5 mm x b: 51.5 mm x l: 115 mm
prepON® 25-40W: h: 31 mm x b: 70.5 mm x l: 119 mm
prepON® 30-50W: h: 31 mm x b: 70.5 mm x l: 134 mm
Concept
Our control gear is the result of market experience and continuous optimization. It is available in versions such as leading-edge phase dimming, DALI2, or ON/OFF, and is compatible with our spots and modules.
