LIBRE CIRCLE 2.0® ø300mm

Name: LIBRE CIRCLE 2.0® ø300mm
Brand: perdix

Wall lightsbyperdix

Available variants:

Visit product on perdix website

Home

Wall lights

LIBRE CIRCLE 2.0® ø300mm

About this product

Architonic ID: 20732974

Year of Launch: 2013

Type of light: ceiling light | wall mounted light

Material: aluminum | die-cast | polycarbonate with UV-resistant surface (protection against yellowing)

Standard optics: opal cover | 85% direct light | 15% indirect light component

Optics with direct ring: opal cover | 100% direct light (through the accessory)

Optics with shade: opal cover | 75% direct light | 25% indirect light (through the accessory)

Optics with pendant kit: opal cover | 85% direct light | 15% indirect light (through the accessory)

Optics with built in flex: opal cover | 100% direct light (through the accessory), 8-level height adjustment

Light color | Color temperature: 3000 Kelvin (warm white) | 4000 Kelvin (neutral white) adjustable (dip switch on the lamp)

Color tolerance: 3-step MacAdams binning

Color rendering Ra: 90

Version: white (RAL 9016) | silver (RAL 9006) | black (RAL 9005) | other RAL colors on request

Protection class: protection class II | IP54 and IK10

Light control: ON/OFF | phase cut dimmable | DALI dimmable | SENSOR (incl. daylight sensor function) | available as EMERGENCY light

Service life: 50'000 hours at 80% luminous flux

Guarantee | Service: 5 years + 20 years availability guarantee for spare parts

Miscellaneous: suitable for central batteries

Measurements:

at standard: 20W/25W (adjustable with dip switch on the lamp) | ø300mm | *h 45mm

with direct ring: 20W/25W (adjustable with dip switch on the lamp) | ø300mm + 2mm | *h 45mm

with shade: 20W/25W (adjustable with dip switch on the lamp) | ø300mm + 35mm | *h 60mm

with pendant kit: 20W/25W (adjustable with dip switch on the lamp) | ø300mm | *h 45mm | rope & cable length: 1500mm

with build in flex: 20W/25W (adjustable with dip switch on the lamp) | ø316mm | ø395mm (bracket) | *h 74,09mm

Concept

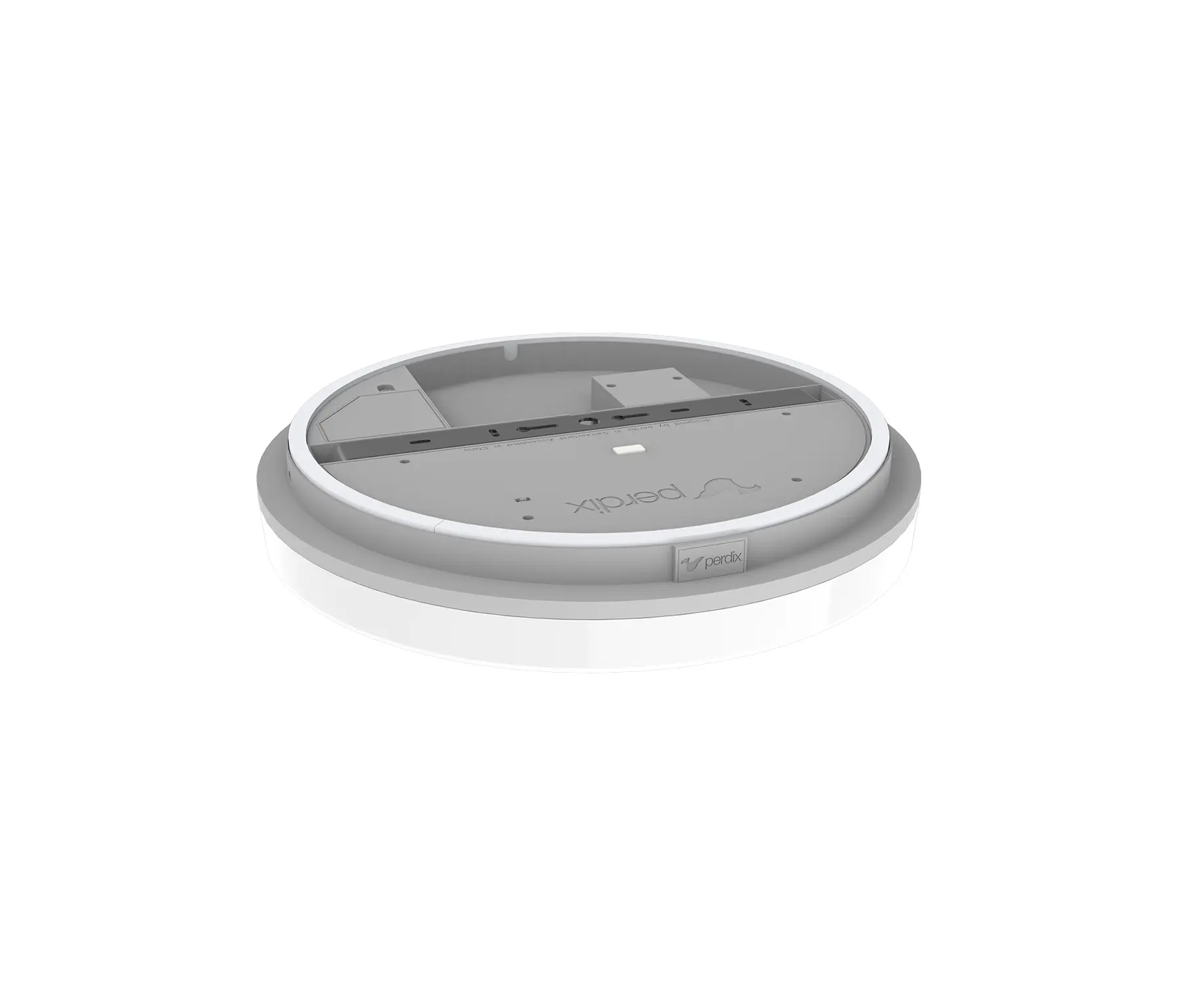

The LIBRE CIRCLE 2.0® is a round surface-mounted ceiling luminaire with a classically modern diffuser, providing a homogeneous and glare-free illumination. It stands out with its simple geometry, and additional accessories allow for creative variations.

With the "shade" accessory, the indirect light component expands, creating a new design. The "direct ring" adds a border around the luminaire, providing compactness and ensuring that only direct light is emitted.

The "pendant kit" effortlessly transforms the surface-mounted luminaire into a pendant luminaire.

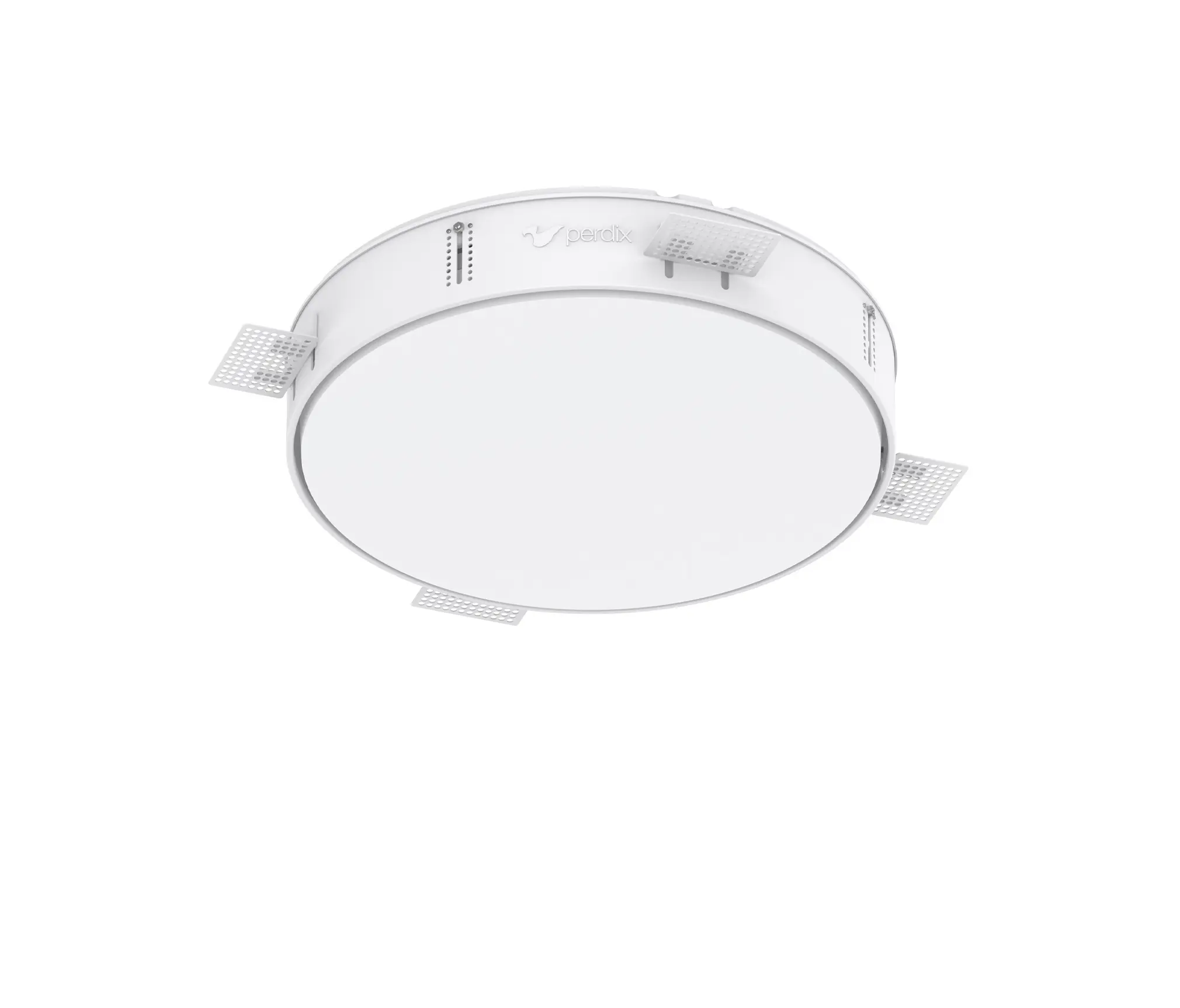

The LIBRE CIRCLE 2.0® ceiling luminaire can be flexibly installed in the ceiling with the accessory "built-in flex," which offers an effect-enhancing feature. This allows the luminaire to protrude from the ceiling, serving as an additional design element, or to be completely recessed and hidden within the ceiling. In the latter case, only the light from the ceiling cutout illuminates the space.

Also available in a square shape: LIBRE SQUARE 2.0®.
