Pasito 1.1
About this product
Architonic ID: 20061154

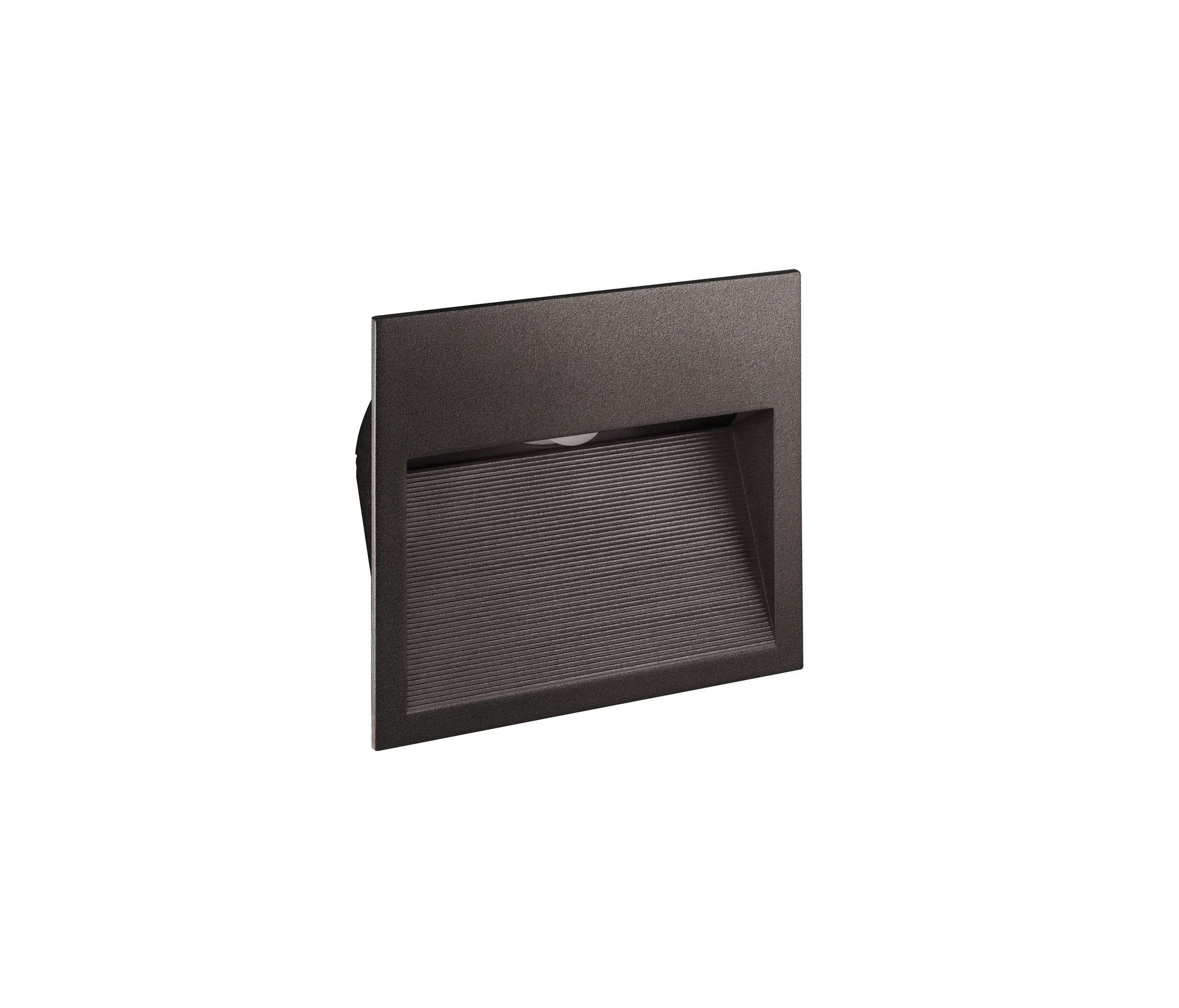

step light for outdoor applications; recessed (wall); Power: 8W (230Vac), 6W (24Vdc); Power supply: 24Vdc, 230Vac; Lumen output at source: 851 lm (3000K, CRI 80), 788 lm (3000K, CRI 90); Delivered lumen output: 364 lm (3000K, asymmetrical 150°x90°, CRI 8, white finish), 316 lm (3000K, asymmetrical 150°x90°, CRI 90, white finish), 279 lm (3000K, 60°, CRI 80, white finish), 243 lm (3000K, 60°, CRI 90, white finish); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 60°, asymmetrical 150°x90°; CRI: 80, 90; Material: body in technopolymer and aluminium; Finishes: white, anthracite, grey, cor-ten; 230Vac: built-in power supply unit, Ingress protection: IP65; Impact resistance: IK06; Protection systems: IPS; Appliance class: II (230Vac); III (24Vdc); Weight: 450 g; Dimensions: 157x43x143 mm
Concept

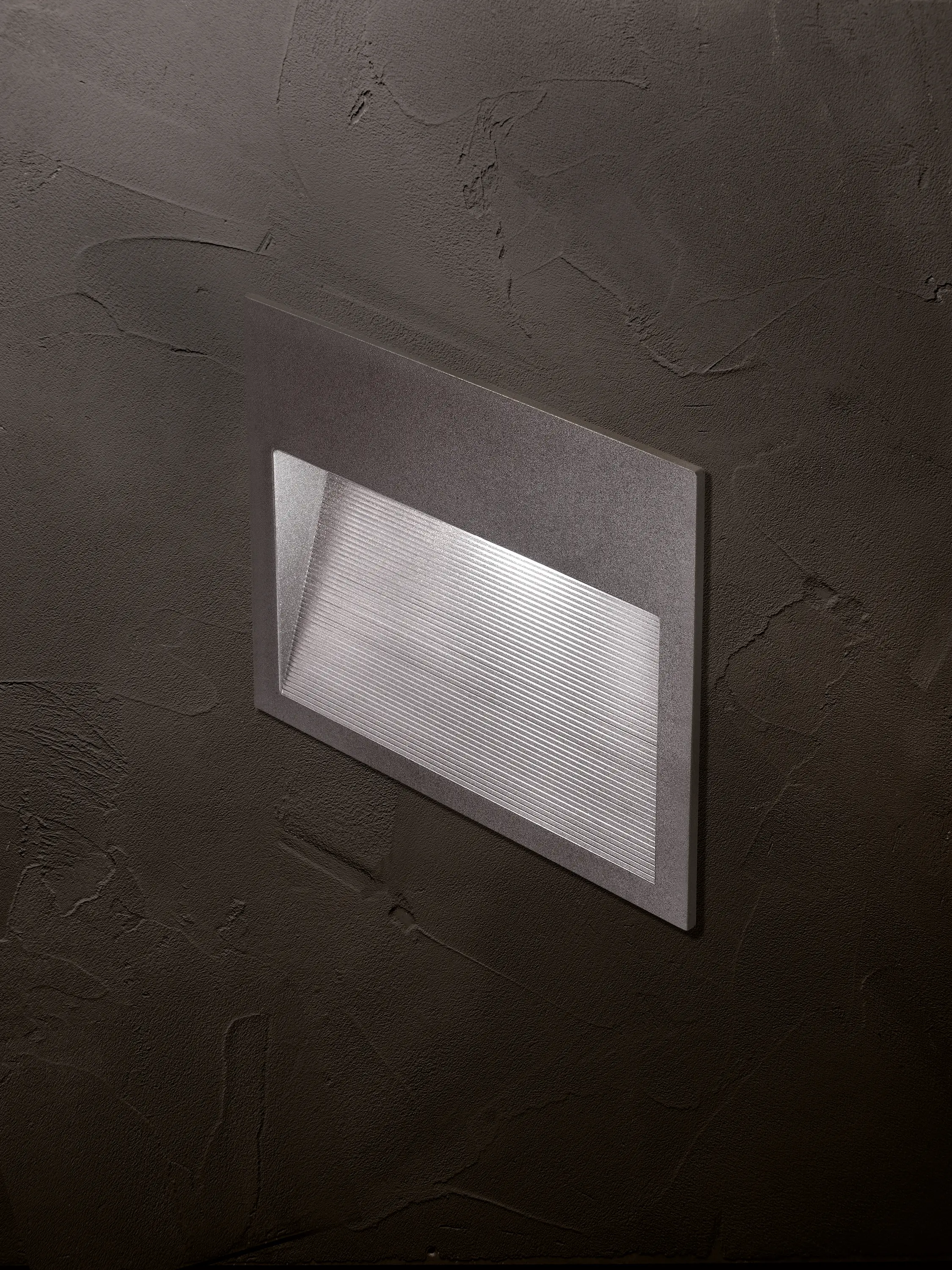

The design of the Pasito step light family includes models for three types of installation: recessed flush, recessed with frame and mounted on surface. Each version offers a choice of two dimensions, two optics and two types of LED (CRI 80 and >90).
Thanks to the extremely wide-angle 150°x90° asymmetrical optics, the fixtures can be installed up to 5 m apart (installation h 800 mm), thus reducing the number of fixtures required to light long paths.
The controlled downward beam reduces light spill to a minimum.
This product belongs to collection:
Height
14.3 cm
Length
15.7 cm
Width
4.3 cm
