Pasito 1.0
- Home/Outdoor wall lights/

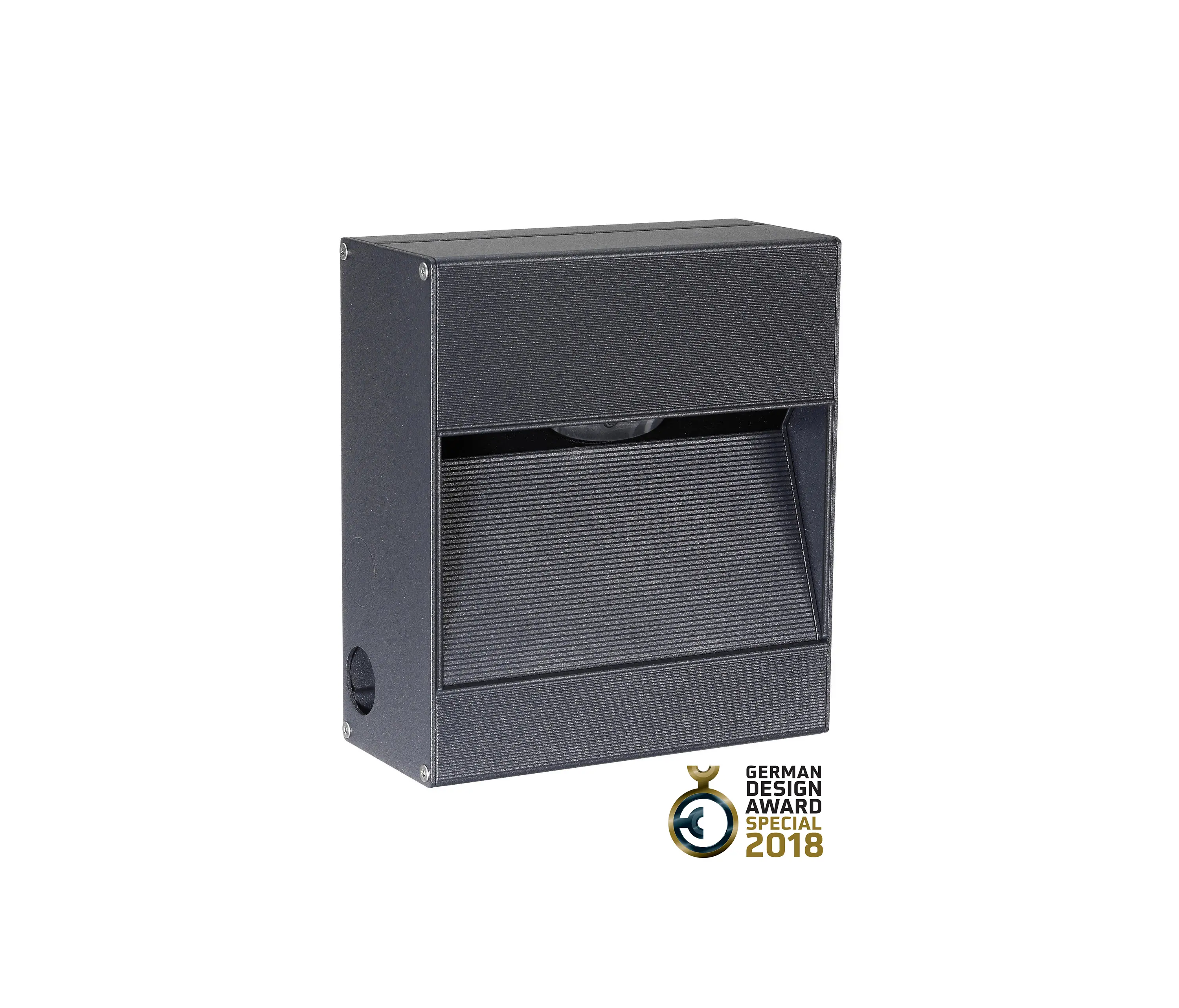

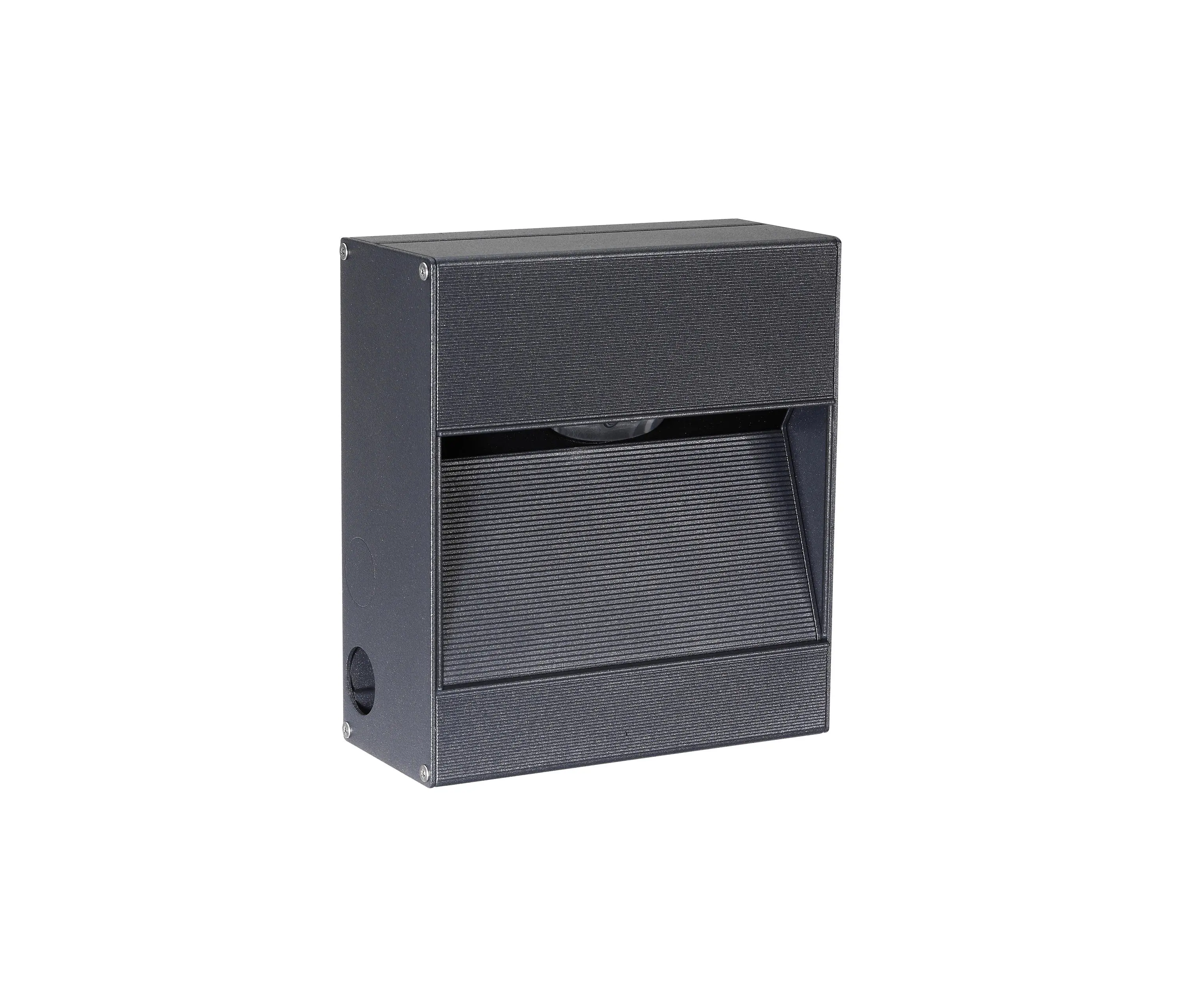

Pasito 1.0
About this product
Architonic ID: 1554582
Year of Launch: 2017
step light for outdoor applications; recessed (wall); Power: 8.5W (24Vdc), 13W (230Vac); Power supply: 230Vac, 24Vdc; Lumen output at source: 851 lm (3000K, CRI 80); 788 lm (3000K, CRI 90); Delivered lumen output: 390 lm (3000K, asymmetrical 150°x90°, CRI 80, white finish); 361 lm (3000K, asymmetrical 150°x90°, CRI 90, white finish); 320 lm (3000K, 60°, CRI 80, white finish); 296 lm (3000K, 60°, CRI 90, white finish); 1 high-intensity power LED; LED colour: 2700K, 3000K, 4000K; Optics: 60°, asymmetrical 150°x90°; CRI: 80, 90; Material: body in aluminium; Finishes: anthracite, grey, white, cor-ten; 230Vac: Ingress protection: IP65; Impact resistance: IK06; Protection systems: IPS; Weight: 520 g; Dimensions: 143x67x161 mm
Concept
The design of the Pasito step light family includes models for three types of installation: recessed flush, recessed with frame and mounted on surface. Each version offers a choice of two dimensions, two optics and two types of LED (CRI 80 and >90).
Thanks to the extremely wide-angle 150°x90° asymmetrical optics, the fixtures can be installed up to 5 m apart (installation h 800 mm), thus reducing the number of fixtures required to light long paths.
The controlled downward beam reduces light spill to a minimum.
This product belongs to collection:
Specifications
Feature
LED lights
Usage
Multipurpose, Outdoor / Garden, Urban space
Variants
3
You can visit the product page for these variants—just click on them!
Design files
19
