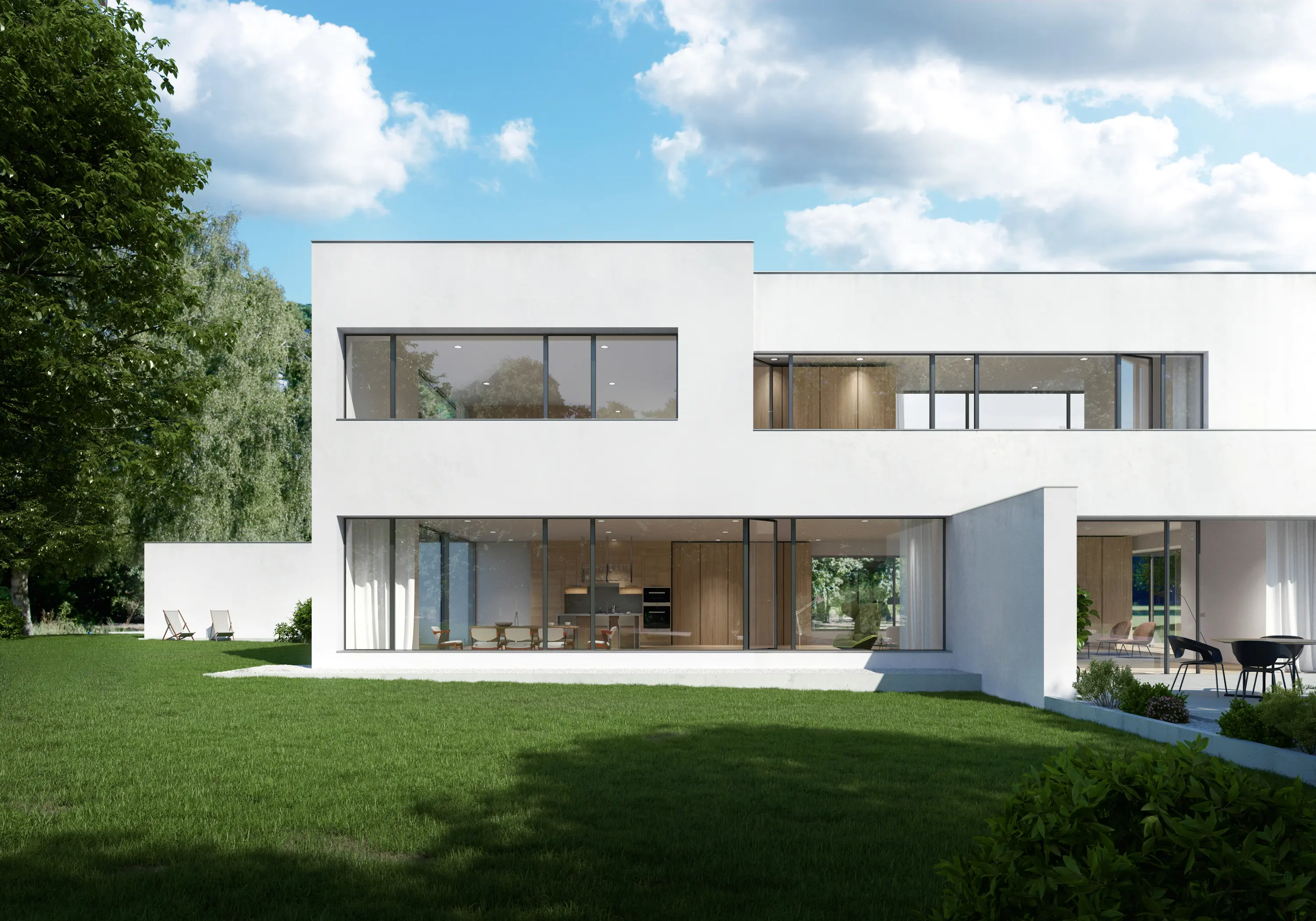

SCHÜCO - Panorama Design Window | AWS 75 PD.SI

1/1

Panorama Design Window | AWS 75 PD.SI

Name: Panorama Design Window | AWS 75 PD.SI
Brand: SCHÜCO

Window typesbySCHÜCO

Home

Window types

About this product

Architonic ID: 20152273

System basic depth

75 mm

Min. face width

55 mm

Uf value of frame (≥)

1.7 W/(m²·K)

Max. glass/panel thickness

50 mm

Max. vent width

1450 mm

Max. vent height

2500 mm

Max. sound reduction Rwp

46 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC2

Wind load resistance

Class C5 / B5

CE marking

Yes

Total basic depth

85 mm

Width of vent frame

85 mm

Max. vent weight

160 kg

Min.-max. vent height

490...2500 mm

Min.-max. vent width

450...1450 mm

Outer frame face width

55 mm

Vent frame face width

0 mm

Max. face width of mullion

102 mm

Min.-max. face width of mullion

70...102 mm

Min.-max. glass/panel thickness

26...50 mm

Shear bond

Yes

Concealed fittings system

Yes

Surface finishes

Powder, Anodised, Paint

Glass composition

Triple glazing

Opening type: manual, inward-opening

Turn/tilt, Side-hung, Bottom-hung

Opening angle

90°

Mechanical strength

Class 4

Proof of durability

Class 3

Uw value of window (≥)

0.78 W/(m²·K)

Ug value of glass (≤)

0.3 W/(m²·K)

Drainage levels

Security glazing

Yes

Colour-independent

Yes

Planning benefit:

-Panorama Design: maximum transparency due to minimum profile face width

-Stylish profile geometry: inner flush finish thanks to all-round shadow gap

-Panorama Design language of form: handle connection without rosettes with Schüco design handle

-Can be used as a punched opening, ribbon window and façade insert unit in Schüco mullion/transom façades

-Wide range of attachments to building structure: best possible planning options including concealed drainage"

Concept

Panorama Design façade with integrated solution for all-glass corners without profiles Architecture flooded with light and with maximum transparency, without compromise: the Schüco FWS 35 PD (Panorama Design) façade system offers a system-integrated solution, which allows for all-glass corners without vertical mullion profiles. The result is representative Panorama Design façades with a first-class visual appearance and an ideal view to the outside, which meet the highest requirements in high-end residential and commercial construction. The system platform for the mullion/transom façade provides an enhanced range of accessories with a high degree of fabrication reliability, e.g. visually discreet attachment components for Schüco sun shading systems and tested burglar resistance solutions. Combining different Schüco Panorama Design systems enables the complete seamless integration concept for the whole building envelope. Seamless stands for the concealed connection of Panorama Design constructions. The Schüco ASS 77 PD sliding door system is integrated in the Schüco FWS 35 PD mullion/transom façade system for an even profile transition with no offset. Both systems have extremely narrow profile face widths, but also achieve a high level of thermal insulation up to passive house level.
