Panorama Design Sliding Systems | ASE 67 PD

Name: Panorama Design Sliding Systems | ASE 67 PD
Brand: SCHÜCO

Window typesbySCHÜCO

Home

Window types

About this product

Architonic ID: 20086613

Materials

Material: Aluminium

Colours/surface finishes: Powder, paint, anodising

Corrosion protection (optional) : Pre-anodising

Dimensions/ load-bearing capacities

Vent width in mm: 3200

Vent height in mm: 3000

Max. vent weight in kg: 400

Face width of interlock section in mm: 31

Face width of vent frame in mm: 0/31

Basic depth of outer frame in mm: 177/267

Basic depth of vent in mm: 67

Glass thickness in mm: 36-49

Properties

Wind resistance: Up to class C3

Watertightness: Up to class 7A/9A

Sound reduction: Up to class 46 dB

Air permeability: Up to class 4

Burglar resistance: Up to RC 2

Thermal insulation Uw /Uf: From 1.0 W/(m²W)

Operation

Operating forces: Class 0

Operation: Manual

Durability: Class 3

Handle designs: Design handle, push bar, locking knob, lockable push bar, lockable button, lockable knob

Smart home-compatible: No

Opening types: 27

Miscellaneous

Zero level threshold: Yes

Ease of access: No

Can be combnined with sun shading: Yes

90° all-glass corner: Yes

Concept

The vista, that view from inside to outside, should showcase everything down to the last detail. Nothing should disturb or detract from the harmony between nature and architecture.

With Panorama Design sliding units, Schüco creates maximum transparency for an uninterrupted view of nature or the urban environment.

Thanks to concealed outer and vent frames in the wall and ceiling, as well as minimal profile face widths and installation depths, the visual components of the sliding door are reduced to a minimum, without having to sacrifice flexibility in the choice of opening types and surface finishing.

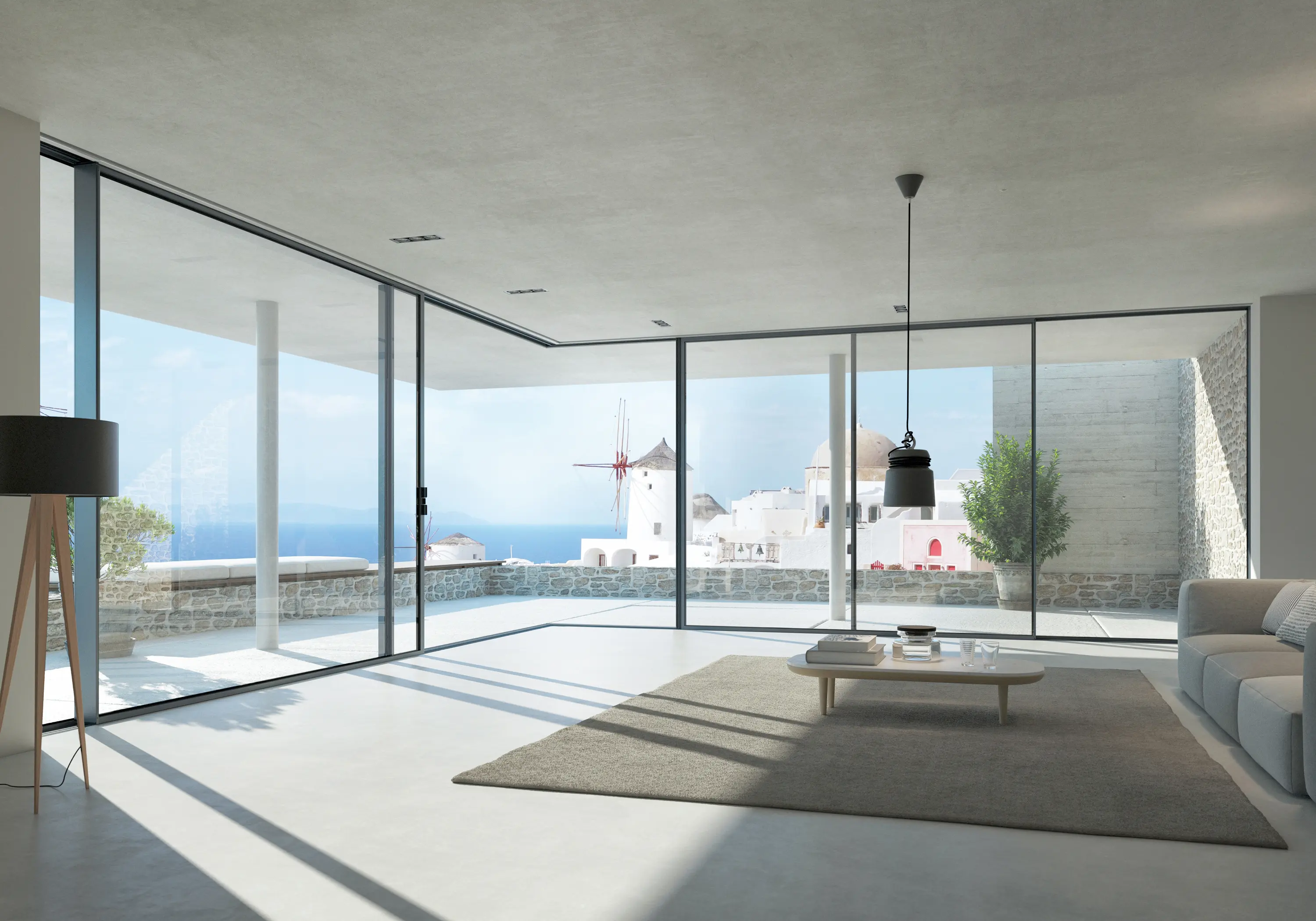

When open, the all-glass corner virtually dissolves into the building. In combination with the pocket door design, in which the open sliding vent disappears into the outer wall, the sliding system vanishes completely into the background, leaving only the pure panorama.
