P3A
About this product
Architonic ID: 1340747
Year of Launch: 2013
Description

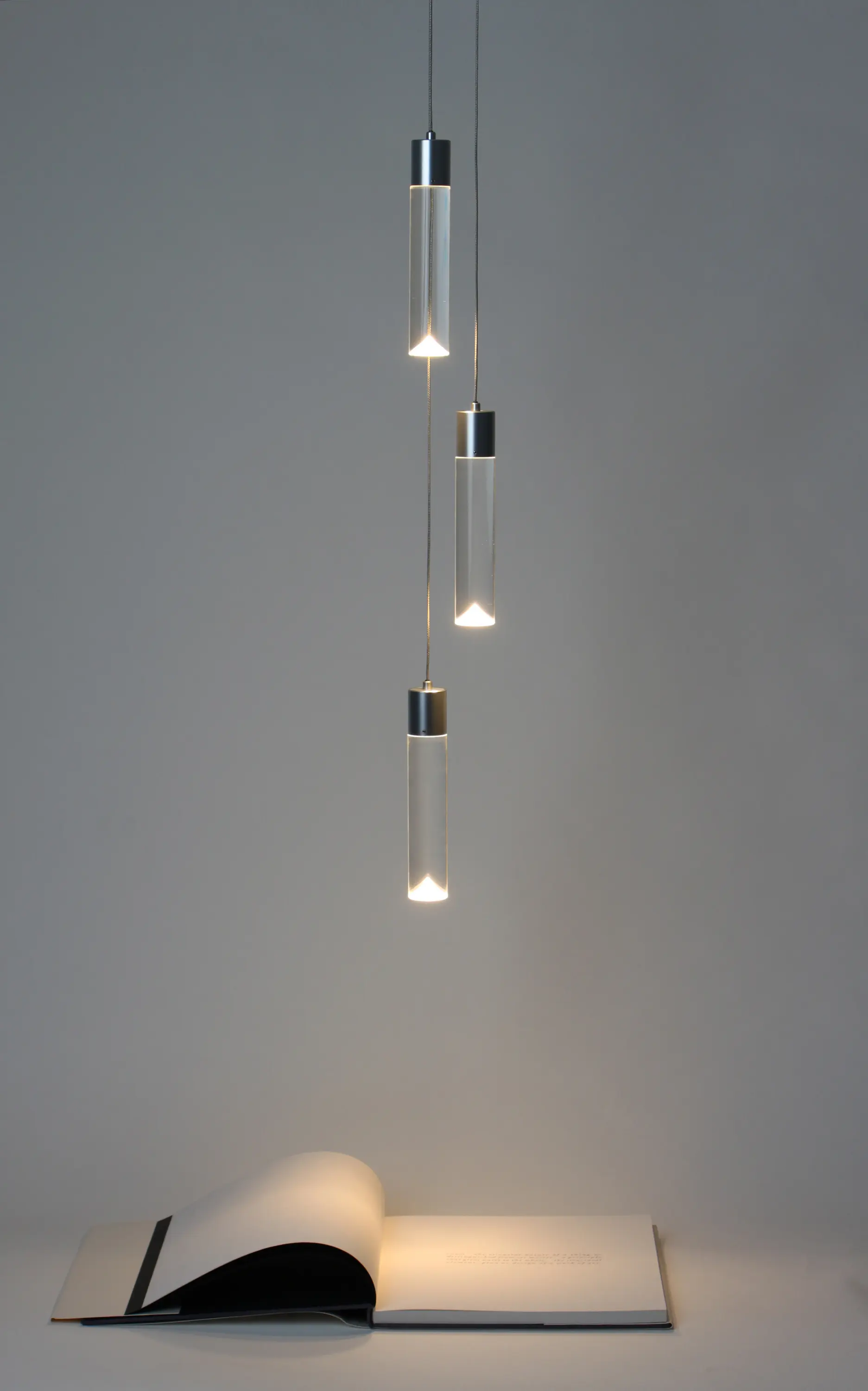

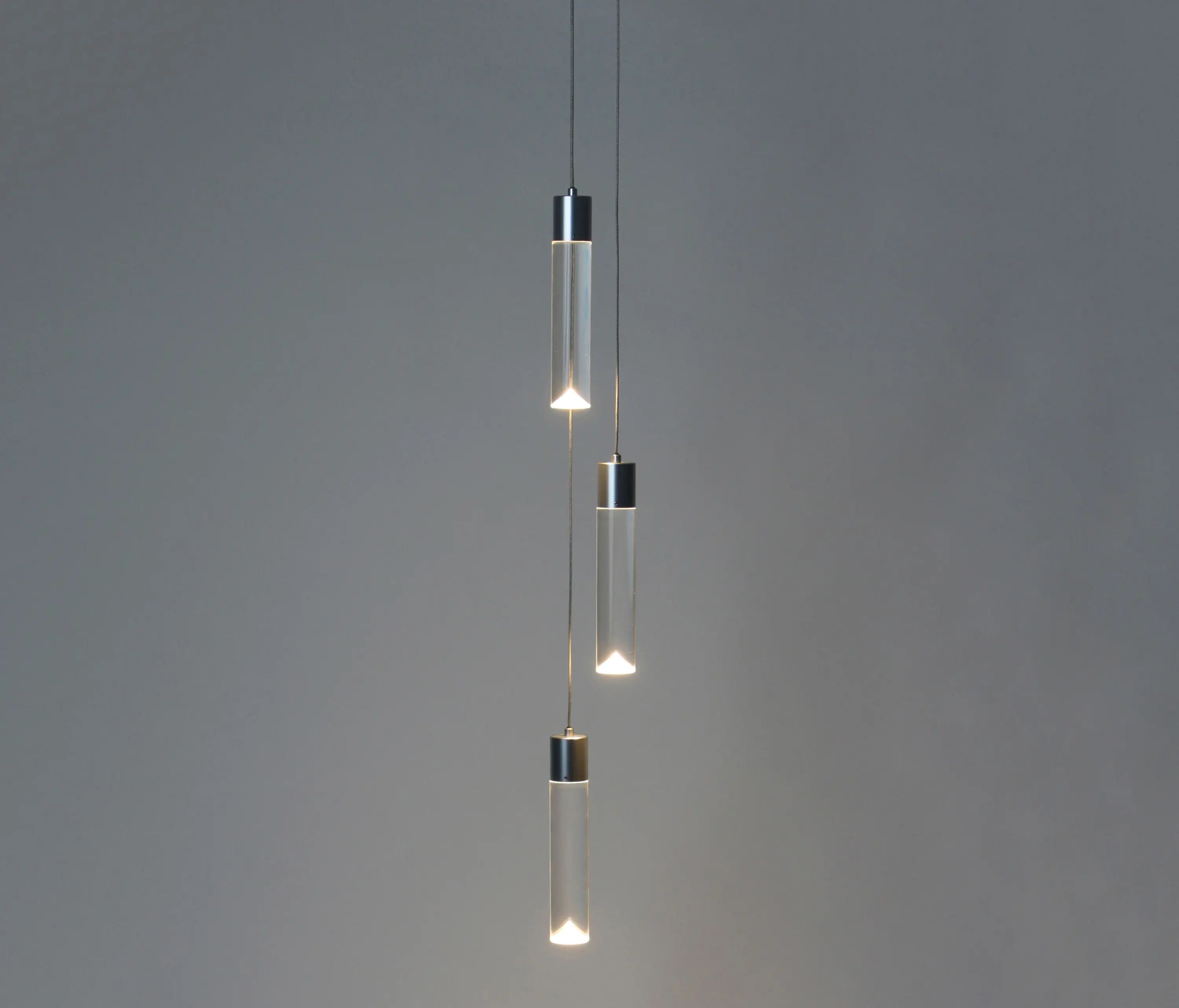

High efficiency LED decorative three pendant luminaire with machined aluminum housing and acrylic TIR light control lens. Mounts with 4.25″ diameter ceiling canopy.
Lamping
Dimmable Single 2 watt LED, 150 lumens, 90 CRI, R9>50, 2700K (warm white color temperature)
Optional 3000K, 3500K color temperatures available
Cable Length
120″(3048mm) suspension cable provided standard. Field adjustable.
Metal finish
Clear anodized aluminum (Standard Finish)
Black, Champagne, Gold anodized finishes available
Light Distribution Optics
Clear lens with diffuse optics
Clear lens with concentric optics (Optional)
Satin finish with diffuse optics (Optional)
Electrical
Constant current class 2 driver (0-10V dimmable), 120/277V 50/60Hz, 700mA (sold separately). See D8_700 remote driver spec sheet for details.
Approvals
Approved to UL safety standards.
Concept
Dimmable LED pendant

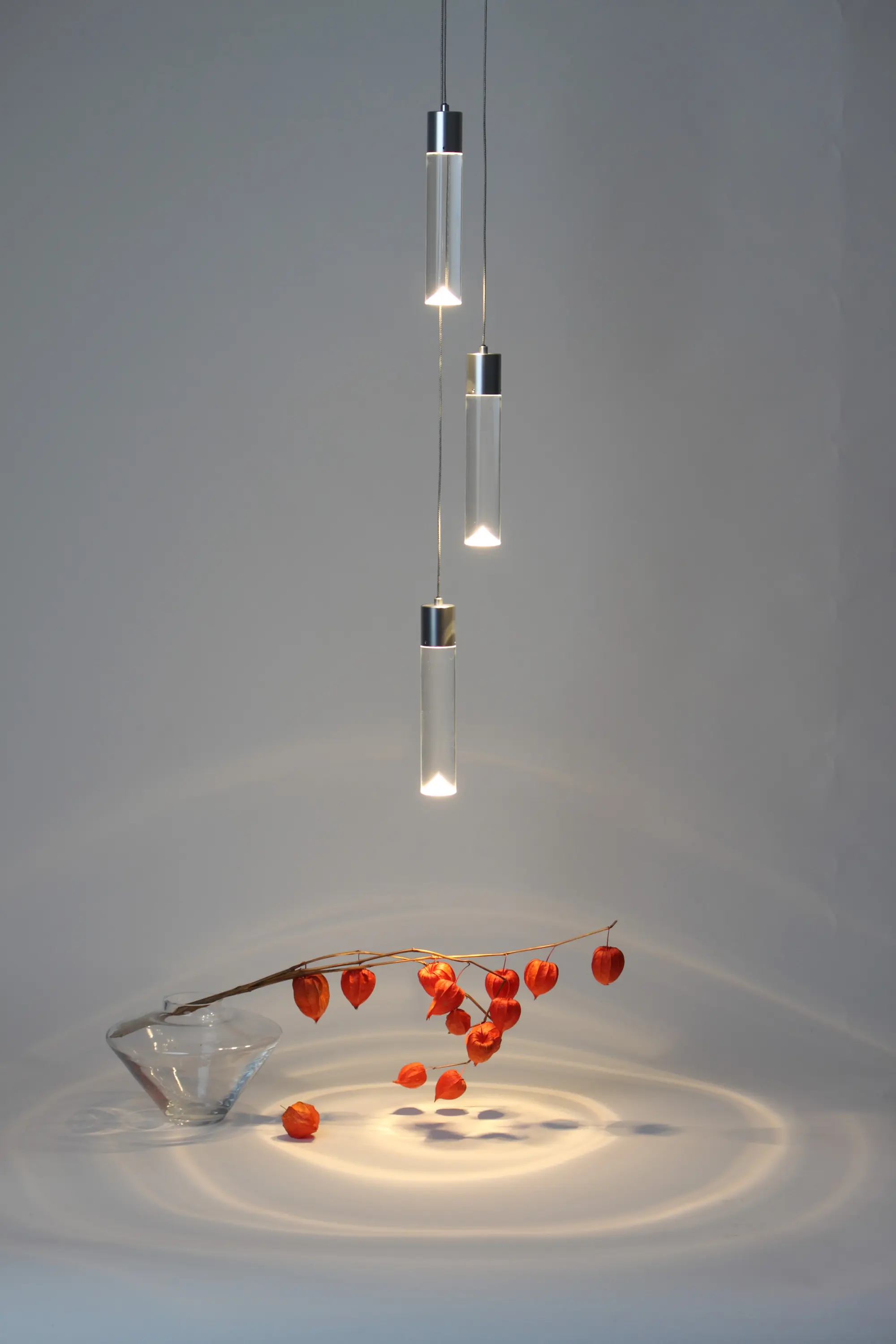

This asymmetrical three light dimmable LED pendant luminaire provides flattering illumiantion and highlights. Ideal for illumination at counter and bar areas, or in clustered formations creating accent chandeliers in entrance and dining areas. A classic design featuring a clear cylindrical lens with conical light diffuser produces two lighting effects: diffuse illumination, creating pools of light; or concentric highlights, evoking water drops falling on water for a dazzling accent.
