Satellite #152

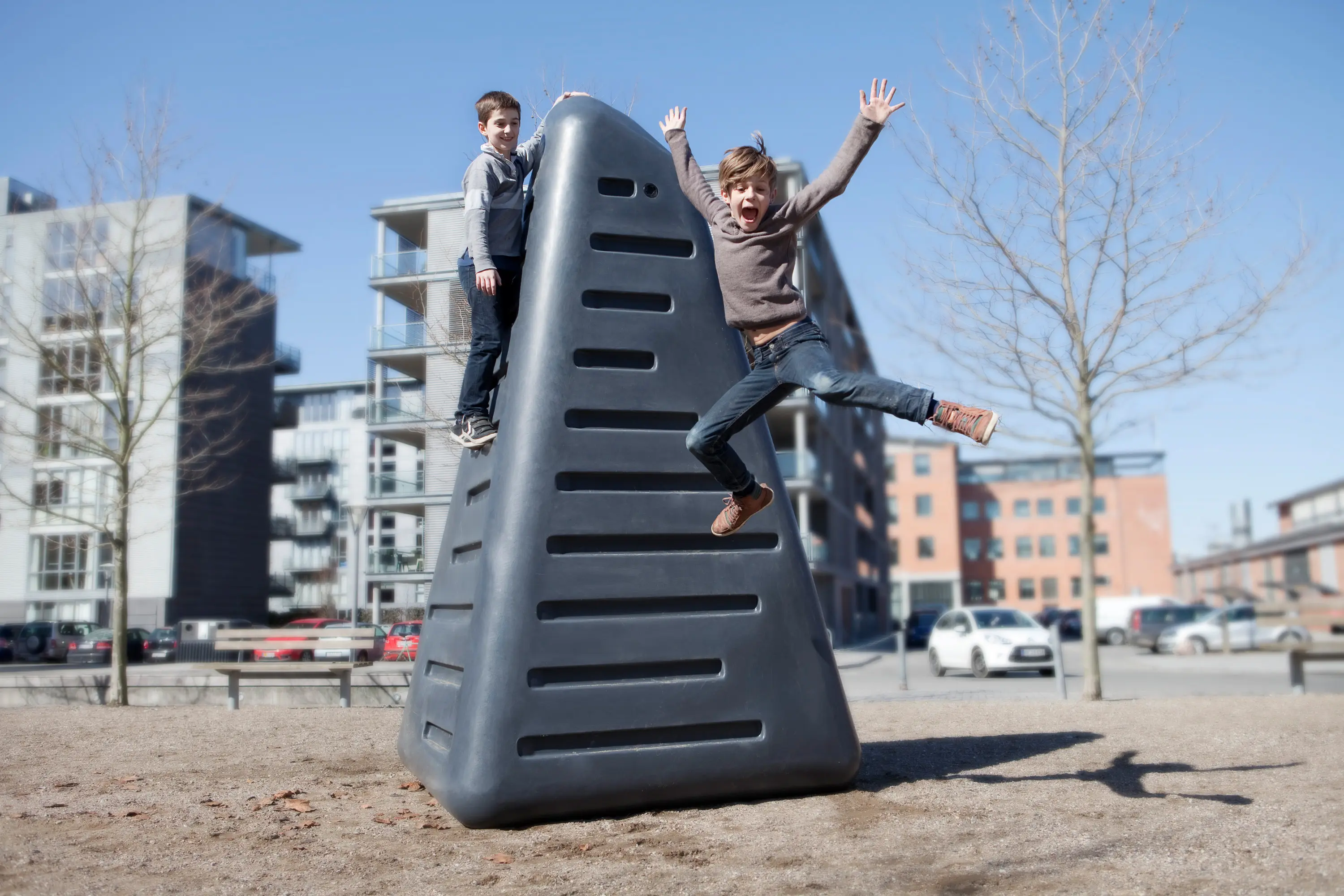

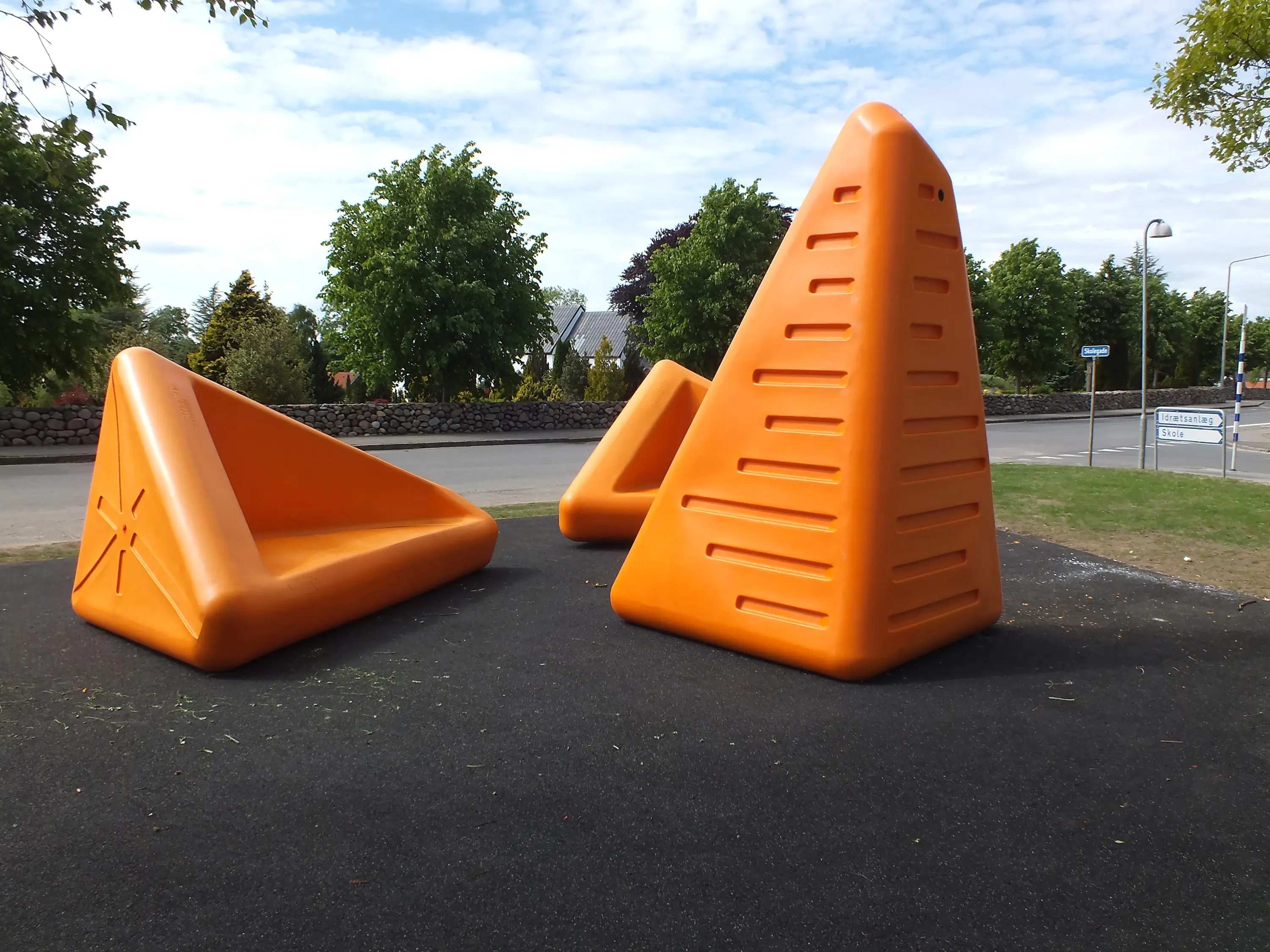

Satellite is a new and challenging urban element that adapt the way children and young people are behaving in urban spaces. Relaxation and movement combined into a single piece of furniture. Satellite can be setup in 4 different ways, which enables the user to sit in the cave, train parkour or use the ribs for climbing when the satellite is upright. An ideal lineup consists of 2-3 Satellites that create a special urban space.

TECHNICAL DATA

Material

Rotation moulded polyethylene, 10-12 mm thick, dyed. Moulded in one piece. UV-resistant, stands up to weather, wear and tear. The material is suitable for granulation and recycling.

Authentication

Loop Line is TÜV approved as playground equipment acc. EN1176.

Dimensions

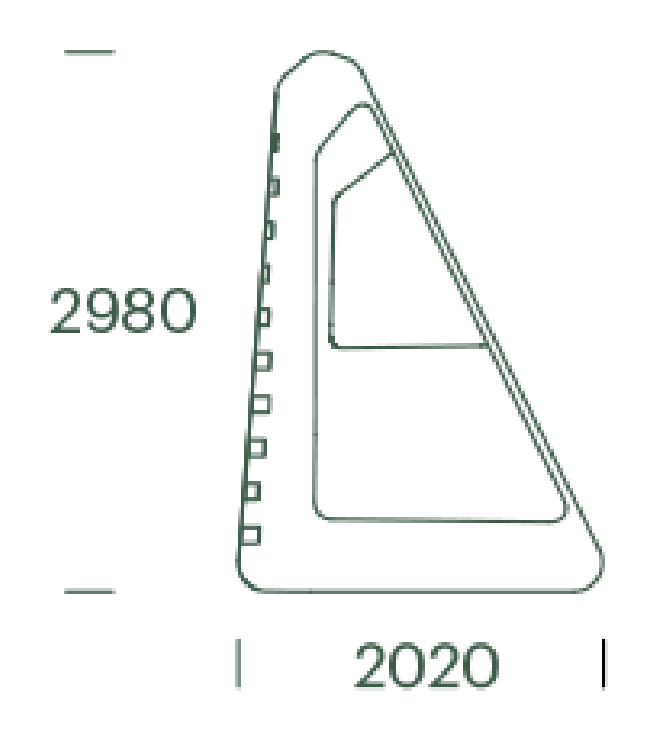

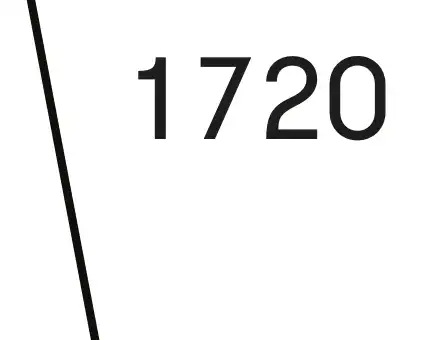

2980 x 1720 x 2020mm

Fixation

To be placed directly on the ground and filled 1/3 with water (400 liter) or sand (400 kg). In upright position the Satellite must be secured by surface or burial brackets – to be ordred separately.

Maintenance

This product withstands most cleaning agents and chemicals and can be cleaned using a high-pressure cleaner. The colour can be revived using vinyl cleaner or similar.

Product code

152 0101 Satellite red /165kg

152 0102 Satellite limegreen / 165kg

152 0103 Satellite orange / 165kg

152 0104 Satellite yellow / 165kg

152 0109 Satellite purple / 165kg

152 0113 Satellite grey / 165kg

152 0117 Satellite blue / 165kg

152 0115 Satellite pastel blue / 165kg

152 0116 Satellite mokka brown / 165kg

152 0118 Satellite olive green / 165kg

900B2 Brackets for ground fixation

900B3 Brackets for surface fixation

Standard colours (approx. RAL)

Red: RAL 3020

Limegreen: RAL 120 70 60

Orange: RAL 2003

Variant colours (approx. RAL)

Yellow: RAL 1018

Purple: RAL 4004

Grey: RAL 7015

Blue: RAL 5010

Pastel blue: RAL 5024

Mokka brown: RAL 8028

Olive green: RAL 6025
