Loop Playfield #174

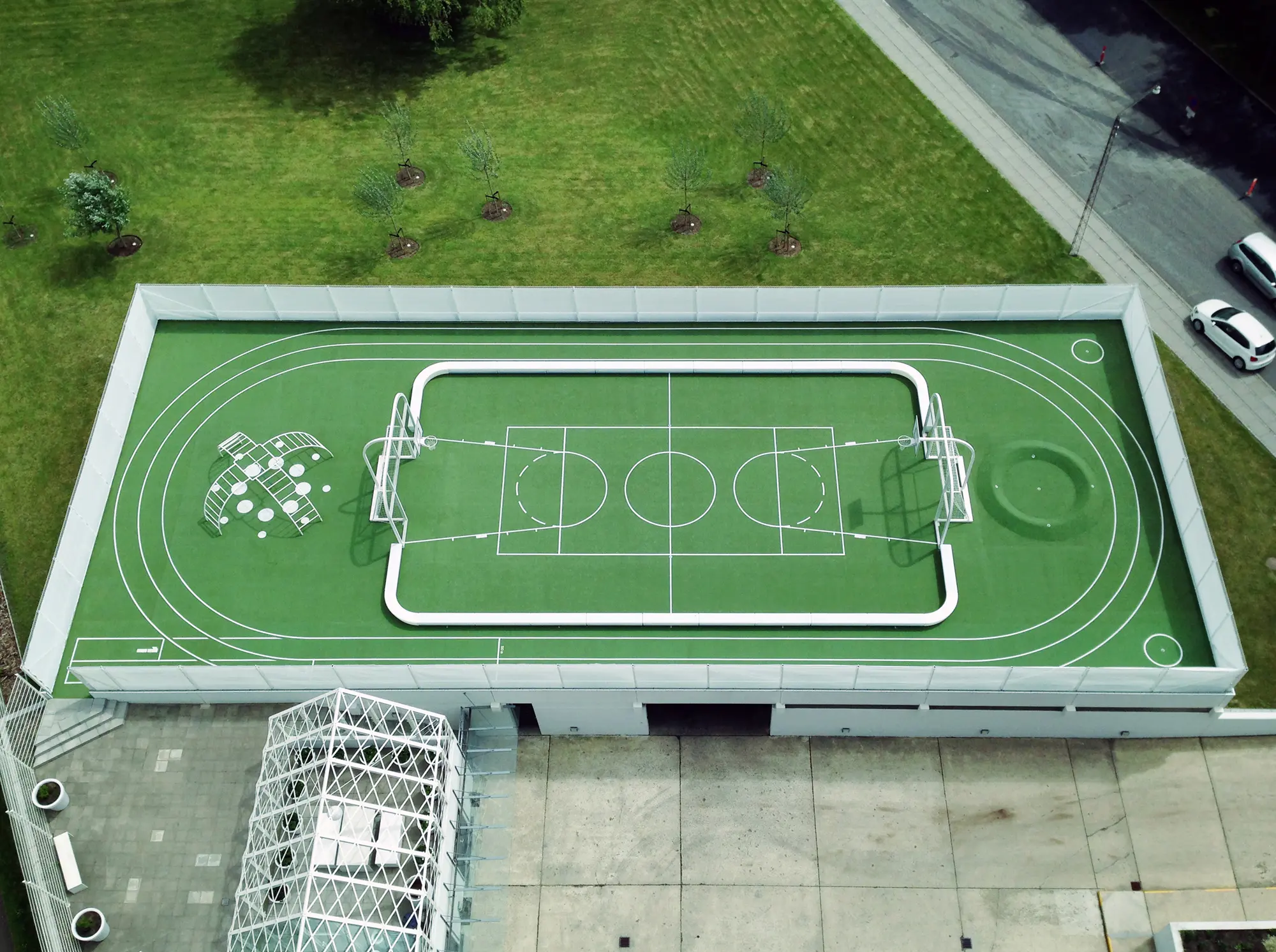

Loop Corner and Loop Line can be combined to create permanent or temporary ball courts for urban spaces and schoolyards or to delimit a space. Like the rest of the Loop family, they invite passers-by to sit, chat and observe urban life.

TECHNICAL DATA

Material

Rotation moulded polyethylene, 8 mm thick, dyed. Moulded in one piece. UV-resistant, stands up to weather, wear and tear. The material is suitable for granulation and recycling.

Surfaces and friction

The products have a textured/granulated surface due to abrasive blasting of the mold. This process enhances the friction and makes the surface less slippery.

Authentication

Loop Line is TÜV approved as playground equipment acc. EN1176.

Dimensions

Loop Playfield is composed from Loop Line and Loop Corner modules

Loop Line: L2000 x H400mm / Volume: 240 liter

Loop Corner: L1400xW1400mmxH400mm / Volume: 250 liter

Combinations

Loop Line and Loop Corner can be combined to create many different sizes of ball courts.

Assembly

The modules are joined with brackets (B4) at either end. Please note that the shape of Loop Line does not permit it to stand alone unfastened. It must be attached to the ground or to a Loop Arc at either end. Brackets to be ordred separately.

Recycled and ecolabelled*

Recycled version is made from 100% recycled polyethylene plastic, of which 85% comes from internal waste and production surplus, while 15% comes from. polyethylene bags.

Recycled version is ecolabelled, promoting circular economy and fulfils UN’s sustainable development goal no.12 – Responsible consumption and production.

Recycled version is available in anthracite variant, yet colour can vary from order to order.

Maintenance

This product withstands most cleaning agents and chemicals and can be cleaned using a high-pressure cleaner. The colour can be revived using vinyl cleaner or similar.

Product code

174 Loop Playfield I, 4.8 x 10.8m

174 Loop Playfield II, 10.8 x 18.8m

174 Loop Playfield III, 12.8 x 24.8m

174 Loop Playfield IIII, 16.8 x 28.8m

900B2 Brackets for ground fixation

900B3 Brackets for surface fixation

900B5 Brackets for ground fixation, transverse f. Loop Line

900B6 Brackets for surface fixation, transverse f. Loop Line

900B4 Connection bracket

900R1 Rubberfeets

Standard colours (approx. RAL)

Red: RAL 3020

Limegreen: RAL 120 70 60

Orange: RAL 2003

Variant colours (approx. RAL)

Yellow: RAL 1018

Purple: RAL 4004

Sandstone

Grey: RAL 7015

Blue: RAL 5010

Pastel blue: RAL 5024

Mokka brown: RAL 8028

Olive green: RAL 6025

White: RAL 9003 Recycled: Anthracite*
