Loop Line #140

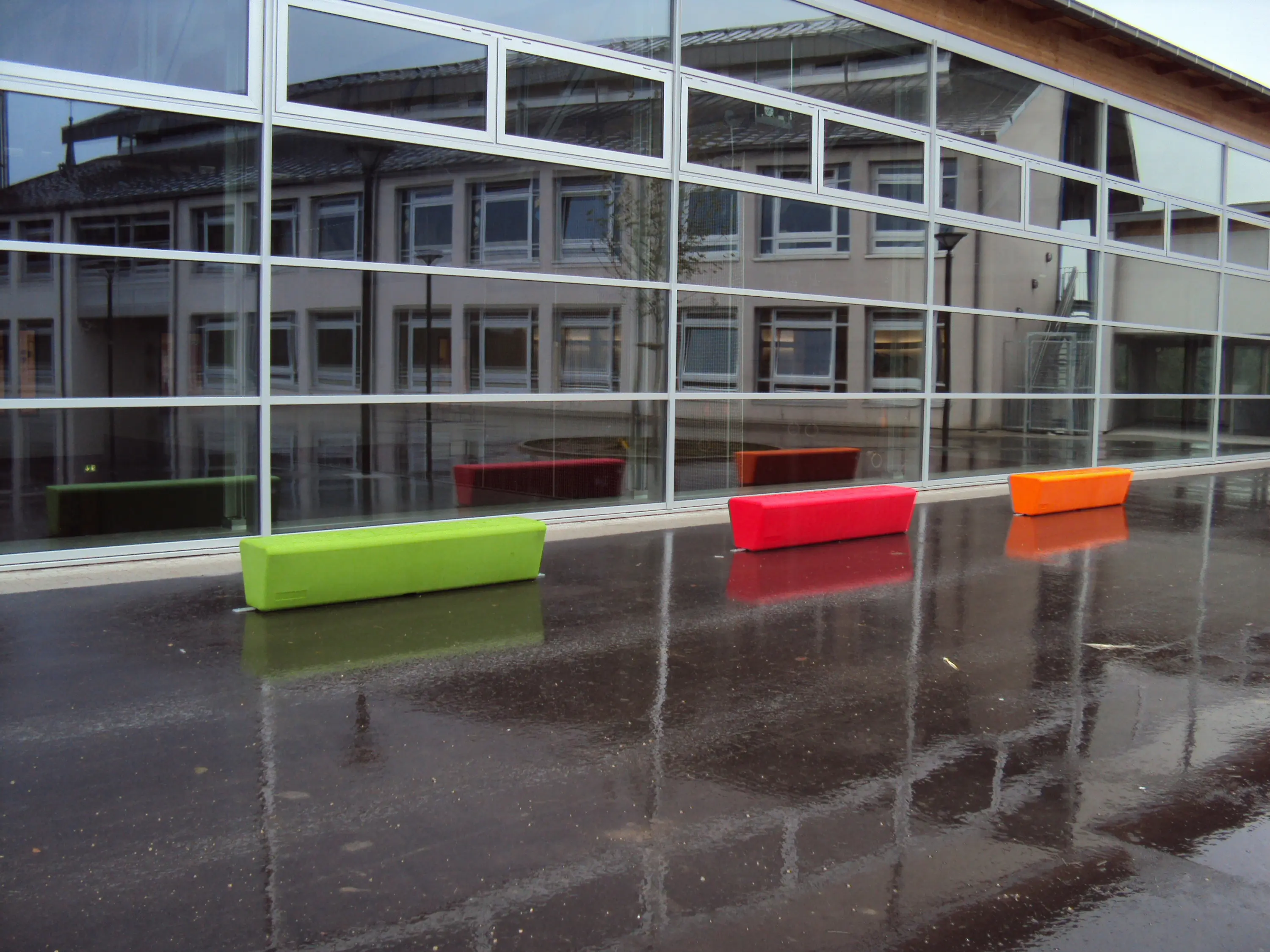

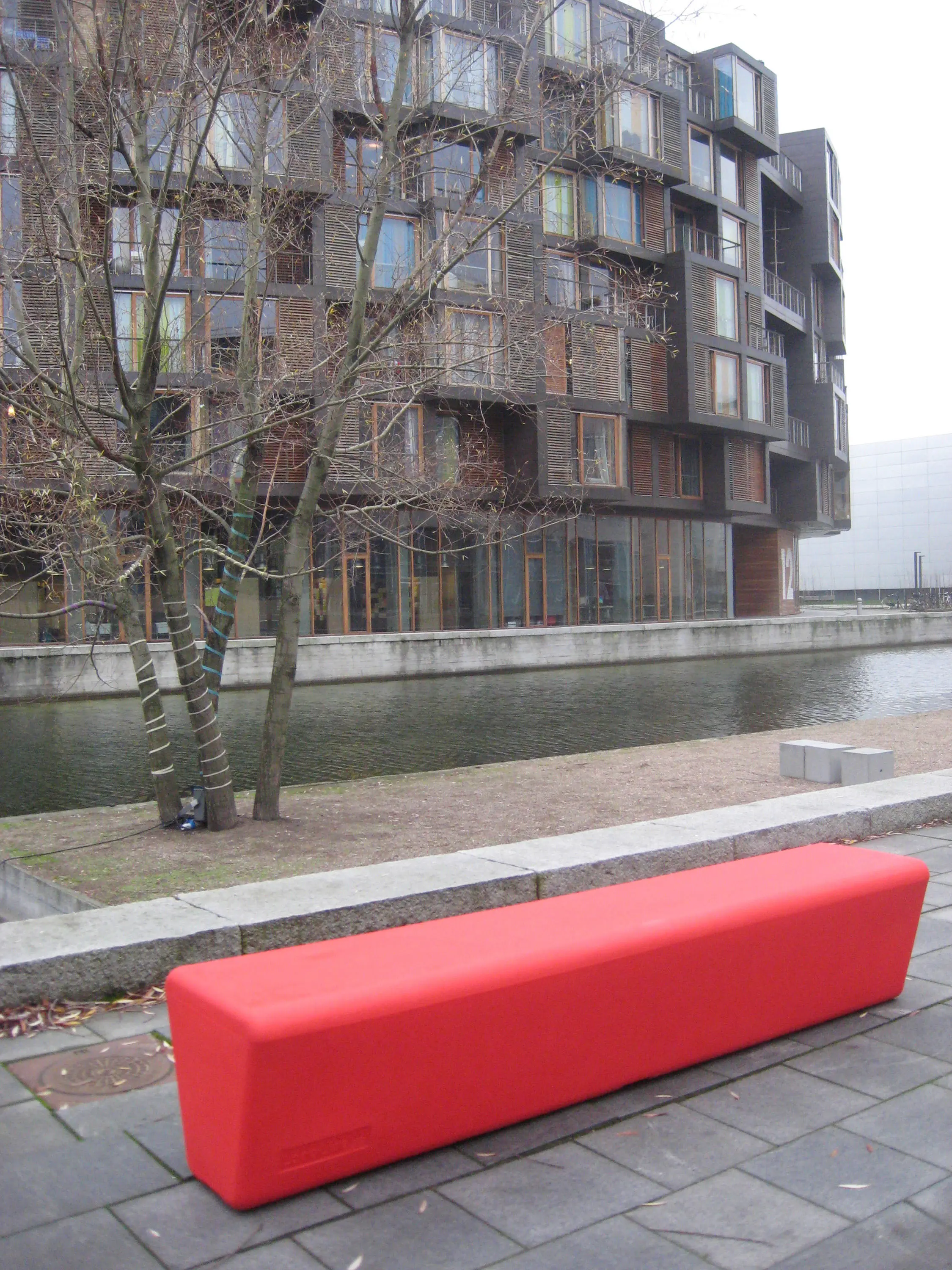

Loop Line is the latest member of the Loop-family. Made to function independently as well as in combination. Standing alone, the solid form has no hollows or sharp edges to gather dirt or grime. It combines with Loop Arc to form a triangle, the letter S or any number of other customised solutions.

TECHNICAL DATA

Material

Rotation moulded polyethylene, 8 mm thick, dyed. Moulded in one piece. UV-resistant, stands up to weather, wear and tear. The material is suitable for granulation and recycling.

Surfaces and friction

The products have a textured/granulated surface due to abrasive blasting of the mold. This process enhances the friction and makes the surface less slippery.

Authentication

TÜV approved as playground equipment acc. EN1176.Dimensions

Dimensions

L2000 x H400mm.

Volume: 240L

Assembling & fixation

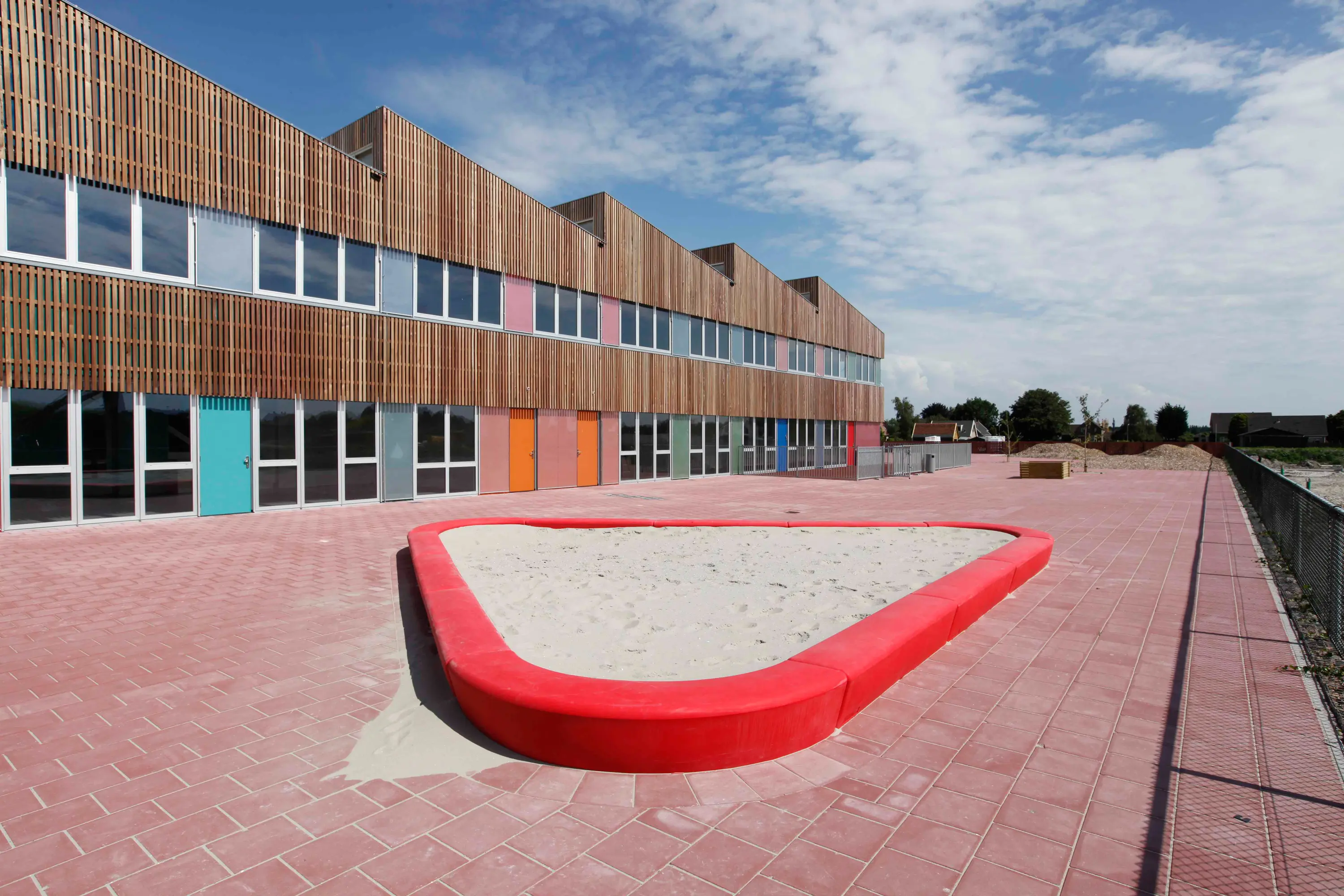

Loop Line combines with #137 Loop Arc to form an S, a triangle, and a number of other shapes.

The modules are joined with brackets (B4) at either end.

Please note that the shape of Loop Line does not permit it to stand alone unfastened. It must be attached to the ground or to a Loop Arc at either end. Brackets to be ordred separately.

Recycled and ecolabelled*

Recycled version is made from 100% recycled polyethylene plastic, of which 85% comes from internal waste and production surplus, while 15% comes from. polyethylene bags.

Recycled version is ecolabelled, promoting circular economy and fulfils UN’s sustainable development goal no.12 – Responsible consumption and production.

Recycled version is available in anthracite variant, yet colour can vary from order to order.

Maintenance

This product withstands most cleaning agents and chemicals and can be cleaned using a high-pressure cleaner. The colour can be revived using vinyl cleaner or similar

Product code

140 0201 Loop Line red / 20kg

140 0202 Loop Line limegreen / 20kg

140 0203 Loop Line orange / 20kg

140 0204 Loop Line yellow / 20kg

140 0209 Loop Line purple / 20kg

140 0211 Loop Line sandstone / 20kg

140 0213 Loop Line grey / 20kg

140 0217 Loop Line blue / 20kg

140 0215 Loop Line pastel blue / 20kg

140 0216 Loop Line mokka brown / 20kg

140 0218 Loop Line olive green / 20kg

140 0250 Loop Line white / 20kg

140 0220 LOOP Line recycled anthracite / 20kg 900B2 Brackets for ground fixation

900B3 Brackets for surface fixation

900B5 Brackets for ground fixation, transverse

900B6 Brackets for surface fixation, transverse

900B4 Connection bracket

900R Rubberfeets

Standard colours (approx. RAL)

Red: RAL 3020

Limegreen: RAL 120 70 60

Orange: RAL 2003

Variant colours (approx. RAL)

Yellow: RAL 1018

Purple: RAL 4004

Sandstone

Grey: RAL 7015

Blue: RAL 5010

Pastel blue: RAL 5024

Mokka brown: RAL 8028

Olive green: RAL 6025

White: RAL 9003 Recycled: Anthracite*
