Loop Corner #171

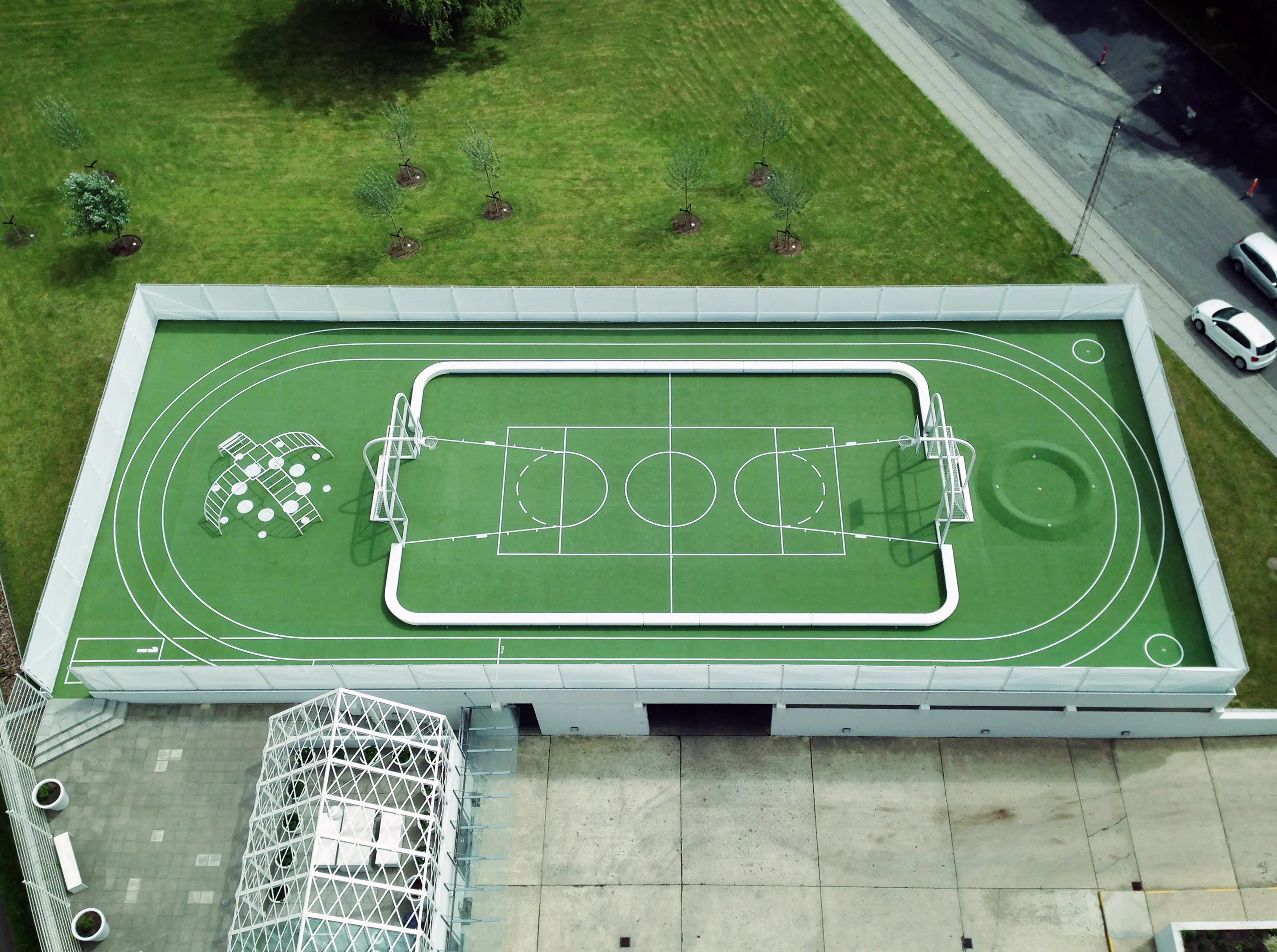

Loop Corner is a new member of the Loop family. The 90-degree module combines with Loop Line to delimit a ball court or a sandbox while also providing seating. Loop Corner is also designed for use as a number of differently shaped benches. For example 4 modules can be combined to create a square, while 3 Loop Arc modules form a circle.

TECHNICAL DATA

Material

Rotation moulded polyethylene, 6 mm thick, dyed.

UV-resistant, stands up to weather, wear and tear. The material is suitable for granulation and recycling.

Surfaces and friction

The products have a textured/granulated surface due to abrasive blasting of the mold. This process enhances the friction and makes the surface less slippery. Top: Smooth surface.

Dimensions

One module: L1400xB1400mmxH400mm, width (cross section): 400mm

Volume: 250 litres

3-4 seats inside / 4-5 seats outside

Combinations

Form Loop Corner like an ”O” (square, 4 modules), like a “C” (2 modules), or like a “S” (2 or more modules). Also combine Loop Corner with Loop Line and Loop Arc.

Assembling & fixation

The modules are joined with brackets (B4) at either end.

Fill them with water (160 liter) / sand (265 kg) or fasten them to the ground. Brackets to be ordred separately.

Recycled and ecolabelled*

Recycled version is made from 100% recycled polyethylene plastic, of which 85% comes from internal waste and production surplus, while 15% comes from. polyethylene bags.

Recycled version is ecolabelled, promoting circular economy and fulfils UN’s sustainable development goal no.12 – Responsible consumption and production.

Recycled version is available in anthracite variant, yet colour can vary from order to order.

Maintenance

This product withstands most cleaning agents and chemicals and can be cleaned using a high-pressure cleaner. The colour can be revived using vinyl cleaner.

Product code

171 0101 Loop Corner red / 22kg

171 0102 Loop Corner limegreen / 22kg

171 0103 Loop Corner orange / 22kg

171 0104 Loop Corner yellow / 22kg

171 0109 Loop Corner purple / 22kg

171 0111 Loop Corner sandstone / 22kg

171 0113 Loop Corner grey / 22kg

171 0117 Loop Corner blue / 22kg

171 0115 Loop Corner pastel blue / 22kg

171 0116 Loop Corner mokka brown / 22kg

171 0118 Loop Corner olive green / 22kg

171 0150 Loop Corner white / 22kg

171 0120 Loop Corner recycled anthracite / 22kg 900B2 Brackets for ground fixation

900B3 Brackets for surface fixation

900B4 Connection bracket

900R1 Rubberfeets

Standard colours (approx. RAL)

Red: RAL 3020

Orange: RAL 2003

Limegreen: RAL 120 70 60

Variant colours (approx. RAL)

Yellow: RAL 1018

Purple: RAL 4004

Sandstone

Grey: RAL 7015

Blue: RAL 5010

Pastel blue: RAL 5024

Mokka brown: RAL 8028

Olive green: RAL 6025

White: RAL 9003 Recycled: Anthracite*
