One Plus
About this product
Architonic ID: 20246455
Year of Launch: 2018

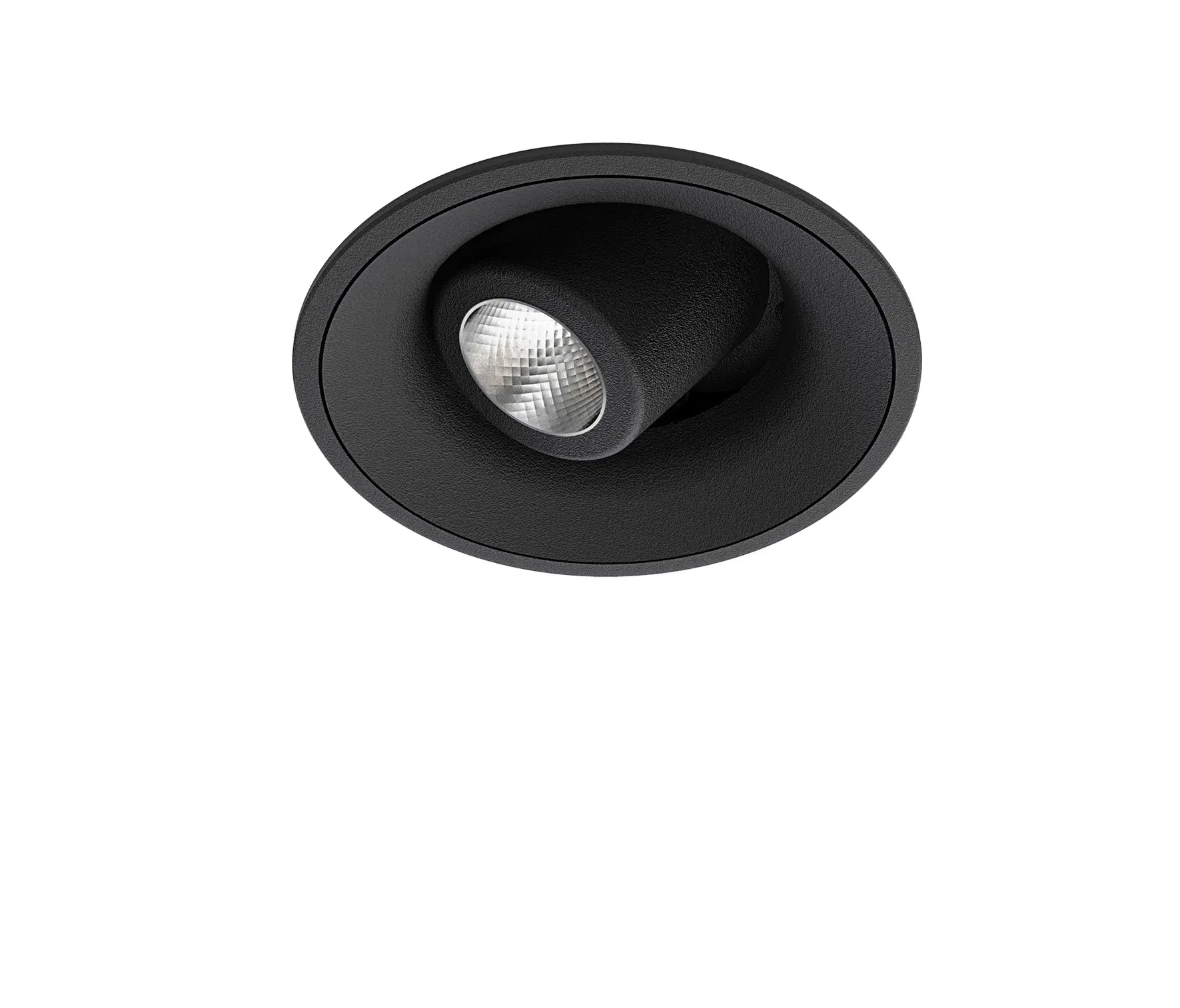

Ceiling-recessed luminaire with die-cast aluminium body and heat sink.
Orientable by 30° (medium version) or 25° (flood version) horizontal rotation and 355º vertical rotation.
Reflector built based on micro surfaces with complex geometry coated with aluminium alloy, creating a high-gloss, entirely mirrored surface. Accurate reflector for a defined and controlled beam of light, achieving the maximum efficiency.
Reduced height <67mm.
Recessing accessory for trimless version supplied separately.
LED CRI>90 2700K, 3000K, CRI>80 4000K. Tunable White (DT8 DALI driver).
>50.000h, L80/B10
2-step MacAdam
500mA power supply included. Drivers On/Off or DALI.
IP20 | 230Vac | 50/60Hz
Dimensions:
Ø95x67mm
Finishes: Black
Concept

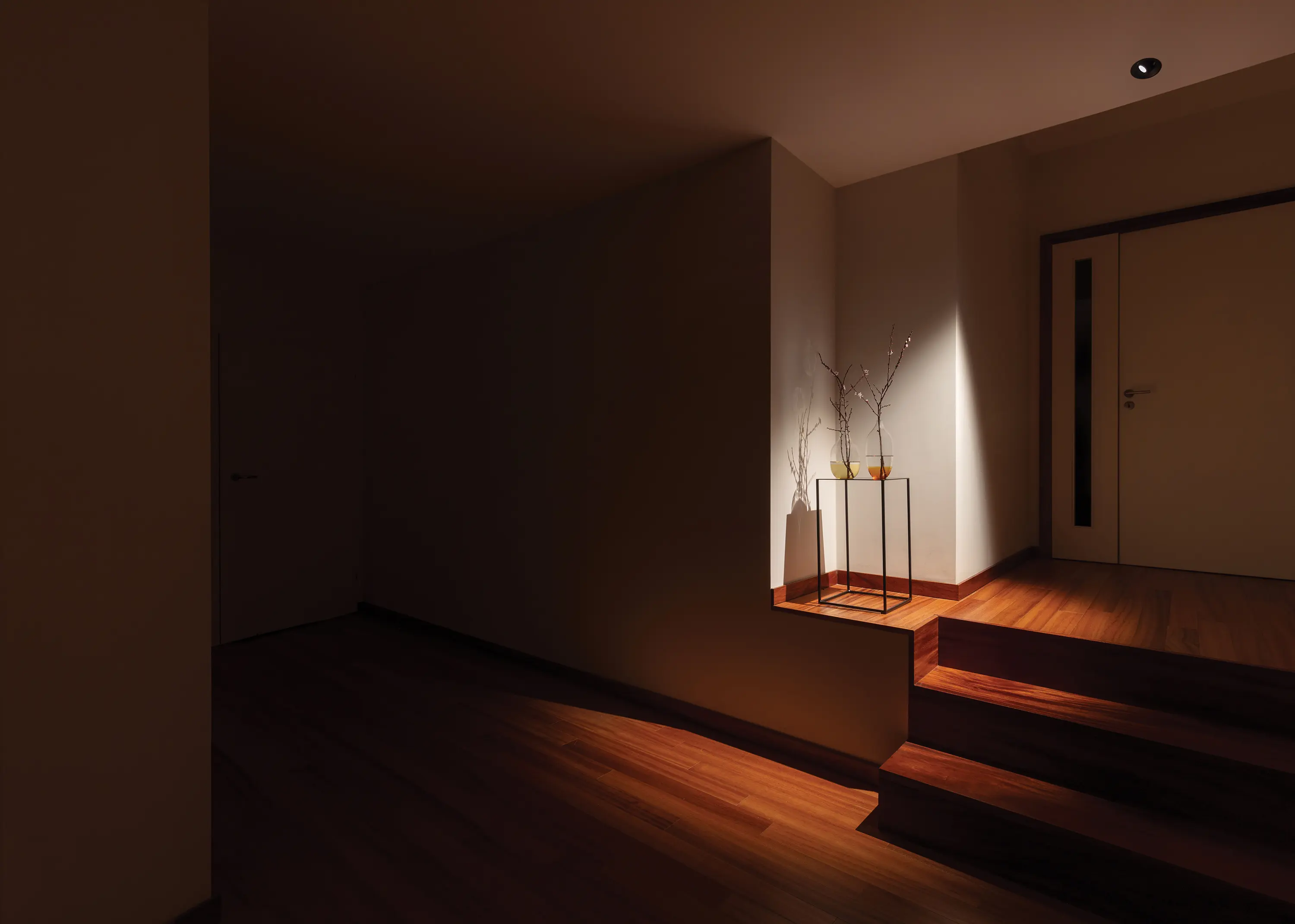

The adjustable One Plus can be angled in any direction, without affecting its 90% luminous intensity beam, providing beam orientation with the same high-definition Lightcore optical engine as the premium One.
