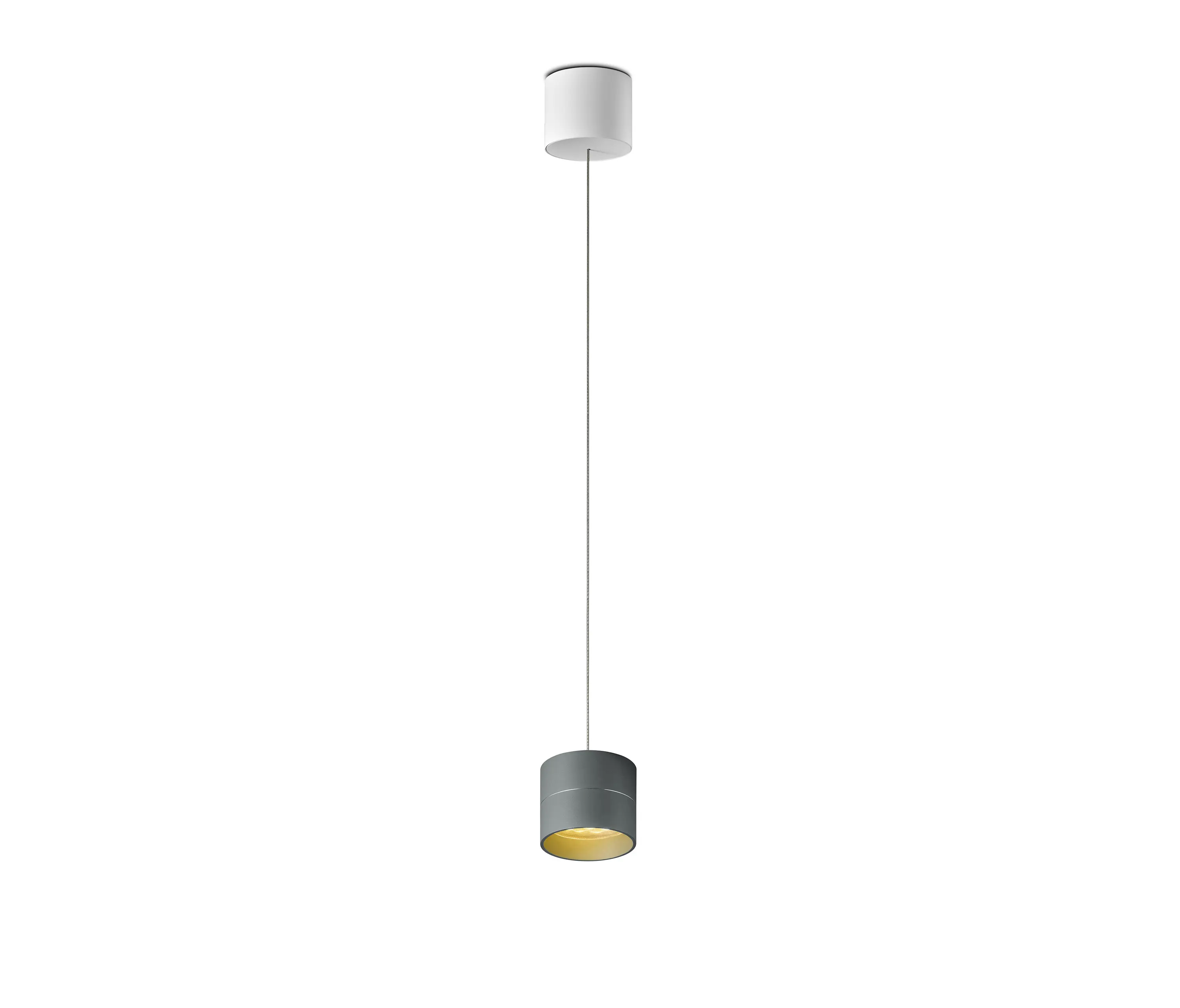

Tudor S - Pendant luminaire

TUDOR pendant luminaire

Modular luminaire, free colour combination of pendant modules and canopies

Variants: single, double, triple

Pendant modules:

Up/Downlight

Touchdimmer, Casambi control (Bluetooth), Tunable White

Performance data: LED / 2200-5000 K / 22 W / CRI> 90

Tudor S: 1350 lm / Ø 120, h 93 mm

Tudor M: 1300 lm / Ø 120, h 139 mm

Height adjustable between 0.7 and 2.3 m

Colours (head): Matt black / Gold-leaf optics, Matt grey, Matt white, Matt red, Champagne

Material: Aluminium, PMMA

Canopies:

Performance data: 220-240 V AC / 50-60 Hz / 24 V DC

Variants: Single (round), Double (beam-shaped), Triple (beam-shaped)

Colours (round): Matt white

Colours (beam-shaped): Matt white, Chrome, Brushed aluminium, Matt black

TUDOR ceiling luminaire

Casambi control (Bluetooth), Tunable White

Performance data: 100-240 V AC / 50-60 Hz / 24 V DC / LED / 2200-5000 K / 16 W / CRI >90

Tudor S : 1250 lm / Ø 120, h 93 mm

Tudor M: 1200 lm / Ø 120, h 139 mm

Material: Aluminium, PMMA

Colours: Matt black / Gold-leaf optics, Matt grey, Matt white, Matt red, Champagne

TUDOR wall luminaire

Up/Downlight

Casambi control (Bluetooth), Tunable White

Performance data: 120-240 V AC / 50/60 Hz / 24 V DC / LED / 2200-5000 K / 1100 lm / 18 W / CRI >90

Dimensions: Ø 120, h 93 mm

Material: Aluminium, PMMA

Colours: Matt black / Gold-leaf optics, Matt grey, Matt white, Matt red, Champagne
