Q Four 80°

Name: Q Four 80°
Brand: Nimbus
SKU: 557-836 (2700K, schwarz matt) 557-837 (3000K, schwarz matt) 557-838 (4000K, schwarz matt) 557-839 (2700 K, weiß matt) 557-840 (3000 K, weiß matt) 557-841 (4000 K, weiß matt)

Ceiling lightsbyNimbus

Help me find it

Visit product on Nimbus website

Home

Ceiling lights

Q Four 80°

About this product

Architonic ID: 20094779

SKU: 557-836 (2700K, schwarz matt) 557-837 (3000K, schwarz matt) 557-838 (4000K, schwarz matt) 557-839 (2700 K, weiß matt) 557-840 (3000 K, weiß matt) 557-841 (4000 K, weiß matt)

Year of Launch: 2018

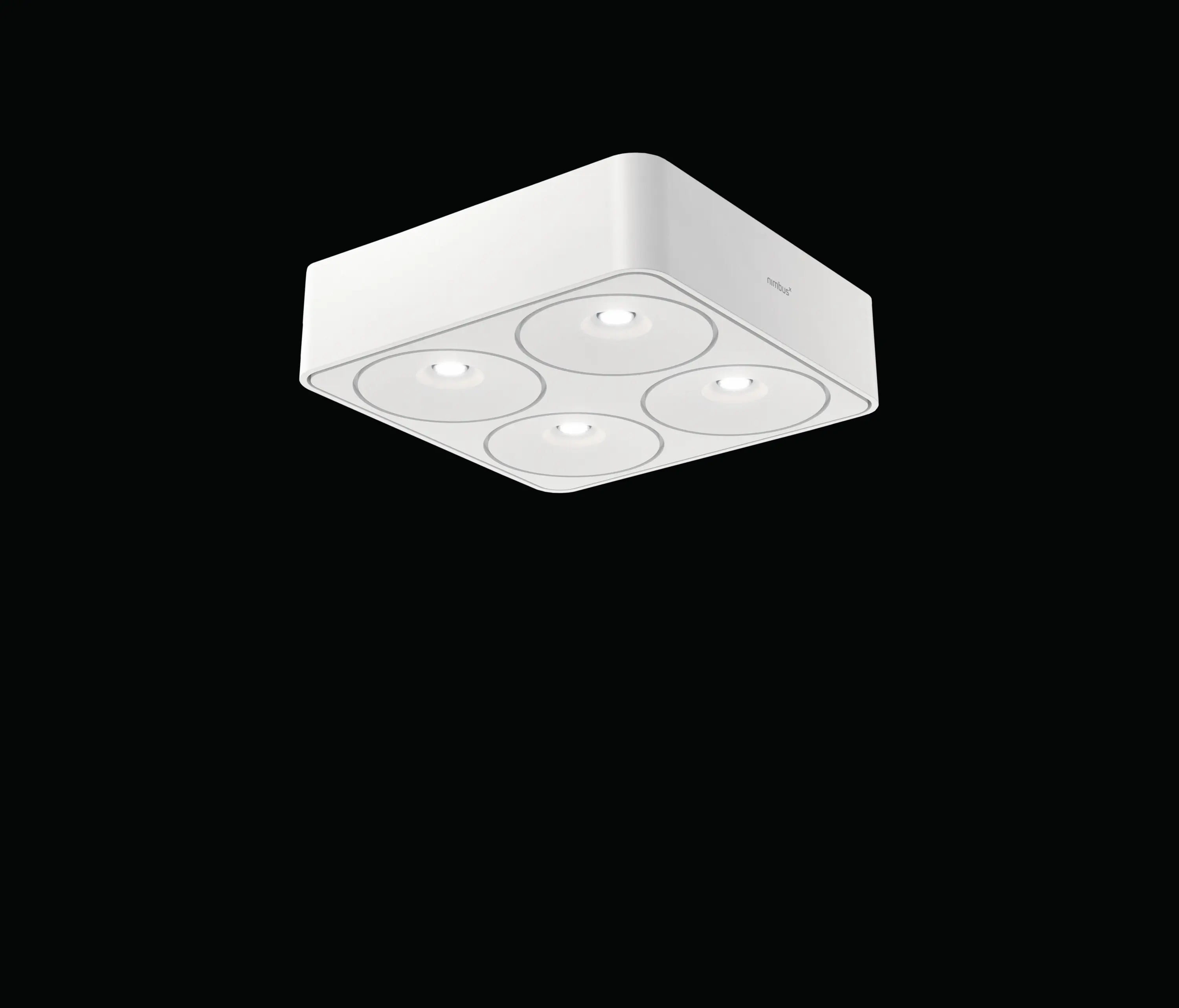

LED ceiling spot with flat cubic housing made of aluminium, 4 integrated Bartenbach lenses for focussing light and reducing glare, narrow beam (beam angle 80°) for accentuated illumination of surfaces and rooms, the full light performance thus appears on the illuminated area, body design formally adapting to the Nimbus families Q ONE and FRAME, operation by means of an external converter (within the scope of delivery), dimmable via DALI or via trailing/leading edge in combination with conventional wall dimmer. Q FOUR is a member of Nimbus's family of Modul Q luminaires. The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces.The minimalism so typical of Nimbus design is featured in the Spot Q FOUR, which blend in with the surrounding interior and is kept in timelessly elegant black or white.

Dimensions:

128 x 128 x 36

Technology:

LED-Technology

230 V AC (with converter):

2700 K max. 16,4 W A CRI > 90

3000 K max. 16,4 W A CRI > 90

4000 K max. 16,4 W A CRI > 90

Flux:

up tp 960 lm

Light distribution:

100 % direct beam

Protection type:

IP 20

Concept

Nimbus is now presenting the Q FOUR family – an evolution of Modul Q ceiling luminaires featuring a spot. The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces. The clear-cut, geometric basic shape of the proven Nimbus Modul Q family continues to constitute a characteristic design feature. Q FOUR is available from november 2018 onwards.

Nimbus has placed special focus on optimised and harmonious glare suppression. As light sources, the modules retreat completely into the background, the light shines "from behind the scenes". The compact modules integrate Bartenbach lenses with four high-performance LEDs. The luminaires blend in with the surrounding interior and are kept in timelessly elegant black or white.

This product belongs to collection:
