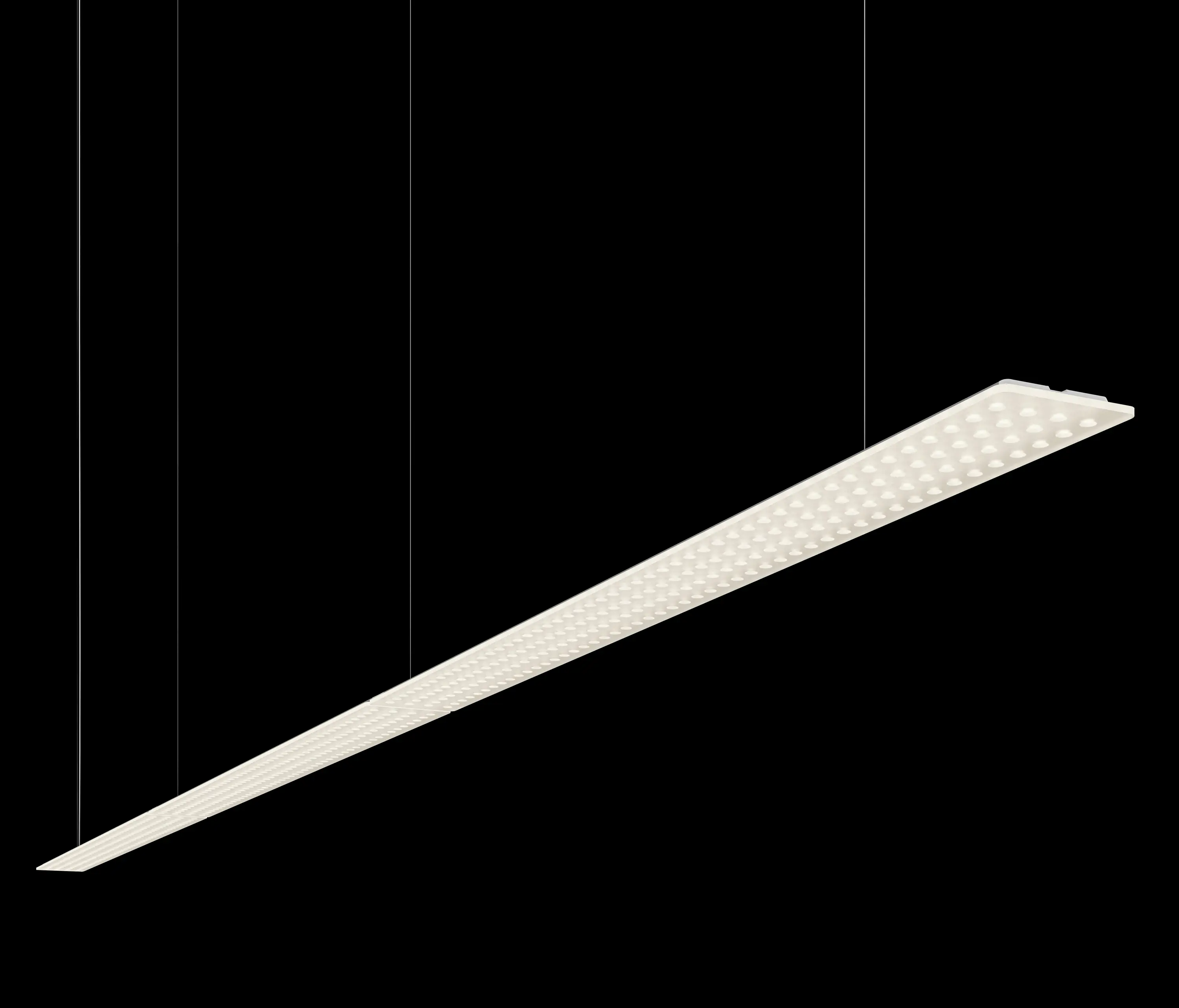

Modul L 196 Sequence 3 With Indirect Light
About this product
Architonic ID: 1269010
SKU: 545-859 (2700 K)/545-860 (3000 K)/545-861 (4000 K)
Year of Launch: 2014
Extremely slim, height-adjustable LED suspended luminaire for wide-area room lighting for offices and workplaces, sequence of three luminaire modules L 196, mechanical and electrical link by 2 connector elements, version with additional indirect lighting for atmospheric ceiling illumination, anodised Aluminium support, diffuser made of matt acrylic glass with conical indentations for directing light, glare reduction in accordance with DIN EN 12464-1, suitable for the workplace, 88 % direct beam, 12 % indirect beam, version for 24 volt or external converter, set includes 2 x modul connectors made of aluminium, white powder coated, 4 x stainless steel suspension cables, adjustable 100 – 1500 mm.
dimensions:
4536 x 135 x max. 1500 mm
LED technology, 82,5 W power supply, 24 V V DC
11400 lm
IP 20
Concept

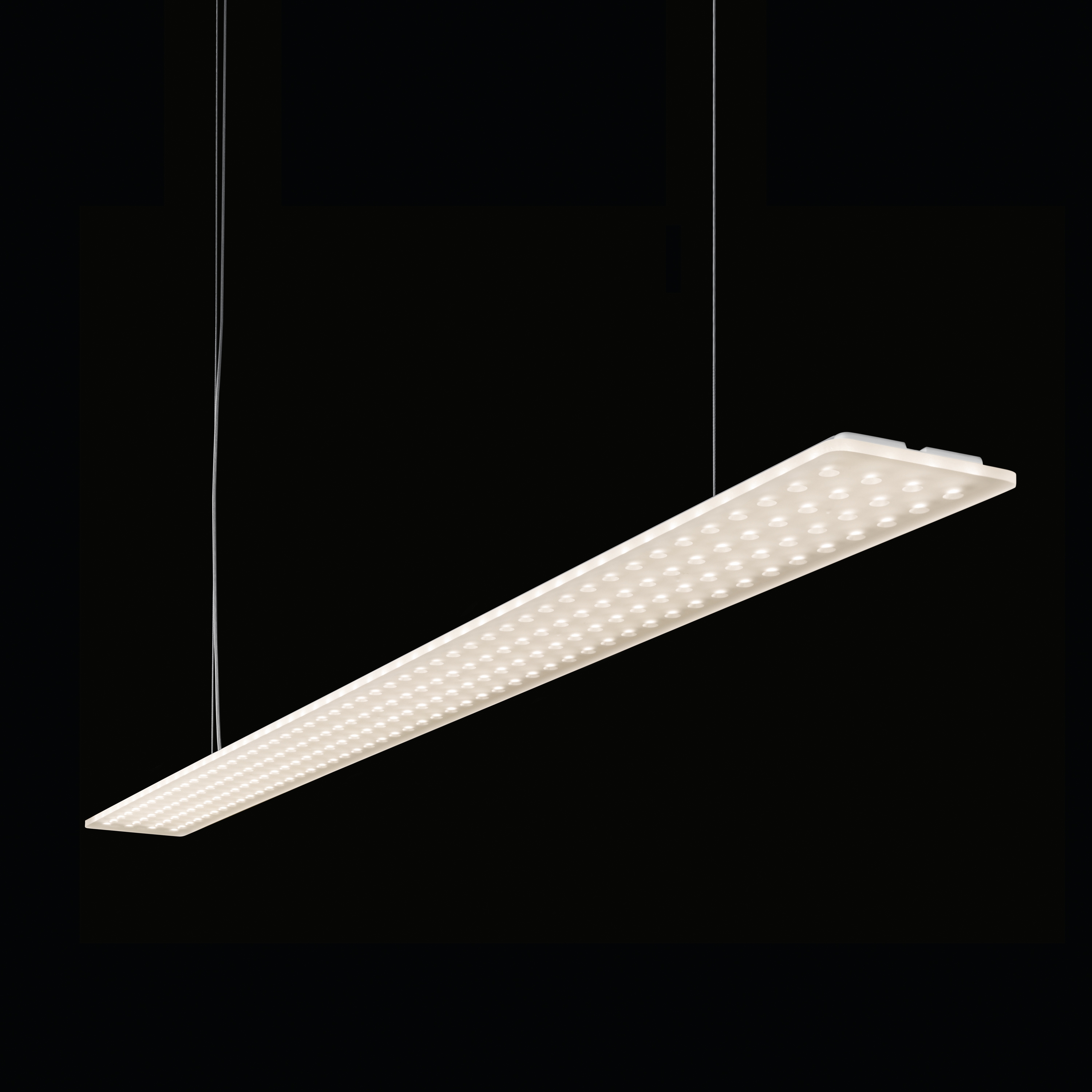

In terms of form, the new Modul L luminaires fit seamlessly into the Modul Q and R ranges and add an elongated suspended luminaire to the product family which provides efficient, wide-area room lighting for offices and workplaces. The individually suspendable Modul L 196 with its 40 watt power consumption is the perfect alternative to conventional louver luminaires. With a minimal height of just 19 mm, it fits in perfectly with the surrounding architecture and its optimised conical indentations provide a pleasant light in compliance with DIN 12464-1 specifications for glare suppression. Additional indirect lighting for atmospheric room illumination can be integrated in the extremely slim central technical channel of the Modul L 196.
This product belongs to collection:
Specifications
Material
Acrylic, Aluminium, Metal, Plastic
