Mondrian | Tree grate

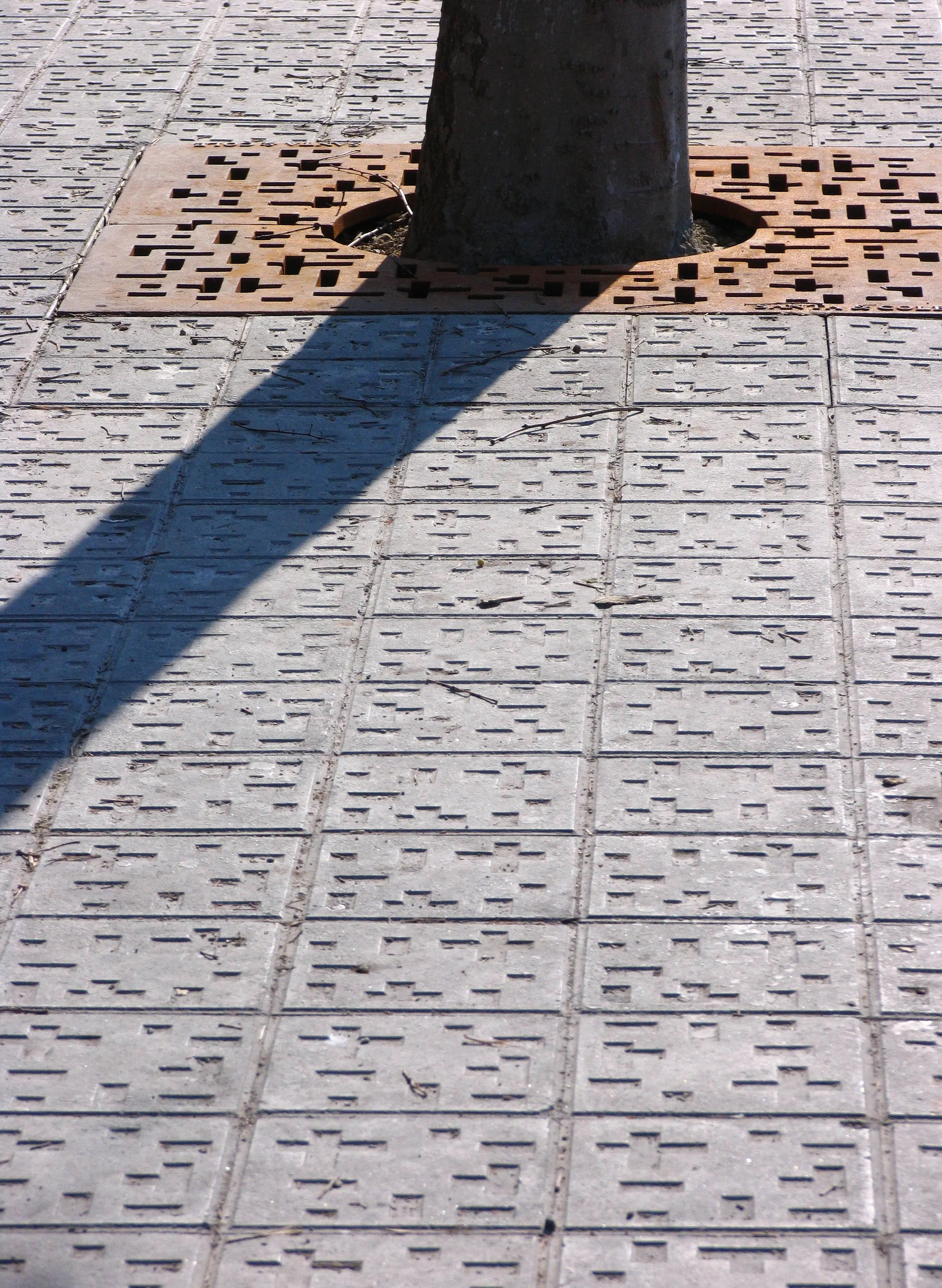

In order to solve the gap between the pavement and the tree, Antoni Roselló transfers a Piet Mondrian work to an urban scenario. The tree grate, with dashed perforations, establishes a geometric order that supports and ensures the continuity of the pavement.

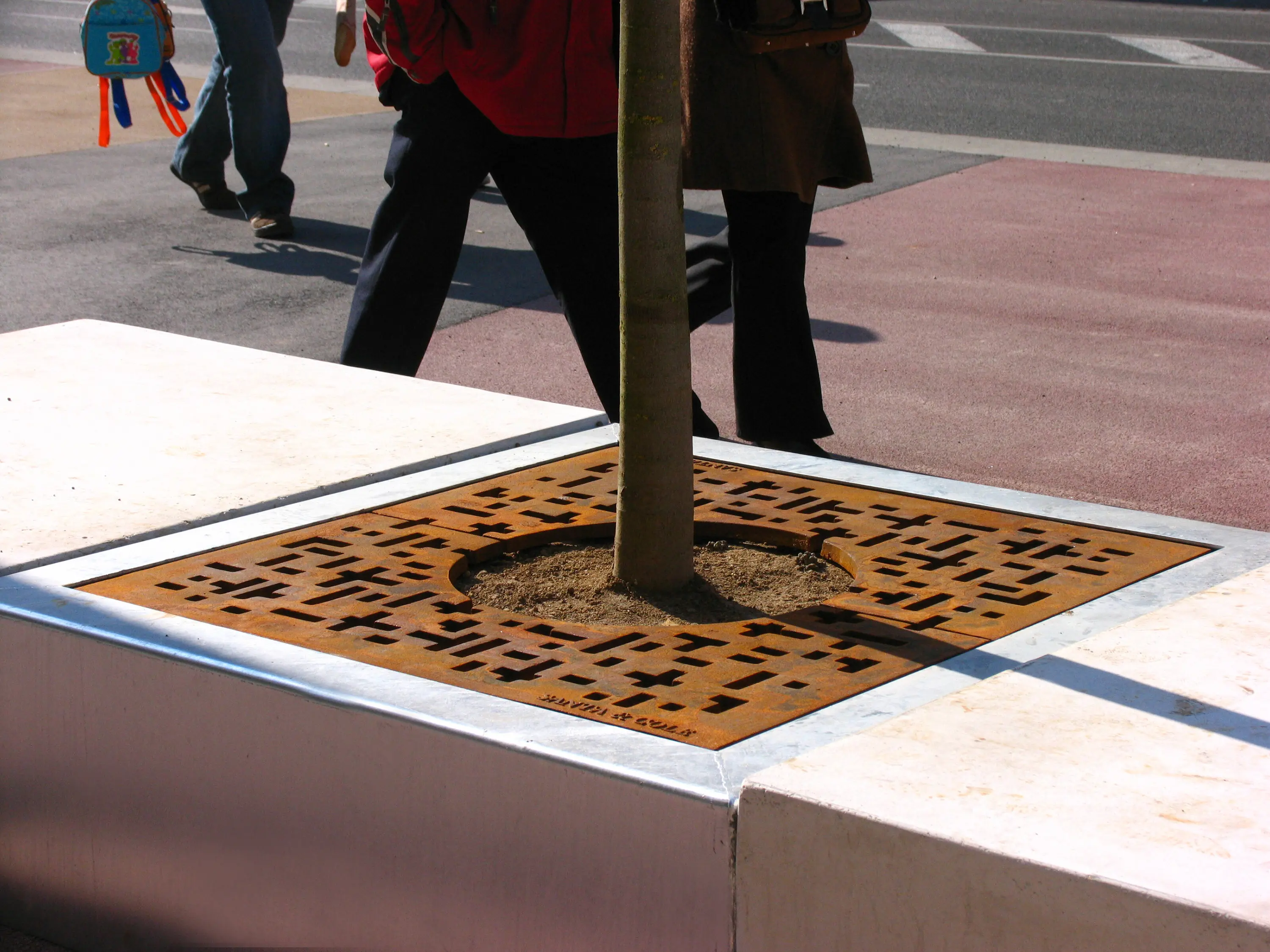

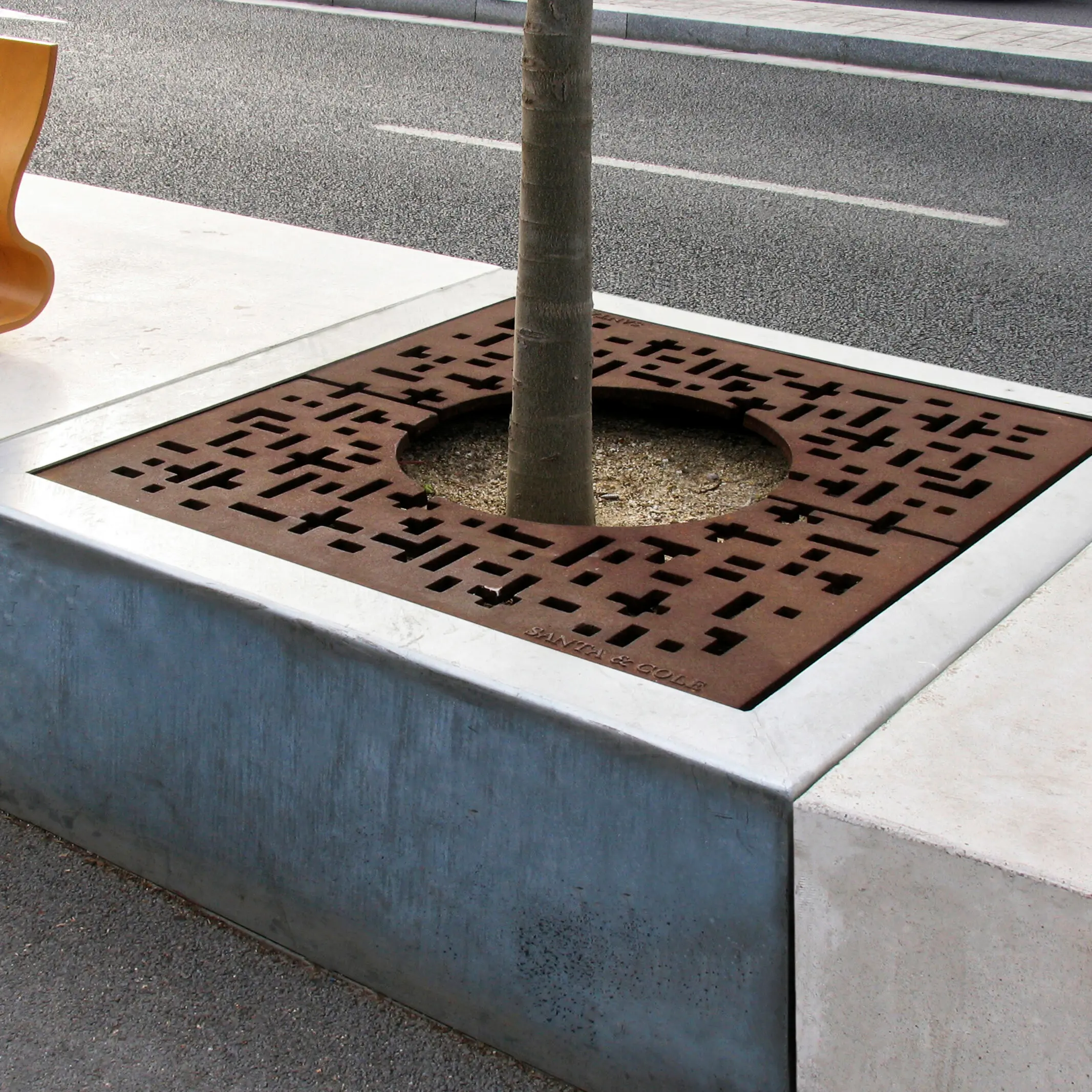

The Piet Mondrian tree grate establishes a protection that covers the space provided for the roots of the tree that it houses, with a central space of Ø50 or Ø70. At the same time, it offers protection from changes in the pavement level, being adjusted to a steel frame that defines it.

Certificates: CE.

Materials: Element made from two or four parts, created using nodular cast iron, grit blasting finish without subsequent treatment. Frame made from hot-dip galvanized S235 JR steel.

Finishes: Test: Shot blasting.

Approximate weight without packaging (kg):

- 0.98 x 0.98 Tree Grate (Ø50): 84

- 1.48 x 1.48 Module (Ø70): 204
