Modul R 100
About this product
Architonic ID: 1106800
SKU: 010-152 (2700 K)/006-384 (3000 K)/010-153 (4000 K)

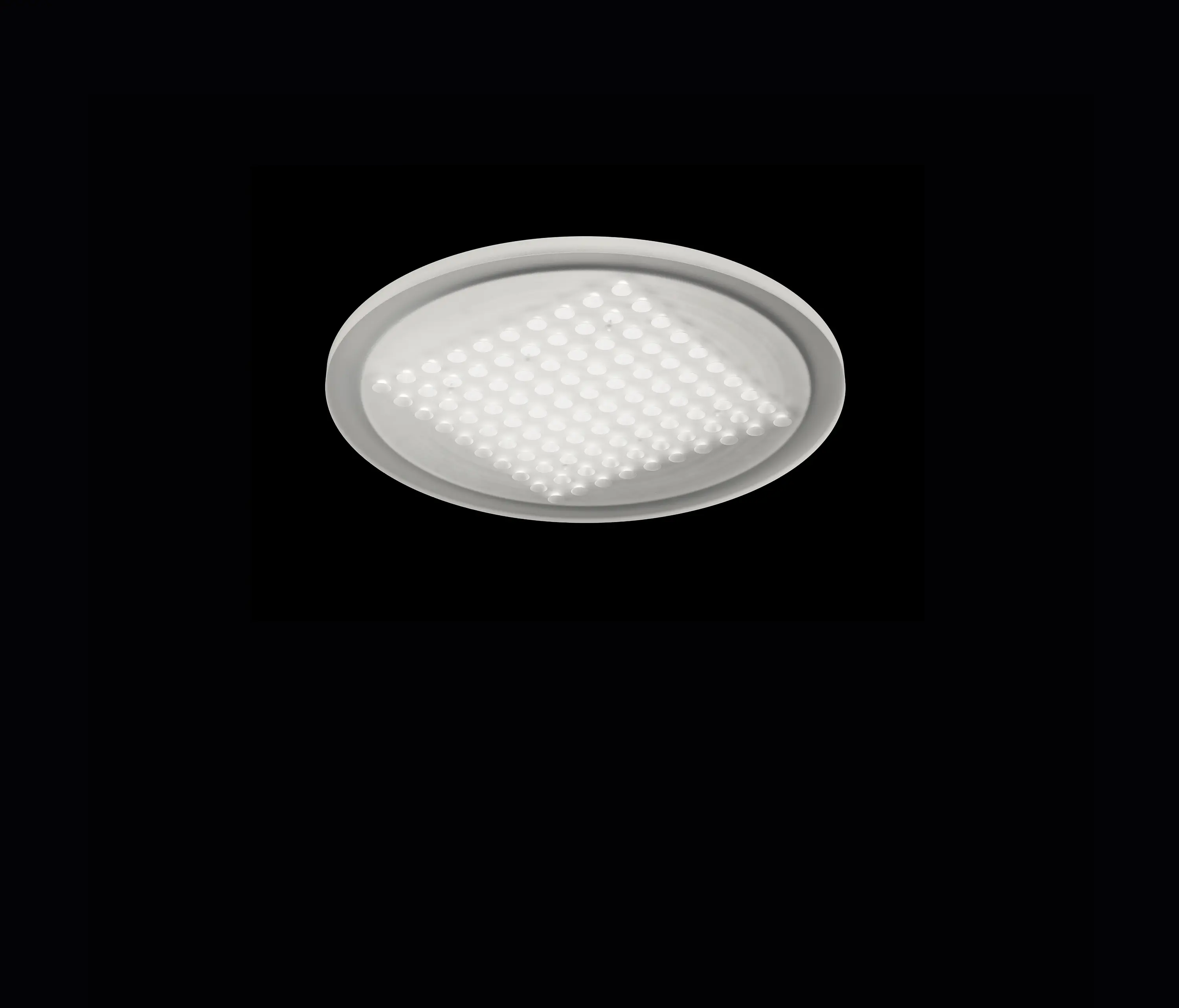

Ultra flat 10 mm thick ceiling LED luminaire for direct mounting to the ceiling. As an option, also available with mounting bracket for cavity. Approx. 98 % direct beam, wide beam. Additional ceiling lighting and very even, almost floor-to-ceiling illumination of walls from secondary light. External Nimbus converter required. The converter can be integrated in a suspended ceiling or an in-ceiling junction box.
Ø 323 × 10 mm (direct mounting), Ø 323 × 93 mm (cavity mounting)
LED technology, 24 V DC
2150 lm
IP20
19 W / 2700 K (010-152), 18,1 W / 3000 K (006-384), 17,3 W / 4000 K (010-153)
Concept
The circular ceiling luminaires in the Modul R series are made of translucent acrylic glass and, with their unique light characteristic with outer-edge illumination, are particularly suitable for efficient, wide-area general lighting for the home and workplace.
All luminaires of the Modul R series have design elements such as precisely placed conical indentations in the matt acrylic glass panel and still constitute the “archetype” of the minimalistic LED luminaire up until today. Their satin-frost acrylic surface ensures uniform illumination. The luminaire is available in a variety of sizes and outputs, enabling it to flexibly and effectively manage a whole range of lighting tasks. Thanks to its modular structure, the Modul R series can be used to cover all kinds of different mounting situations – direct mounting or cavity mounting.
Almost all Nimbus Modul R luminaires are available in 2.700 K, 3.000 K, 4.000 K and are dimmable using a suitable dimming device and converter.
This product belongs to collection:
Specifications
Category
General lighting
Feature
LED lights
