seventies se-11

Name: seventies se-11
Brand: Mawa Design
SKU: se-11

Ceiling lightsbyMawa Design, designed byJan Blieskeand Jan Dinnebier.

Home

Ceiling lights

seventies se-11

About this product

Architonic ID: 1216757

SKU: se-11

Year of Launch: 2014

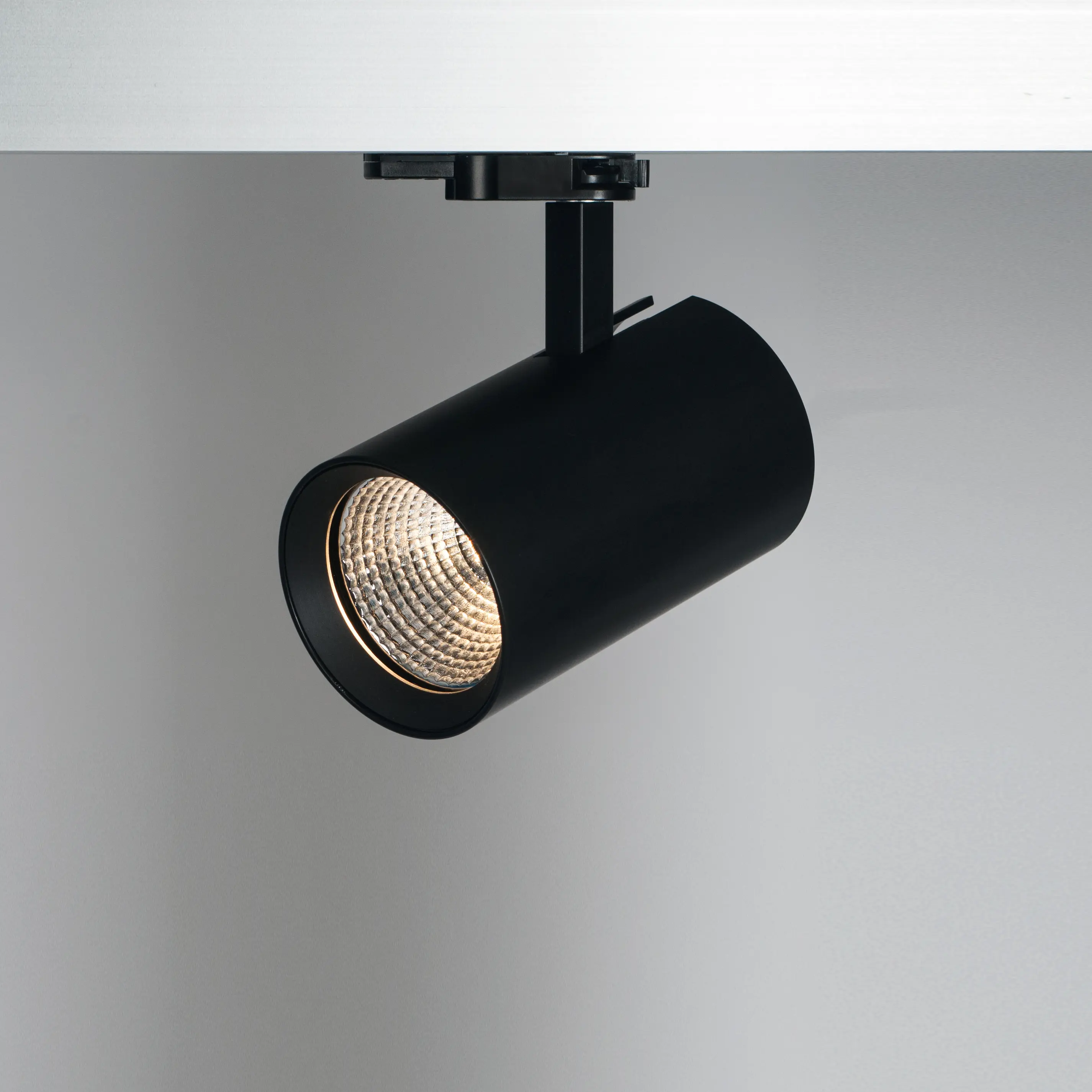

»seventies« – mawa's luminaire series of contact track, surface-mounted, recessed spotlights and pendant lights. Compact dimensions, no visible connections, 365° rotatable and 90° pivotable, integrated transformer technology. Default with EUTRAC UniCompact adaptor equipped. Available with fully integrated Eutrac-in-trac track adaptor. ATTENTION: Eutrac-in-trac track adapter premounted with contact track spotlight. Adapter not available separately.

colors:

RAL 9016 white matt

RAL 9005 black dull matt

dimming options:

switchable

dimmable with a 1-10V rotary potentiometer on the housing

dimmable 1-10V

DALI dimmable

trailing edge dimmable

converter:

inclusive

lamp:

inclusive LED lamp

Standard:

3000 K, 3000 lm, 25 W, CRI > 90, EEI = A+,

Costum:

2700 K/2900 lm

4000 K/3100 lm optional

Retail Lighting LED-Unit bis CRI 97 optional erhältlich

Dimensions:

different lengths (depends on dimming option): 150 mm / 180 mm

ø 90 mm

Concept

... back to the future ‒ Track-mounted spotlights:

Surface-mounted, recessed and suspended lights.

Mawa’s new, highly precise, lighting tool.

Compact dimensions, no visible connections, rotatable 365° and pivotable 90°, integrated transformer technology, 1800 lm, 26 watts, CRI>90, 3000K, EEI=A+, reflectors with an effectiveness of 90°. With this volume light output, mawa sets a new standard for high quality lighting and staging of objects in museums and shops.

The heat sink is securely bound to the housing, increasing the available cooling surface, thereby providing optimal mass to surface cooling conditions.

Three high performance reflectors (13°, 20°, and 35°) are available for selection. Thanks to a patented mawa technology, these are exchangeable with the help of a glass suction cup.

Optional:

Sculpture lens for elliptical light distribution as well as a wall washer lens for lighting large homogenous surfaces.

Alternately, an accessory holder can be added for the attachment of anti-glare flaps and honeycomb louvers.

Eutrac track adapter

Additional light colors and CRI 97 available upon request.

powder coated RAL 9016 white matt (-9016)

powder coated RAL 9005 black dull matt (-9005)
