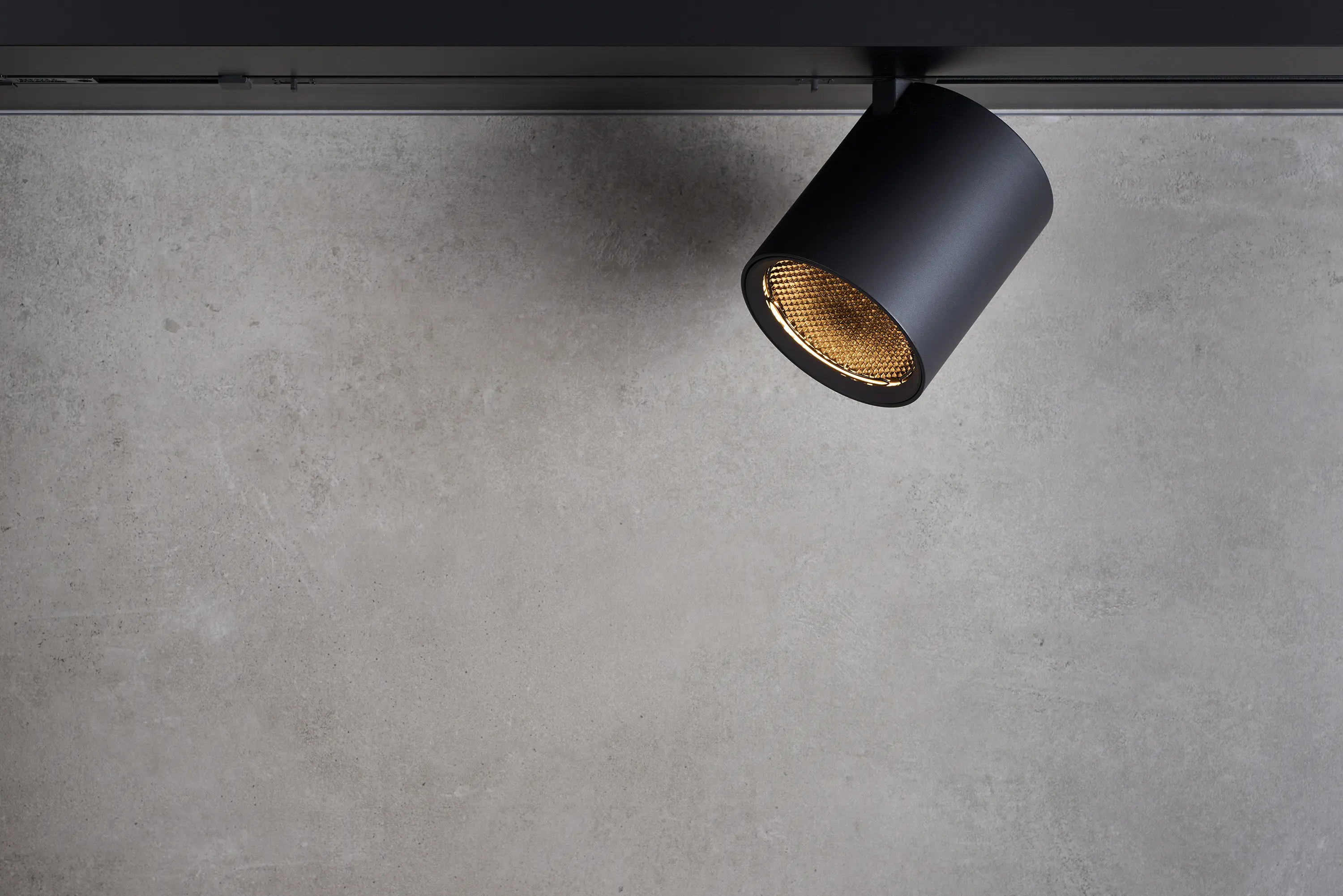

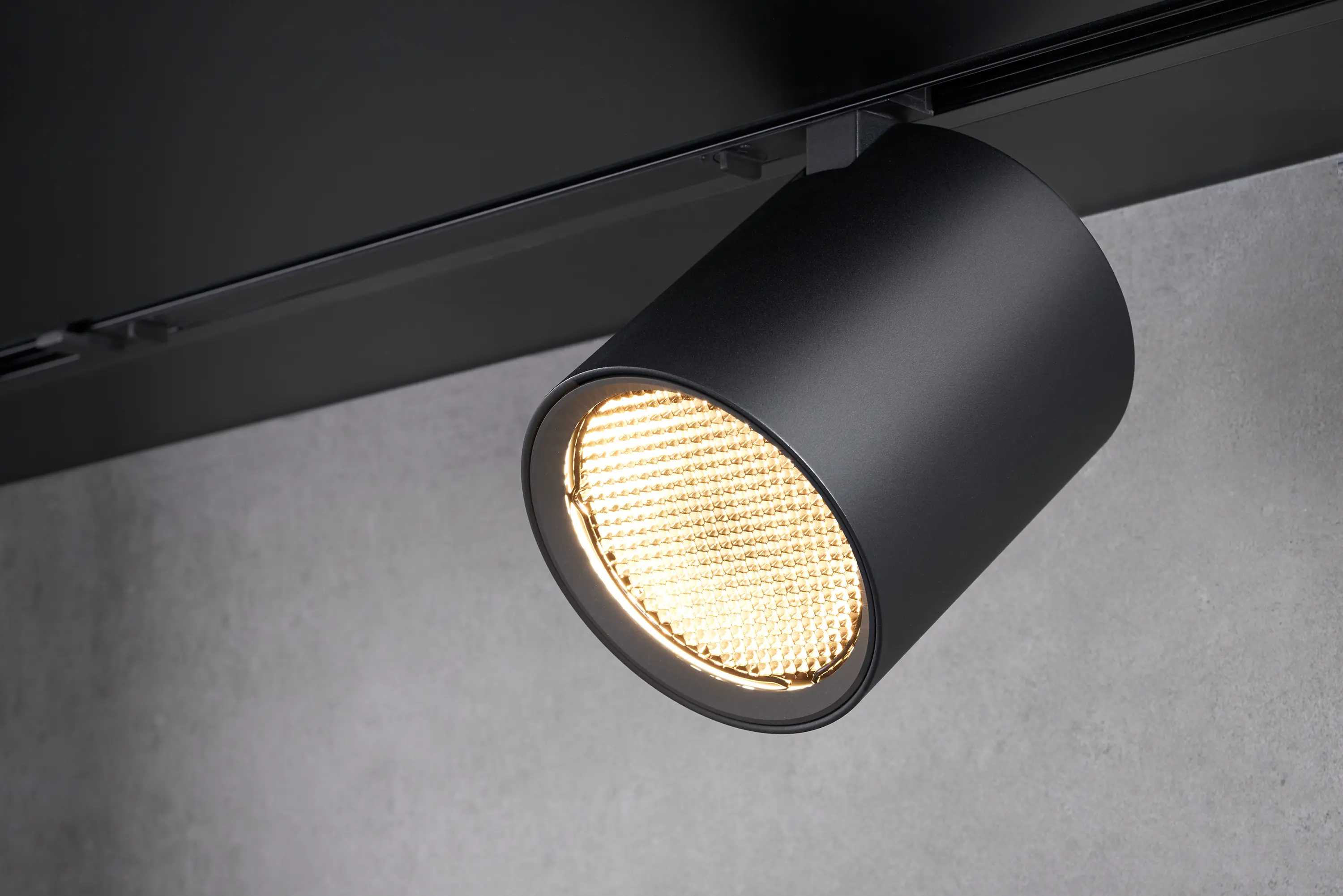

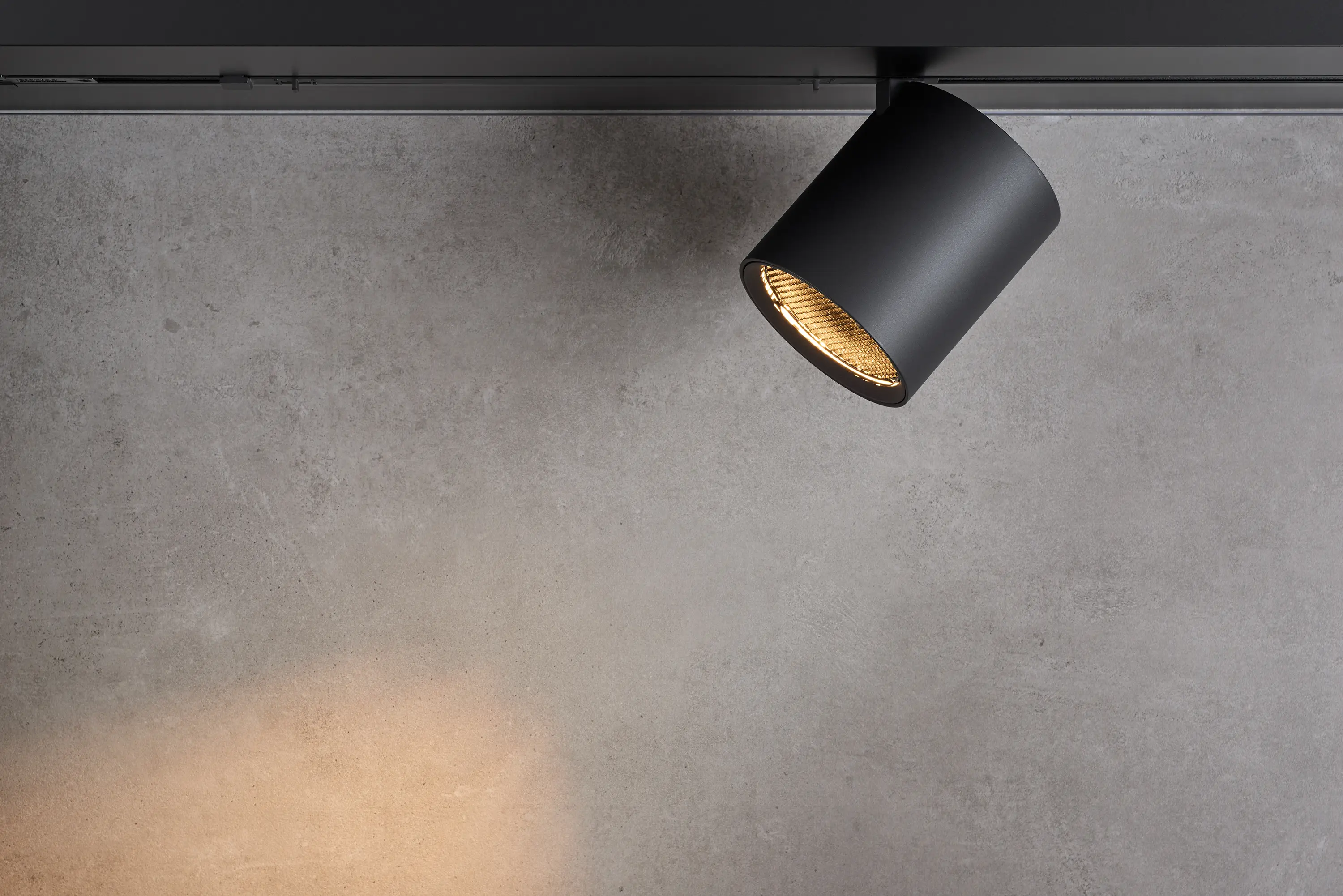

seventies plus 12-d1

The compact version of track spotlight seventies plus with reduced size offers more freedom of movement and, being based upon seventies plus technology, supplements the newest seventies plus, spotlight range. The well-shielded light source, together with optimized, high-performance reflectors, creates an excellent illumination with first-class visual comfort. The compact track spotlight with driver-integrated adapter is available for delivery as a switchable version (EUTRAC, global), DALI (global), as well as Casambi. Special light colors and high CRI > 95 (typ. 97) are available on request.

Design

Jan Dinnebier

Engineering

mawa design

Material

Aluminium pulverbeschichtet

Dimensions

ø 90 mm × 103 mm

Rotatability/Slewing capacity

355° dreh- und 90° schwenkbar

Benefits

HDTV-tauglich

flickerfrei

sehr gute Effizienz (lm LED)

LED module

10 mm

Farbkonsistenz 2 SDCM

L90(10k) > 55.000h (IES LM-80 / TM-21)

Energy efficiency

A++ bis A

Control gear

inklusive

Weight

663 g (Basismodel)

Protection class

IP20

VDE- und CE-Kennzeichen

Type approved by

DEKRA

Color*

matt white RAL 9016

matt black RAL 9005 mawa

individual RAL color

Wattage

10 W / 1050 lm

17,5 W / 1700 lm

25,5 W / 2300 lm

Light color

3000 K

2700 K

4000 K

Retail Lighting

Price on request

Color rendering index

Ra > 95 (typ. 97)

Reflector

spot 11°

spot 13°

medium 17°

medium 20°

flood 26°

flood 37°

flood 47°

Controller

switchable

DALI dimmable

Casambi Bluetooth dimmable

Also available with joint fixing
