Calabronet

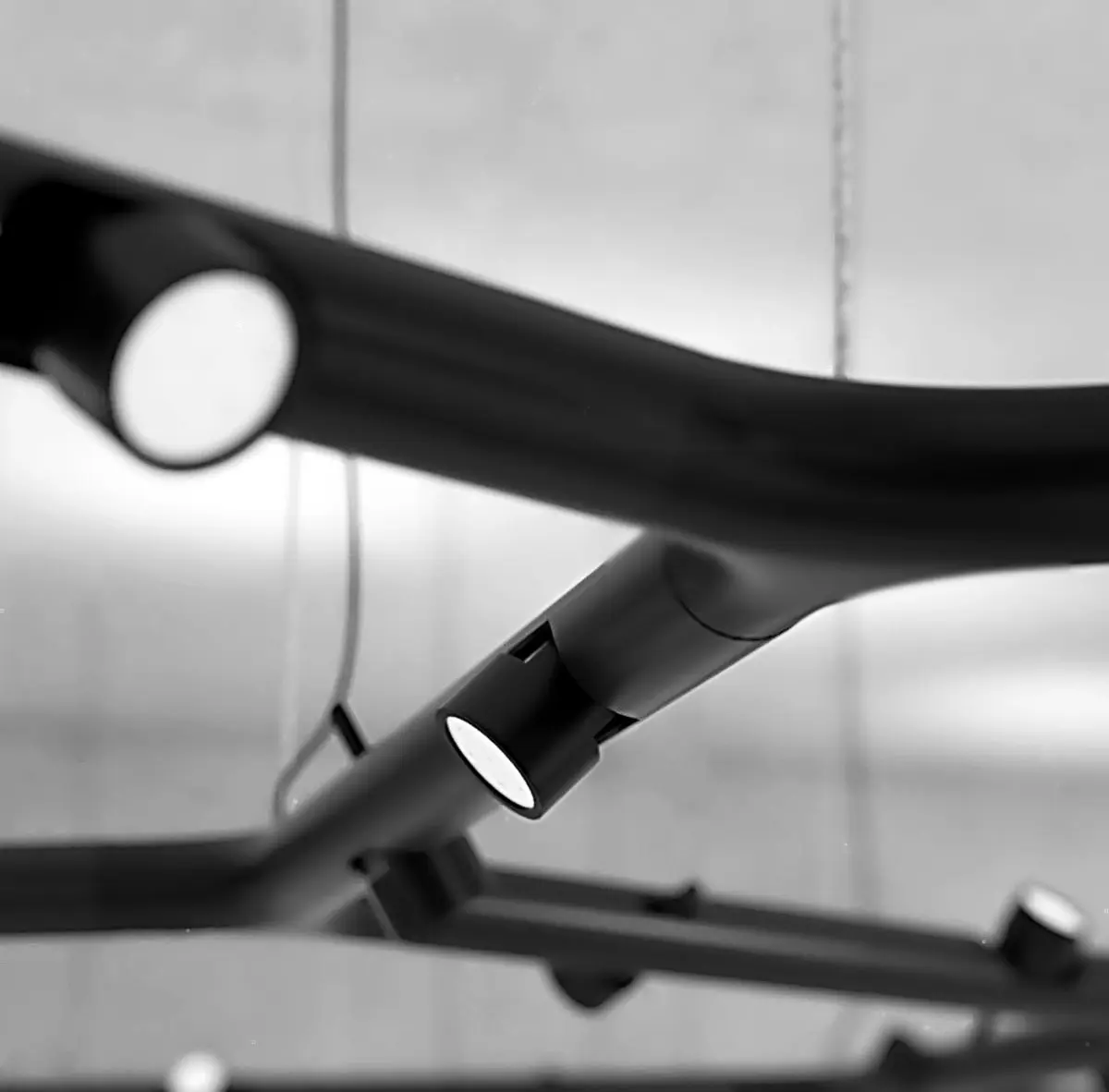

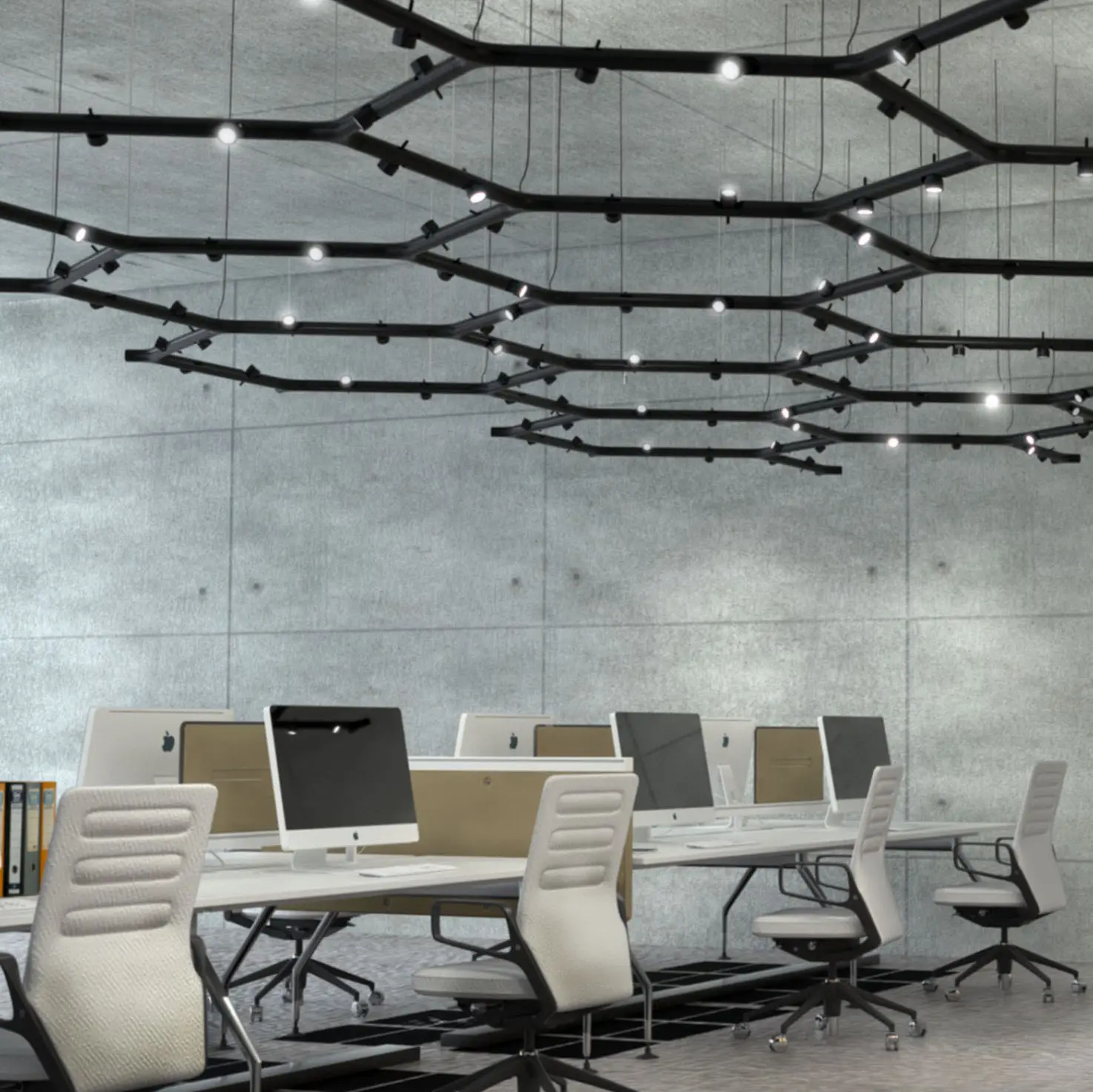

Combinable swivel system, direct/indirect diffused light. Composed of two length of aluminium tubular profiles(70 cm- 160 cm) connected together with particular joints to create different configurations and ceiling rose for several profiles, to be fixed on the ceiling. Variant of 70 and 160 cm of lenght with 2 and 4 spots with integrated LED light source connected together with particular joints to create different configurations and electronic driver inserted into the ceiling rose, to be fixed on the ceiling or false ceiling for two contiguous modules. Optics available in different beams: narrow, medium, wide.

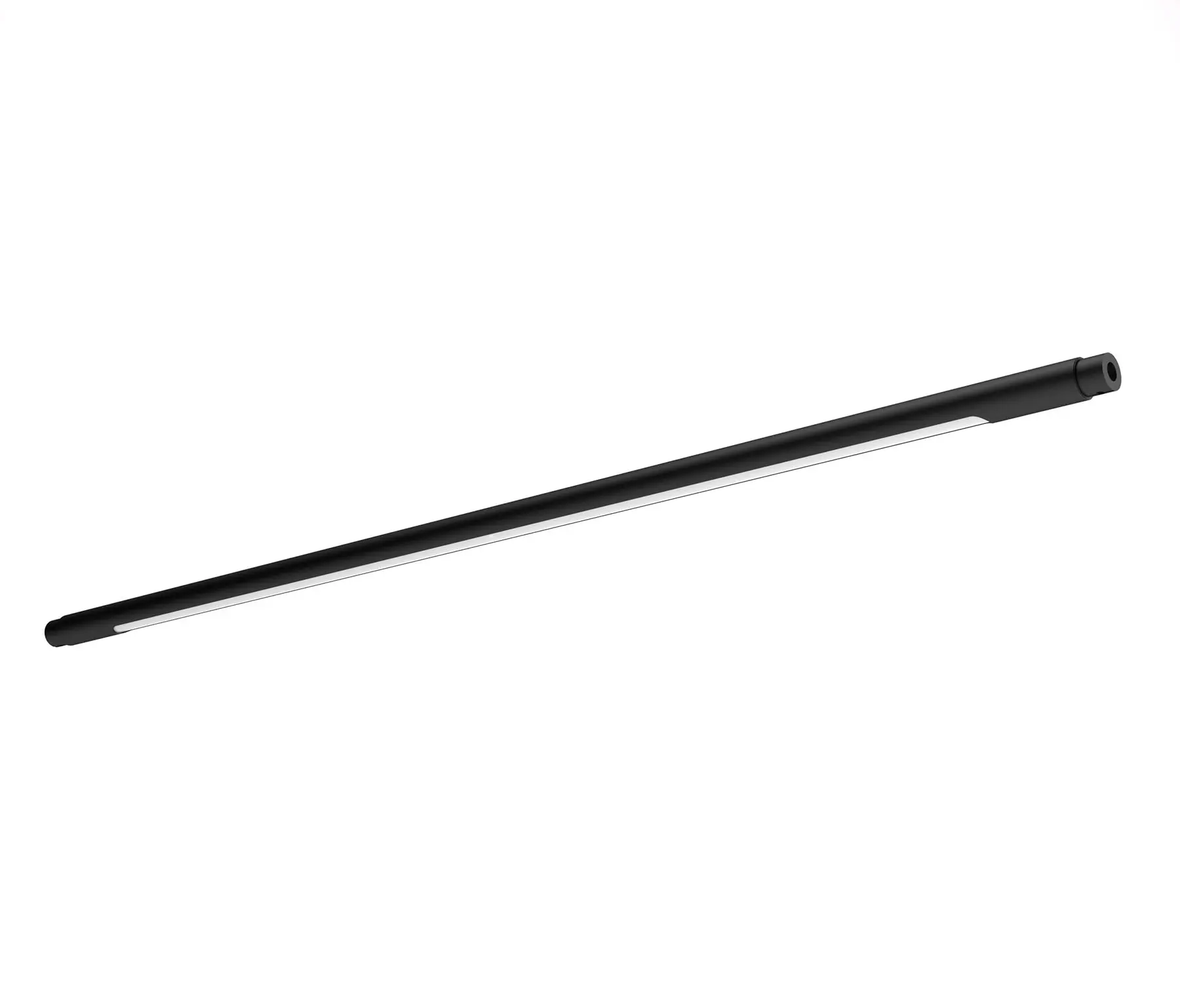

L 70cm- Ø 4,5cm

code 40030/NE

LED 8W

Flux 1100lm

Kelvin 3000

Class A++

230V

L 160cm- Ø 4,5cm

code 40031/NE

LED 20W

Flux 2900lm

Kelvin 3000

Class A++

230V

code 40033/NE

LED 2x9W

Flux 2x1334lm

Kelvin 3000

Class A++

code 40137/NE

LED 4x9W

Flux 4x1334lm

Kelvin 3000

Class A++

code 40032/NE

joint 120°

with hanging steel cable

code 40052/NE

angular joint 90° with hanging steel cable

code 40049/NE

intermediate joint with hanging steel cable

code 40034/NE

terminal head ø 4 for joint code 40032/NE

code 40037/NE

terminal joint with closed head
