Loop Arc #137

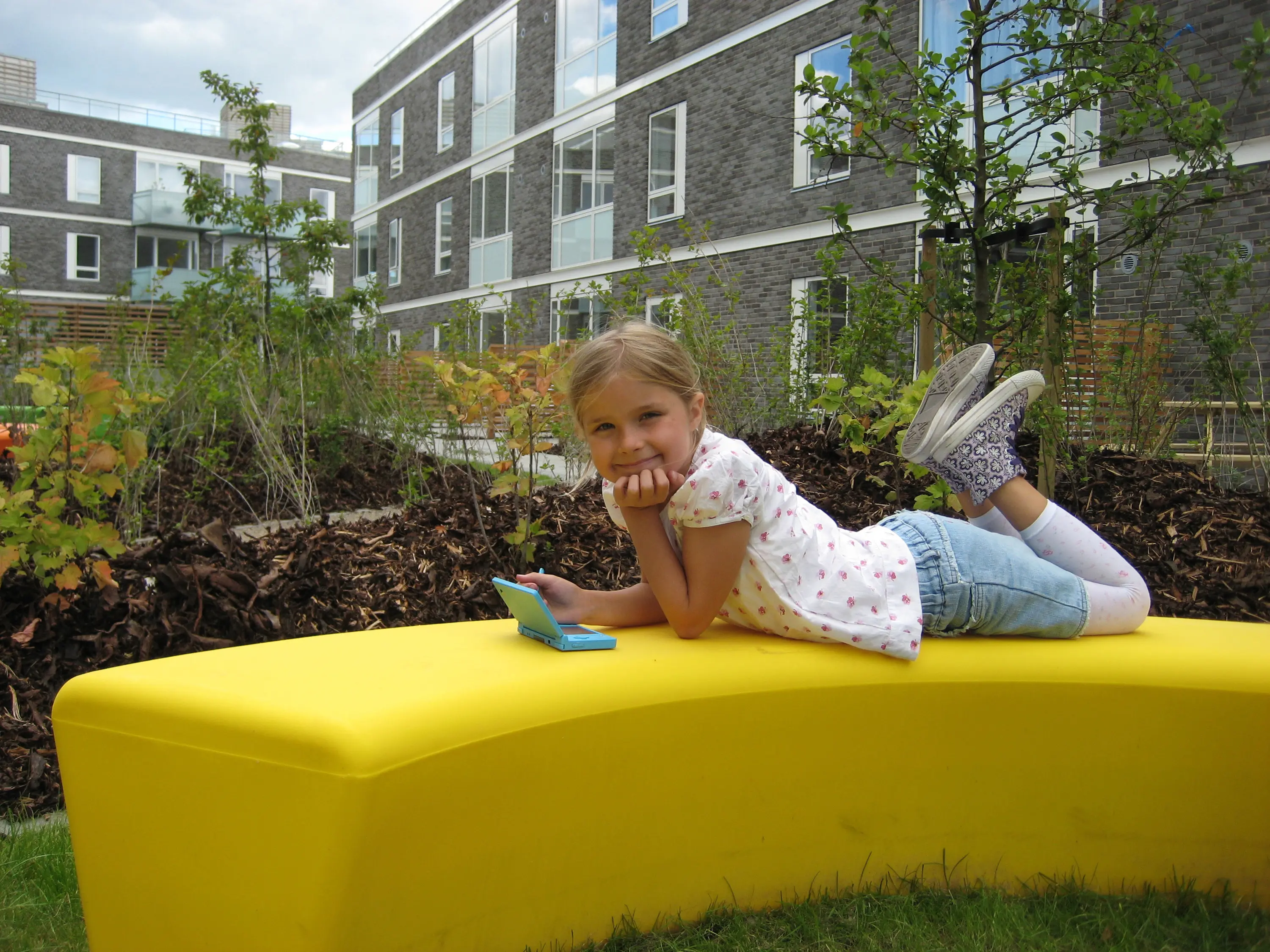

Loop Arc is an innovative piece of furniture for sitting and socializing. Clean simplicity. Options unfold in combination with several Loop Arcs or other members of the loop family: twisting through trees, squares and playgrounds or forming variously shaped sandpits.

TECHNICAL DATA

Material

Rotation moulded polyethylene, 6-7 mm thick, dyed. Moulded in one piece. UV-resistant, stands up to weather, wear and tear. The material is suitable for granulation and recycling.

Surfaces and friction

The products have a textured/granulated surface due to abrasive blasting of the mold. This process enhances the friction and makes the surface less slippery.

Authentication

TÜV approved as playground equipment acc. EN1176.

Dimensions

One module: R1350mm, H400mm, Width (cross section): 400mm. Volume: 300 litres

3 x modules (circle): outside diameter: Ø2700 / inside diameter Ø1900mm

8-10 seats inside / 12-14 seats outside

In the centre playground for 4-5 children

Combinations

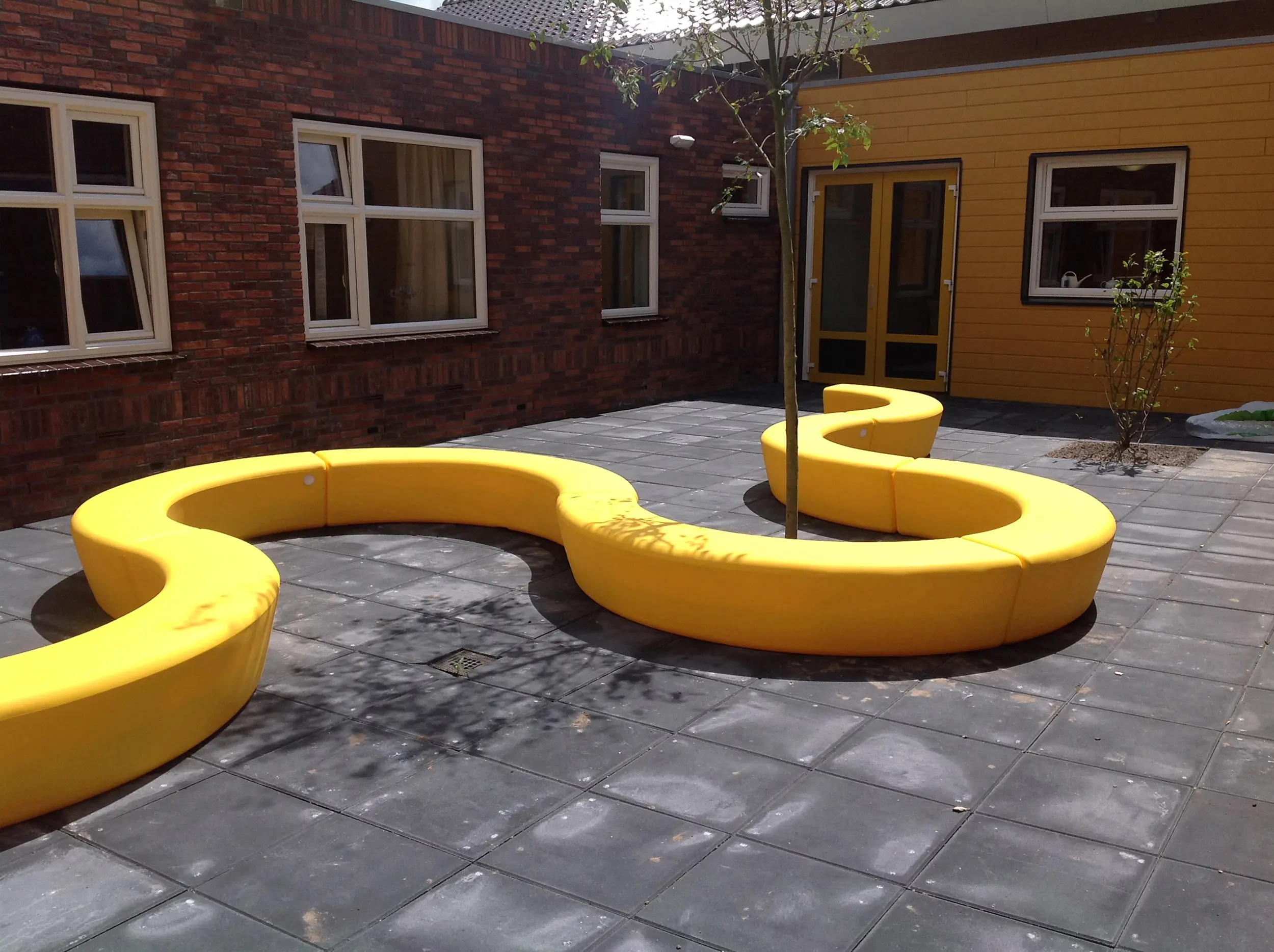

Form Loop Arc like an ”O” (circle, 3 modules), like a “C” (2 modules), or like a “S” (2 or more modules). Also combine Loop Arc with Loop.

Assembling & fixation

The modules are joined with brackets (B4) at either end.

Fill them 3/4 with water (225 liter) / sand (225 kg) or fasten them to the ground. Brackets to be ordred separately.

Recycled and ecolabelled*

Recycled version is made from 100% recycled polyethylene plastic, of which 85% comes from internal waste and production surplus, while 15% comes from. polyethylene bags.

Recycled version is ecolabelled, promoting circular economy and fulfils UN’s sustainable development goal no.12 – Responsible consumption and production.

Recycled version is available in anthracite variant, yet colour can vary from order to order.

Maintenance

This product withstands most cleaning agents and chemicals and can be cleaned using a high-pressure cleaner. The colour can be revived using vinyl cleaner or similar.

Product code

137 0101 Loop Arc red / 26kg

137 0102 Loop Arc limegreen / 26kg

137 0103 Loop Arc orange / 26kg

137 0104 Loop Arc yellow / 26kg

137 0109 Loop Arc purple / 26kg

137 0111 Loop Arc sandstone / 26kg

137 0113 Loop Arc grey / 26kg

137 0117 Loop Arc blue / 26kg

137 0115 Loop Arc pastel blue / 26kg

137 0116 Loop Arc mokka brown / 26kg

137 0118 Loop Arc olive green / 26kg

137 0150 Loop Arc white / 26kg

137 0120 Loop Arc recycled anthracite / 26kg 900B2 Brackets for ground fixation

900B3 Brackets for surface fixation

900B4 Connection bracket

900R2 Rubberfeets

Standard colours (approx. RAL)

Red: RAL 3020

Limegreen: RAL 120 70 60

Orange: RAL 2003

Variant colours (approx. RAL)

Yellow: RAL 1018

Purple: RAL 4004

Sandstone

Grey: RAL 7015

Blue: RAL 5010

Pastel blue: RAL 5024

Mokka brown: RAL 8028

Olive green: RAL 6025

White: RAL 9003 Recycled: Anthracite*
