LivingShapes interactive wall

Light installations based on the modular system. It has never been so easy to create stunning interactive OLED lighting installations in such a short time.

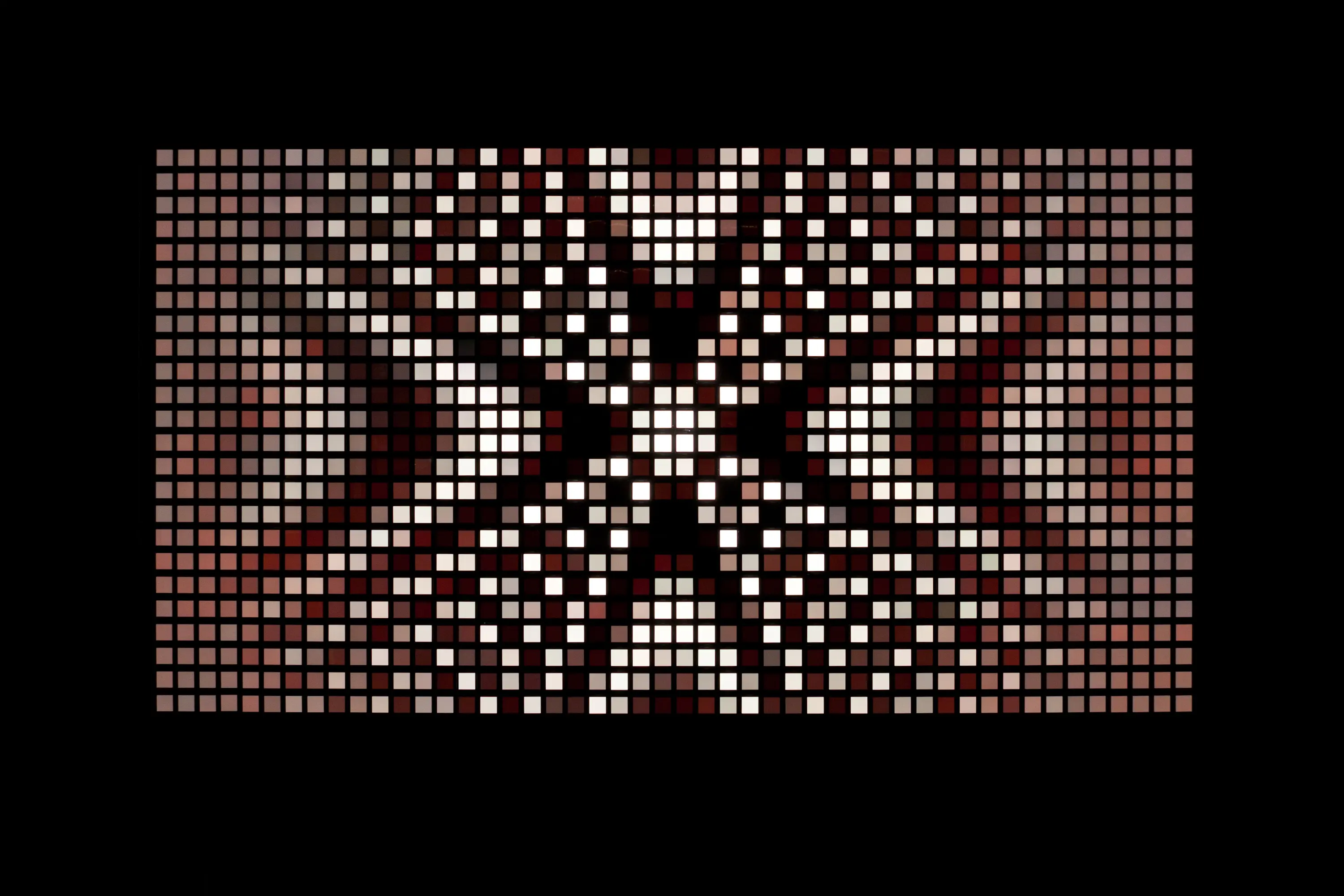

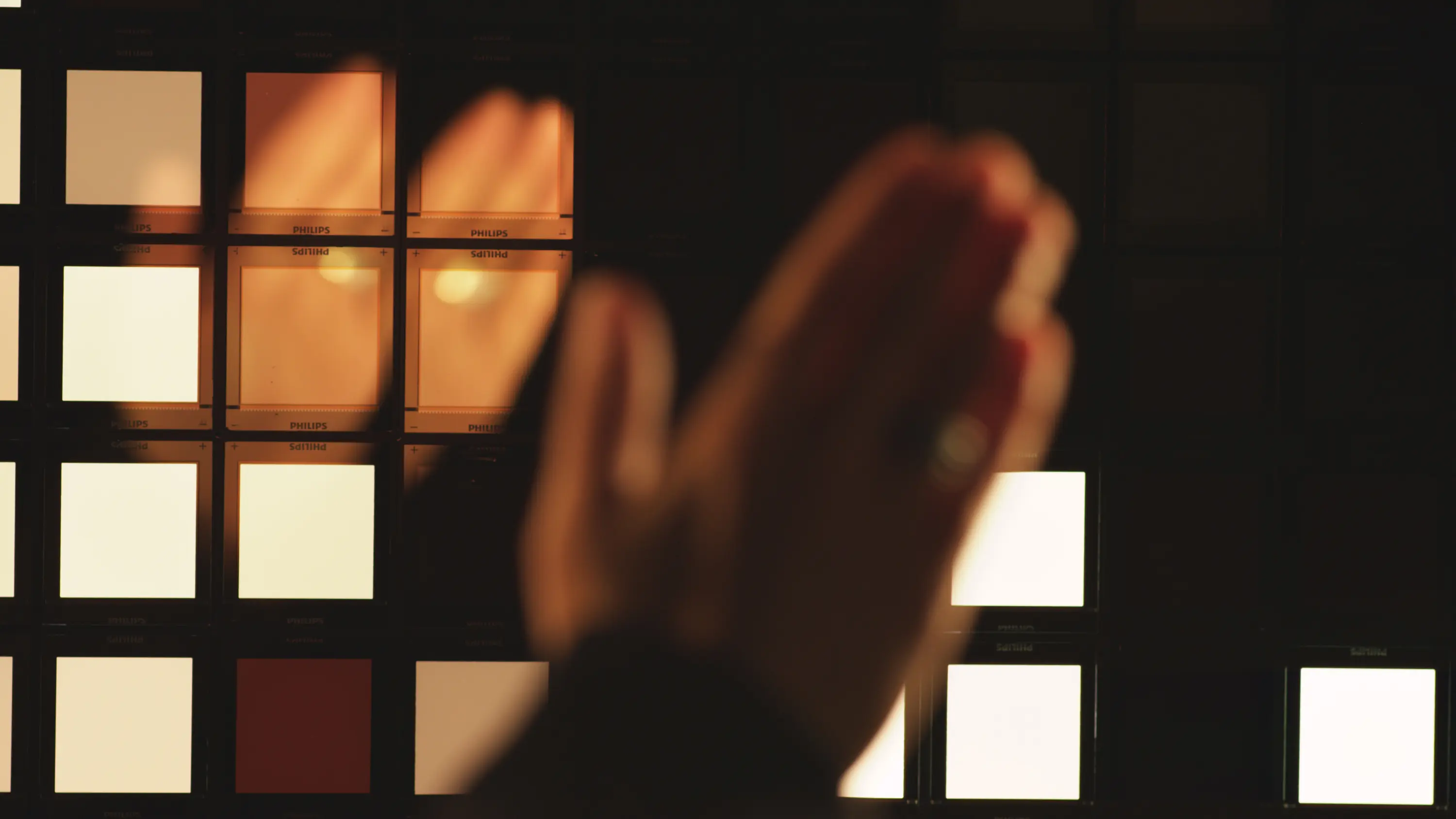

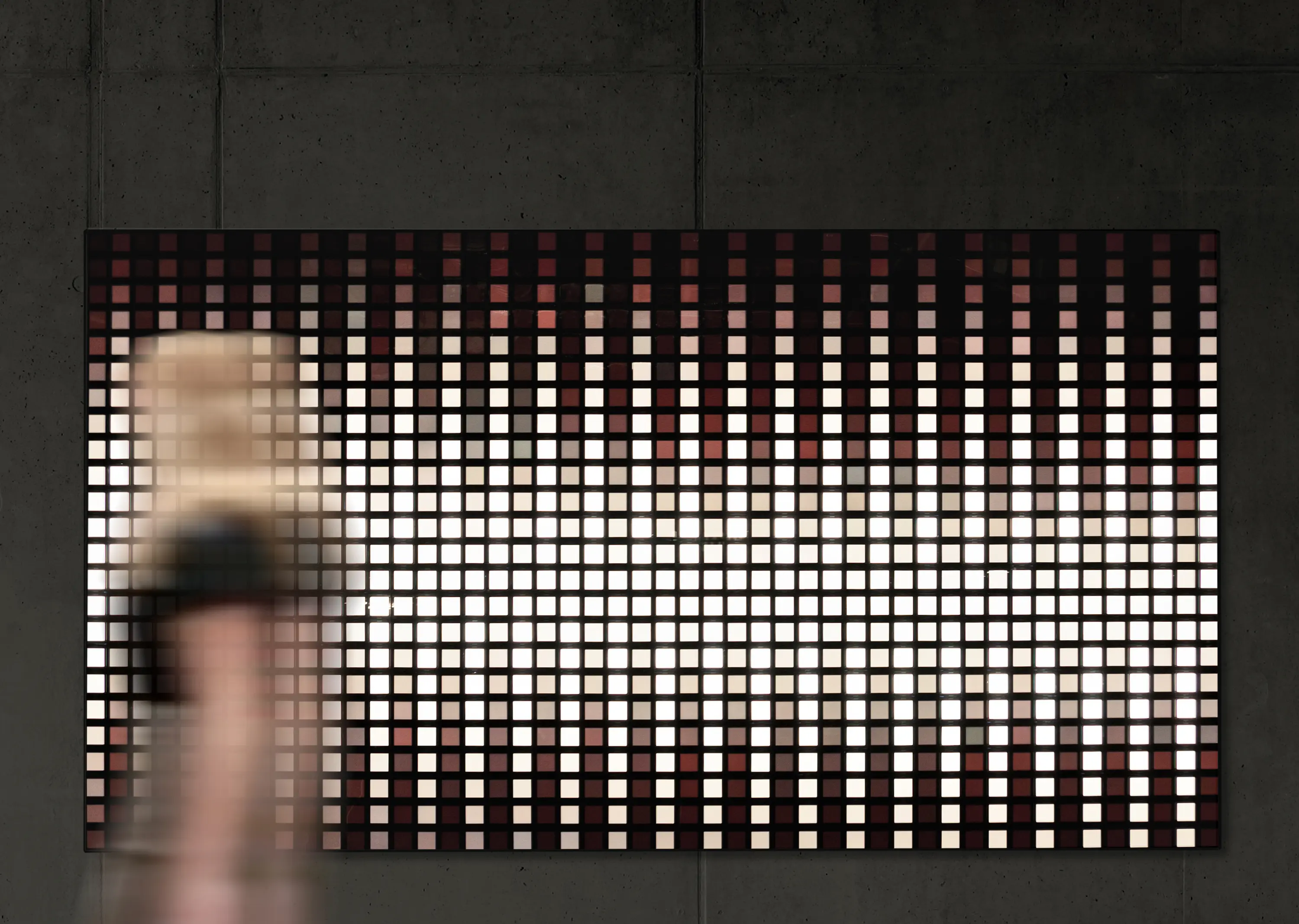

The LivingShapes interactive wall is the perfect example of how beautiful and interactive OLED light can be.The OLEDs seem to go on and off at random. But it soon becomes clear that the wall reacts to what either a hidden camera in the wall sees. Or what a microphone detects. Movement and sound is then translated into light shapes, bathing the room in an atmospheric light.This is the very light that makes the new lighting technology so distinctive. Even when

all the OLEDs are alight, the light is warm and pleasant rather than glaring.The interactive wall is based on an ingenious modular system that eliminates the need to individually connect hundreds of OLEDs to each other. Instead,

the user simply utilizes integrated OLED panels equipped with sixteen OLEDs. Constructed as a plug-and-play system, any number of panels can be arranged next to and above each other.

Philips LivingShapes interactive wall

Dimensions: 255 x 140 x 7.9 cm (100.3 x 55.1x 3.1in) (width x height x thickness)

Weight: 150 kg (330 lbs)

Resolution: 48 x 24 OLED pixels

Electrical Specifications

Input voltage: 120/240 VAC – 16/10 A – 60/50Hz

Power consumption: 500 – 1,900W

OLED Specifications

OLED outer dimensions: 49.5 x 54.8 mm2 (1.9 x 2.2 in)

OLED lit area dimensions: 40 x 40 mm2 (1.6 x 1.6 in)

Color temperature: 2,950 K

Typical max. luminance per OLED: 1,500 cd/m2 (nits)

Installation

Easy-fit system, consisting of 3 segments to mount onto the wall directly

Front / back material: glass / metal

Optimal viewing range: 2 – 8 m (6.5 – 26 ft)

Operating Conditions

Temperature range: 20 – 25°C (68 – 77°F)

Max. relative humidity range: 20 – 75%
