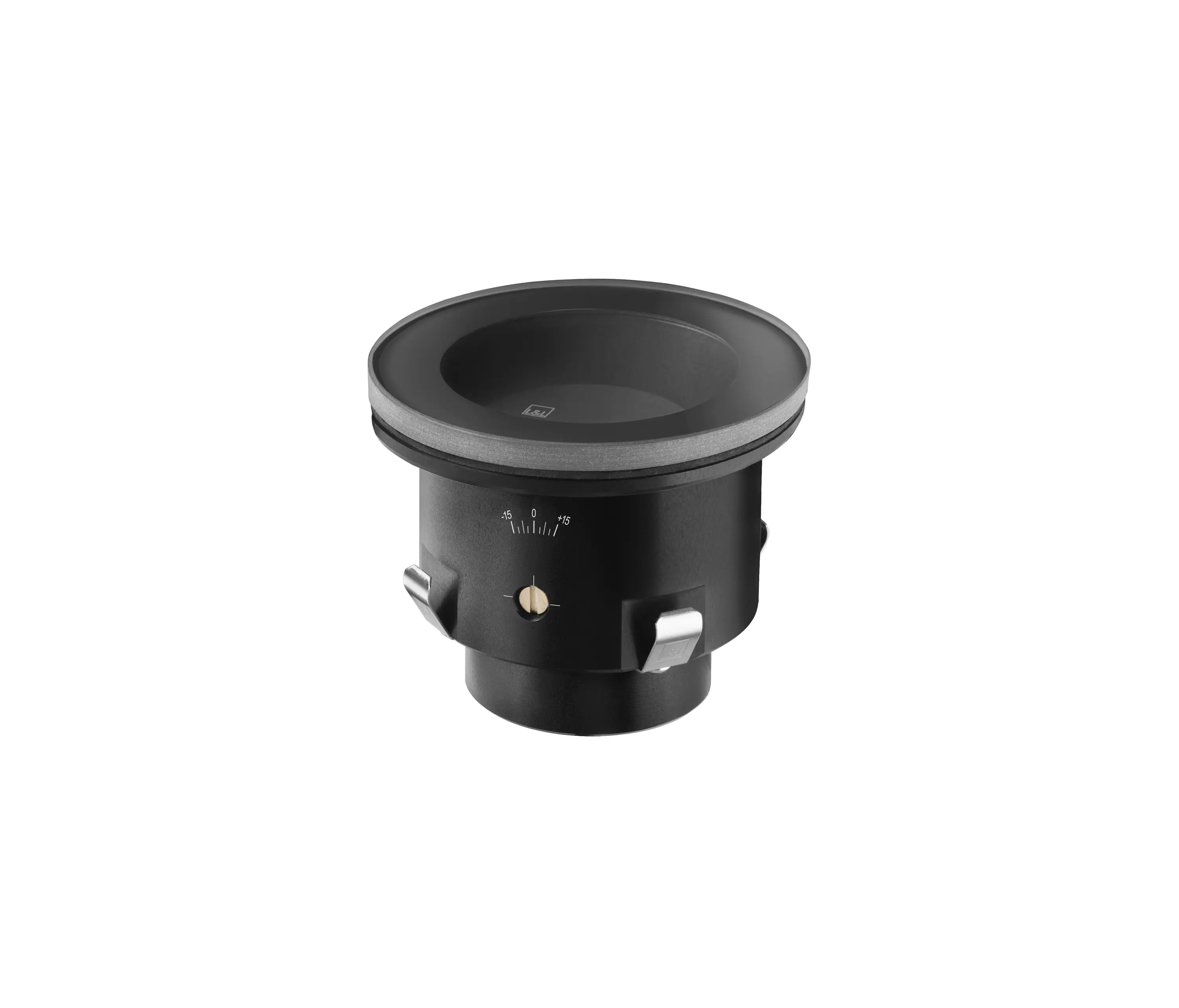

Litus 5

Recessed uplight for outdoor applications; drive-over up to 1000 kg; recessed (ceiling, wall, floor); Power: 3,5W (5° optics), 5W, 7W; 13W, 10W; RGB: max 7W; Power supply: 24Vdc; RGB: max 700mA; Lumen output at source: 488 lm (3000K, 5W, CRI 80), 657 lm (3000K, 7W, CRI 80), 1485 lm (3000K, 13W, CRI 80), 1115 lm (3000K, 10W, CRI 80); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 463 lm (3000K, 34°, 7W, CRI 80), 800 lm (3000K, 38°, 10W, CRI 80), 1065 lm (3000K, 38°, 13W, CRI 80); 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 16°, 21°, 38°, sharp 58°, 55°, 16°x69° adjustable through 360°, diffuse; 5° tiltable ±15°, 8° tiltable ±15°, 11° tiltable ±15°, 17° tiltable ±15°, 20° tiltable ±15°, sharp 21° tiltable ±15°, 34° tiltable ±15°, 45° tiltable ±15°, sharp 61° tiltable ±15°, 13°x52° tiltable ±15°, 21°x42° tiltable ±15°; CRI: 80, 90; body in anodized aluminium; screen in tempered, serigraphed-grey and transparent extra-clear glass; Ingress protection: IP67; Impact resistance: IK08; 16°x69° optics adjustable through 360° using the magnet provided; version with screen in white, serigraphed glass available on request, version with 8º optics and 10W power available on request; Protection systems: IPS; Appliance class: III; Weight: 600 g; Dimensions: Ø96x70 mm; 95x95 mm
