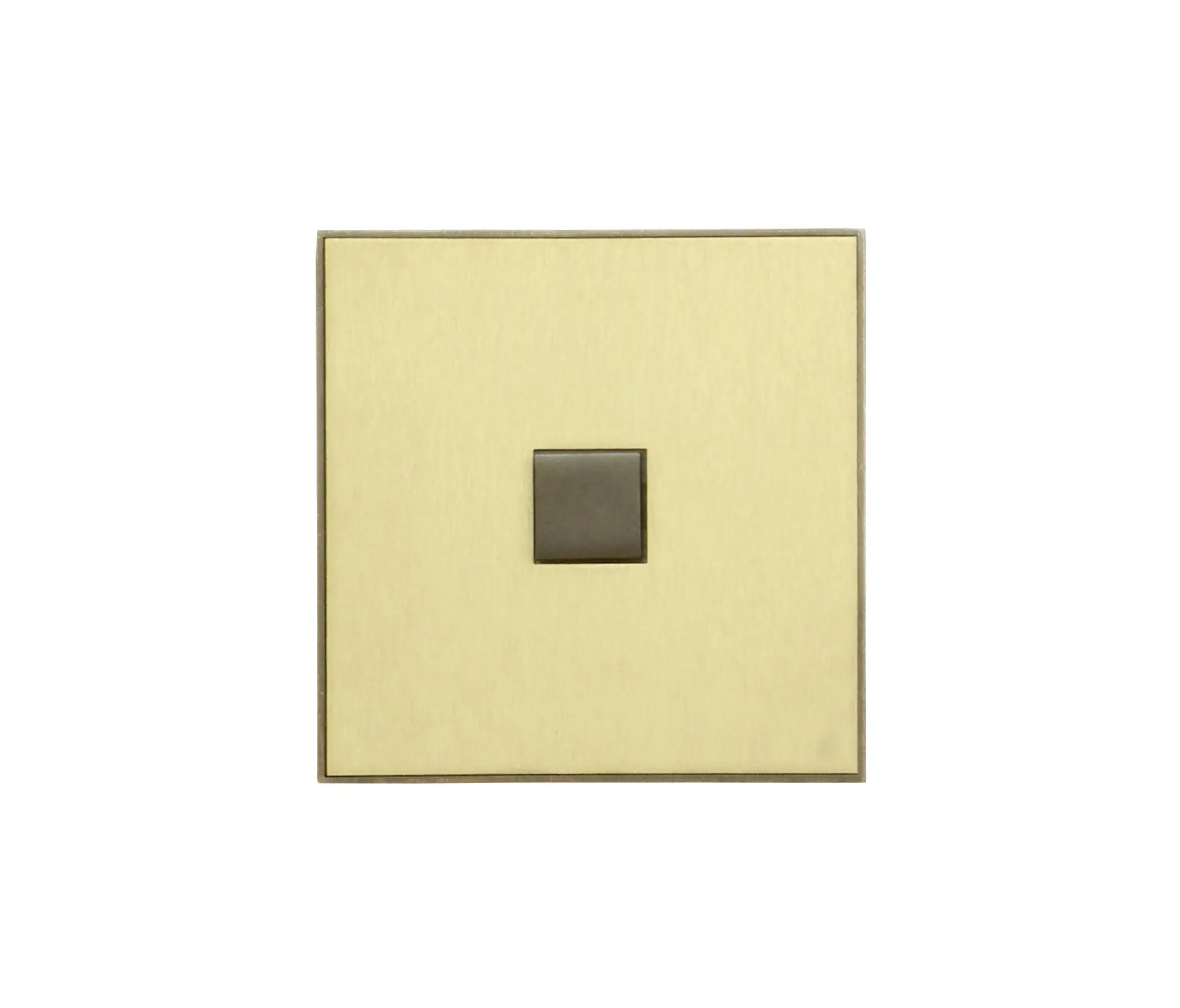

Classics by Lithoss | Immix SB1T gold bronze

With the IMMIX collection Lithoss offers you design switches adaptable to anyone’s liking. With more than 50.000 different possible combinations your interior can be more personalized than ever! The combinations are made with the high end finishes existing in the

SELECT range. You can choose the finish of your frame and button(s) and mix it with a second finish for the cover plate.

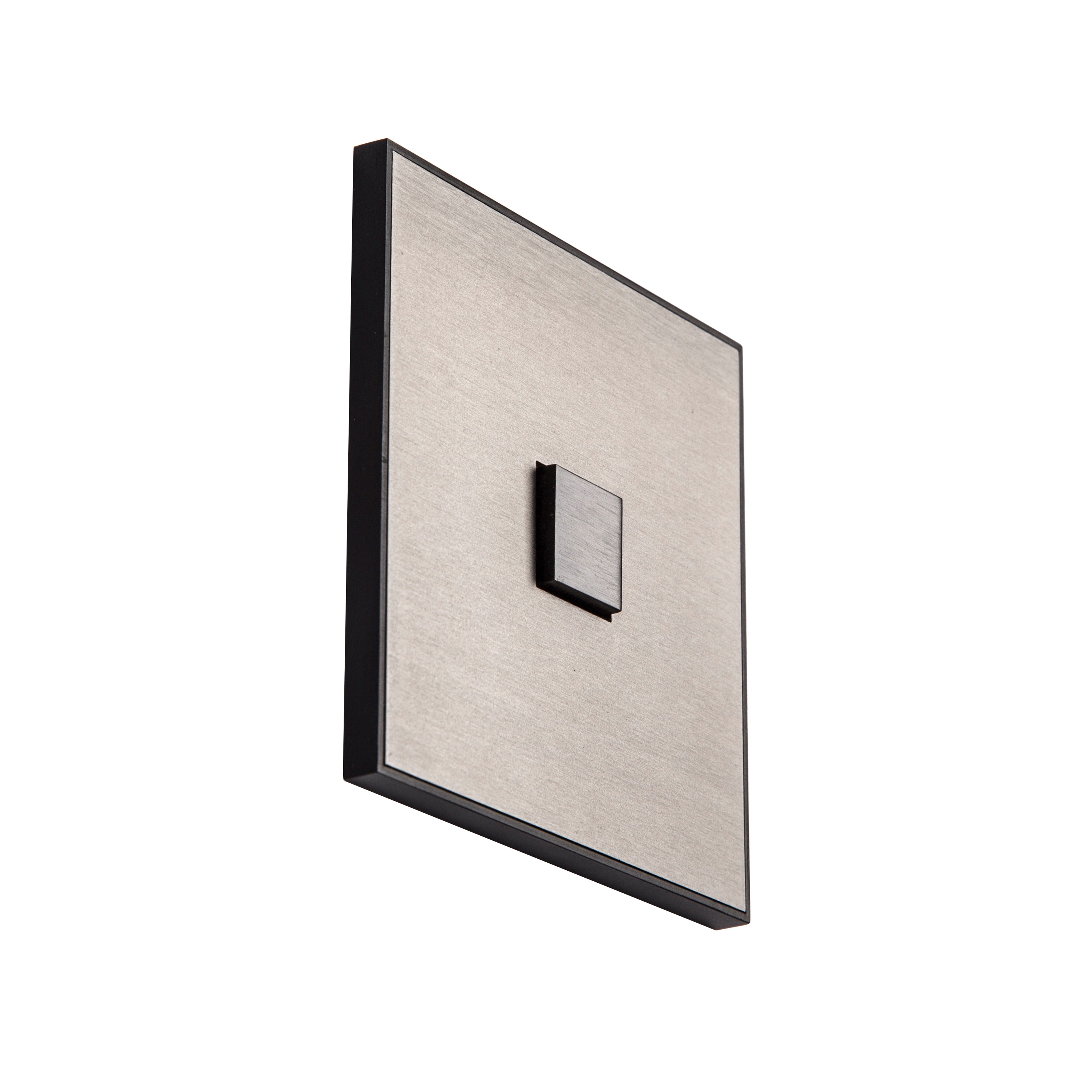

Possible combinations: White & Chrome, Stainless Steel & Fusain, Black & White,..

Available forms :

1-4 pushbuttons on a single switch

2-8 pushbuttons on a double switch

Single, double, triple sockets

Orientation light in same design

Customized version possible on request

Dimensions :

Single : 84 x 84 x 5,4mm

Double : 157 x 84 x 5,4mm

Triple : 224 x 84 x 5,4mm

Available colours :

Stainless steel, Ral9010, Chrome, Soft touch (Ral9010 / Ral9011 / Ral**), gunpowder black (Fusain), Bronze, Textured (Ral9010 / Ral9011 / Ral**), Brass, Nickel Satiné, Custom RAL.

Available connections:

24V pushbutton

24V pushbutton + LED (orange, blue, white, red)

30V KNX (option : temperature sensor)

30V KNX+ white LED (option : temperature sensor)

250V pushbutton

Qbus + RGB LED

Domintell + RGB LED
