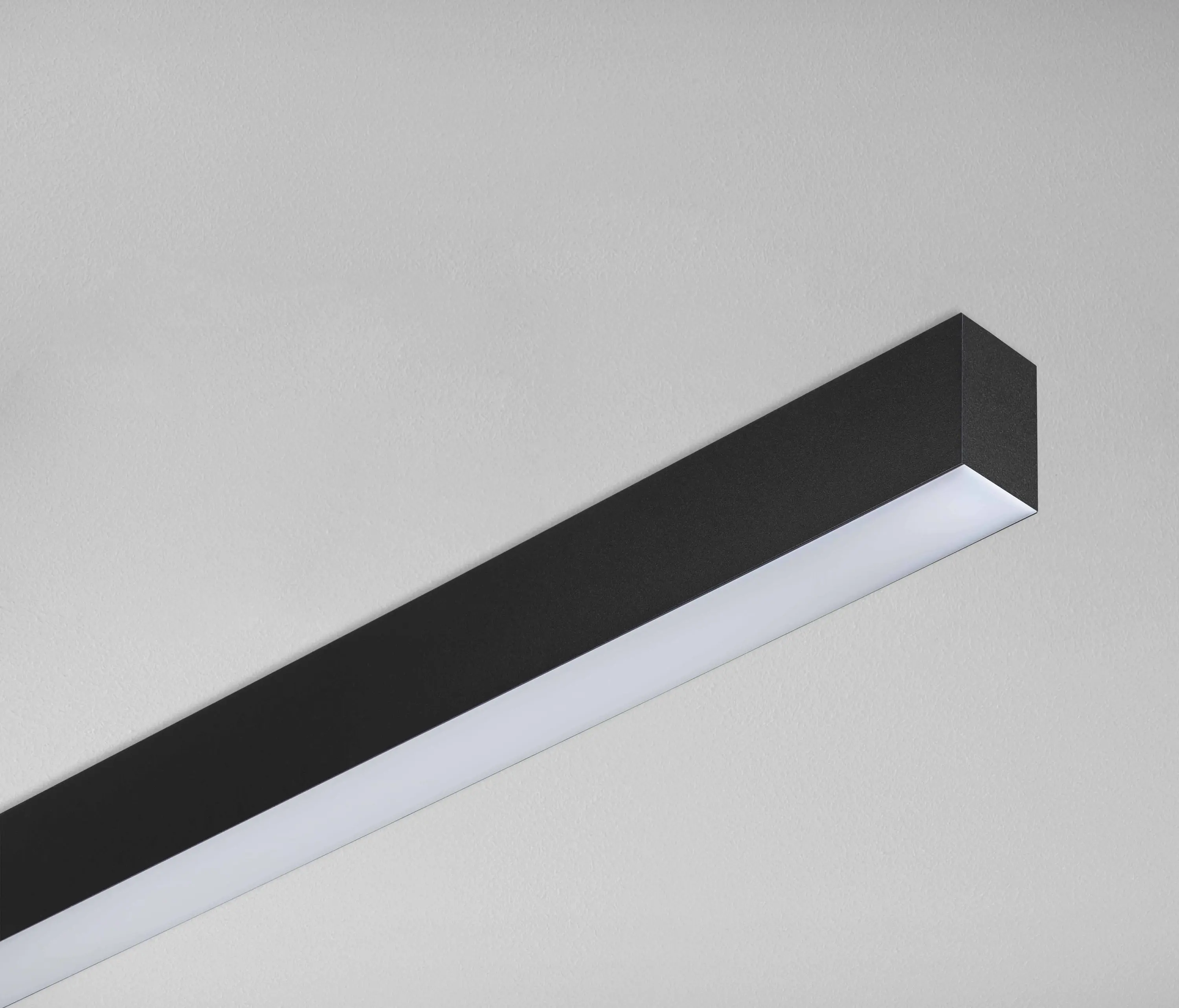

BRI READY OPAL LINE LOW POWER

General data:

Mounting type: surfaced, suspended

Luminaire body: aluminum

operating temperature range: from -20° to +35°

Lifetime L80B10: 100 000h

Ingress protection IP: IP44

Optical data:

Light distribution: symetrical

Contains light source: yes

optical system: opal diffuser

Material: PMMA

Protection class: I

Lighting data:

colour rendering index: CRI≥80 (on request: CRI≥90)

glare indicator UGR: 22

Type of source: LED

Electrical data:

nominal voltage: 230-240V AC

nominal voltage: 50-60Hz

Dimming: DALI, Casambi, on-off

1060lm/ 12W/ 92lm/W/ 3000K/ L=566mm

1104lm/ 12W/ 92lm/W/ 4000K/ L=566mm

1590lm/ 17W/ 97lm/W/ 3000K/ L=846mm

1657lm/ 17W/ 97lm/W/ 4000K/ L=846mm

2035lm/ 22W/ 100lm/W/ 3000K/ L=1126mm

2208lm/ 22W/ 100lm/W/ 4000K/ L=1126mm

2651lm/ 27W/ 102lm/W/ 3000K/ L=1406mm

2761lm/ 27W/ 102lm/W/ 4000K/ L=1406mm

3180lm/ 32W/ 104lm/W/ 3000K/ L=1686mm

3313lm/ 32W/ 104lm/W/ 4000K/ L= 1686mm

3711lm/ 37W/ 105lm/W/ 3000K/ L= 1966mm

3865lm/ 37W/ 105lm/W/ 4000K/ L=1966mm

4240lm/ 42W/ 105lm/W/ 3000K/ L=2246mm

4417lm/ 42W/ 105lm/W/ 4000K/ L=2246mm

5300lm/ 47W/ 117lm/W/ 3000K/ L=2806mm

5521lm/ 47W/ 117lm/W/ 4000K/ L=2806mm

6361lm/ 52W/ 127lm/W/ 3000K/ L=3366mm

6625lm/ 52W/ 127lm/W/ 4000K/ L=3366mm
