Lindner ECO_N®
Architonic ID: 20780974

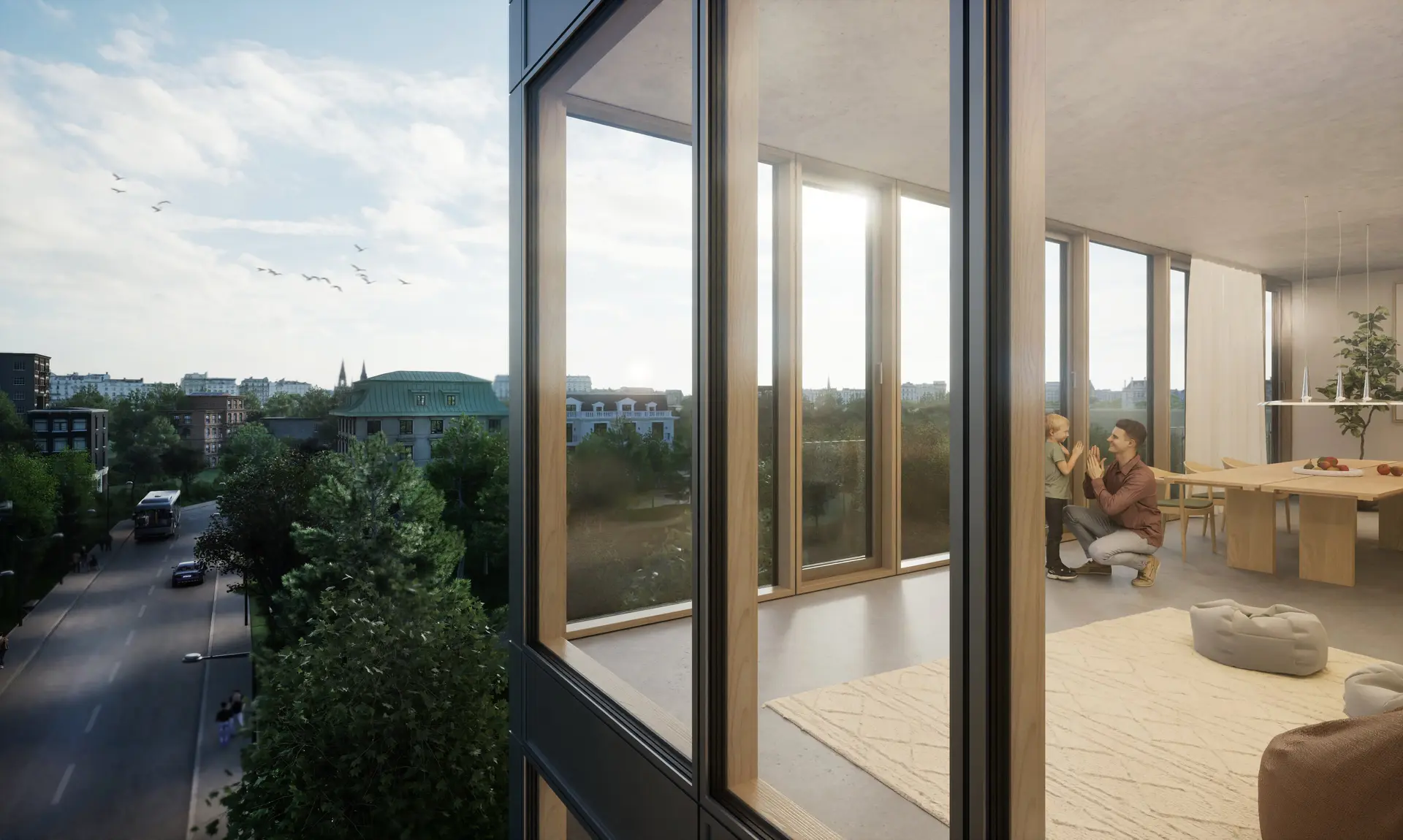

The Lindner ECO_N® is the first hybrid façade among the Lindner Group's unitised façades and combines cost-effectiveness and sustainability through the combination of timber modules and aluminium.
The hybrid façade combines the advantages of the Lindner ECO aluminium construction with a patented PA pressure strip for maximum thermal insulation. The timber module is protected against moisture and only non-combustible materials are used in the ceiling connection area. The timber module also offers structural advantages for fire protection. The wood is CO2-neutral and improves the ecological balance of the façade. In the ECO_N façade, it contributes to a CO2 reduction of 20 to 30 per cent, depending on the design. The combination of timber and aluminium profiles ensures durability and sustainability and creates a warm atmosphere and a connection to nature. The modular combination of wood and aluminium profiles creates a modern look. There is a large selection of wood types and the façade can be customised. Pure, recyclable materials are used for the hybrid façade. Lindner is committed to transparency in its life cycle assessment and environmental management. The façades are LEED, DNGB and BREEAM certified and carry the Cradle to Cradle Certified® Silver certificate.
Concept
Unitized façades- Flexible, timeless and modern. Lindner unitized façades consist of prefabricated individual parts that are placed in front of the building shell. They consist of a frame, glazing, sealing system and connecting parts. The parts are at least storey high and can be installed quickly. There are single-skin, double-skin (double façades) and hybrid façades. Classic unitised façades consist of a glass façade into which all the necessary components are integrated.
Opening elements such as windows, doors or sliding elements can be easily integrated and blend harmoniously into the façade appearance. Double façades consist of two shells: a thermal envelope with a baffle plate in front and a maintenance bridge. They offer better sound and thermal insulation and are often more economical to operate. It is advisable to involve façade consultants and building services engineers at an early stage. Hybrid façades combine single and double-skin façades. Lindner ECO_N®, the first hybrid façade from Lindner, combines wood modules with aluminium and thus offers an economical and sustainable solution.
This product belongs to collection:
Aluminium, Metal
