Lindner ECO®

Name: Lindner ECO®
Brand: Lindner Group

Facade systemsbyLindner Group

Visit product on Lindner Group website

Home

Facade systems

Lindner ECO®

About this product

Architonic ID: 20780966

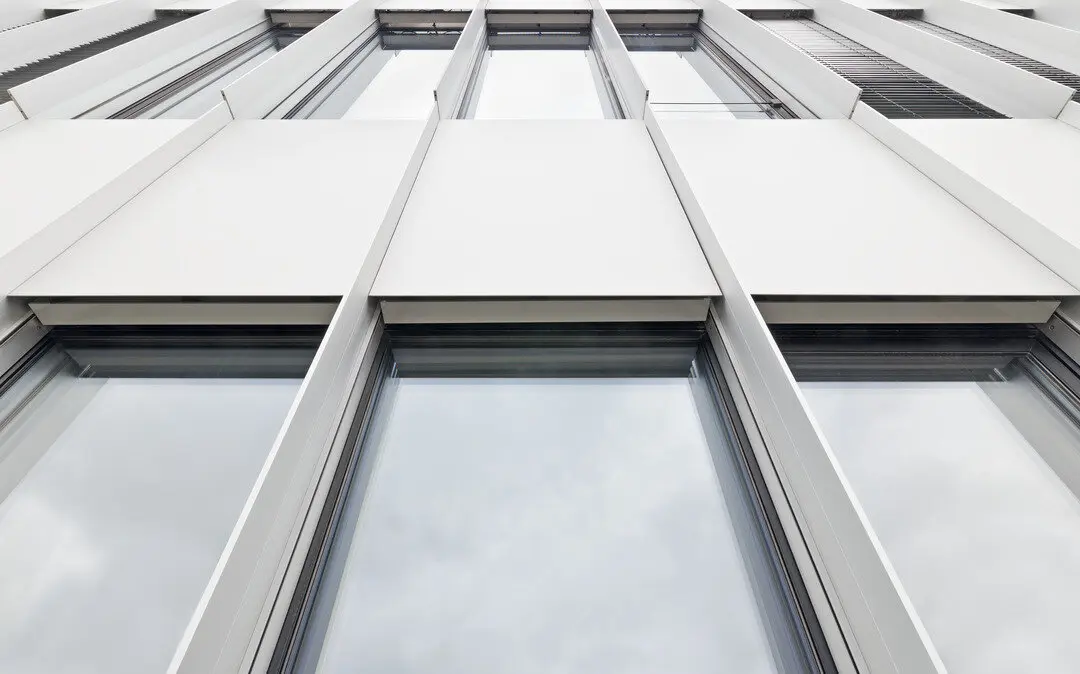

Lindner ECO® façades fulfil the highest demands in terms of appearance, technology, function and economy. Our research and development department will quickly and easily check your individual ideas for technical feasibility as well as acoustic and thermal properties and develop project-specific solutions. The Lindner ECO® aluminium façade offers outstanding thermal insulation and energy savings thanks to an innovative insulation concept. The patented glass and panel rebate reduces thermal bridges. Façade shading and design elements are supported by an integrated louvre fastening. In addition, a GRP flat profile optimises thermal insulation. Double insulating glazing is available as an option. A unique spring clip fastening ensures that the glass and panel infills are fall-proof. Patented stainless steel leaf springs secure the connection between the infill element and the load-bearing element frame and guarantee that the ECO® system is suitable for long-term use. Official test certificates confirm compliance with legal requirements. Lindner ECO® façades can be extended modularly, while retaining the stable basic structure of the unitised façade.

Concept

Unitized façades- Flexible, timeless and modern. Lindner unitized façades consist of prefabricated individual parts that are placed in front of the building shell. They consist of a frame, glazing, sealing system and connecting parts. The parts are at least storey high and can be installed quickly. There are single-skin, double-skin (double façades) and hybrid façades. Classic unitised façades consist of a glass façade into which all the necessary components are integrated.

Opening elements such as windows, doors or sliding elements can be easily integrated and blend harmoniously into the façade appearance. Double façades consist of two shells: a thermal envelope with a baffle plate in front and a maintenance bridge. They offer better sound and thermal insulation and are often more economical to operate. It is advisable to involve façade consultants and building services engineers at an early stage. Hybrid façades combine single and double-skin façades. Lindner ECO_N®, the first hybrid façade from Lindner, combines wood modules with aluminium and thus offers an economical and sustainable solution.
