Matric G3/R3 | System 55mm Suspended
Architonic ID: 20119030

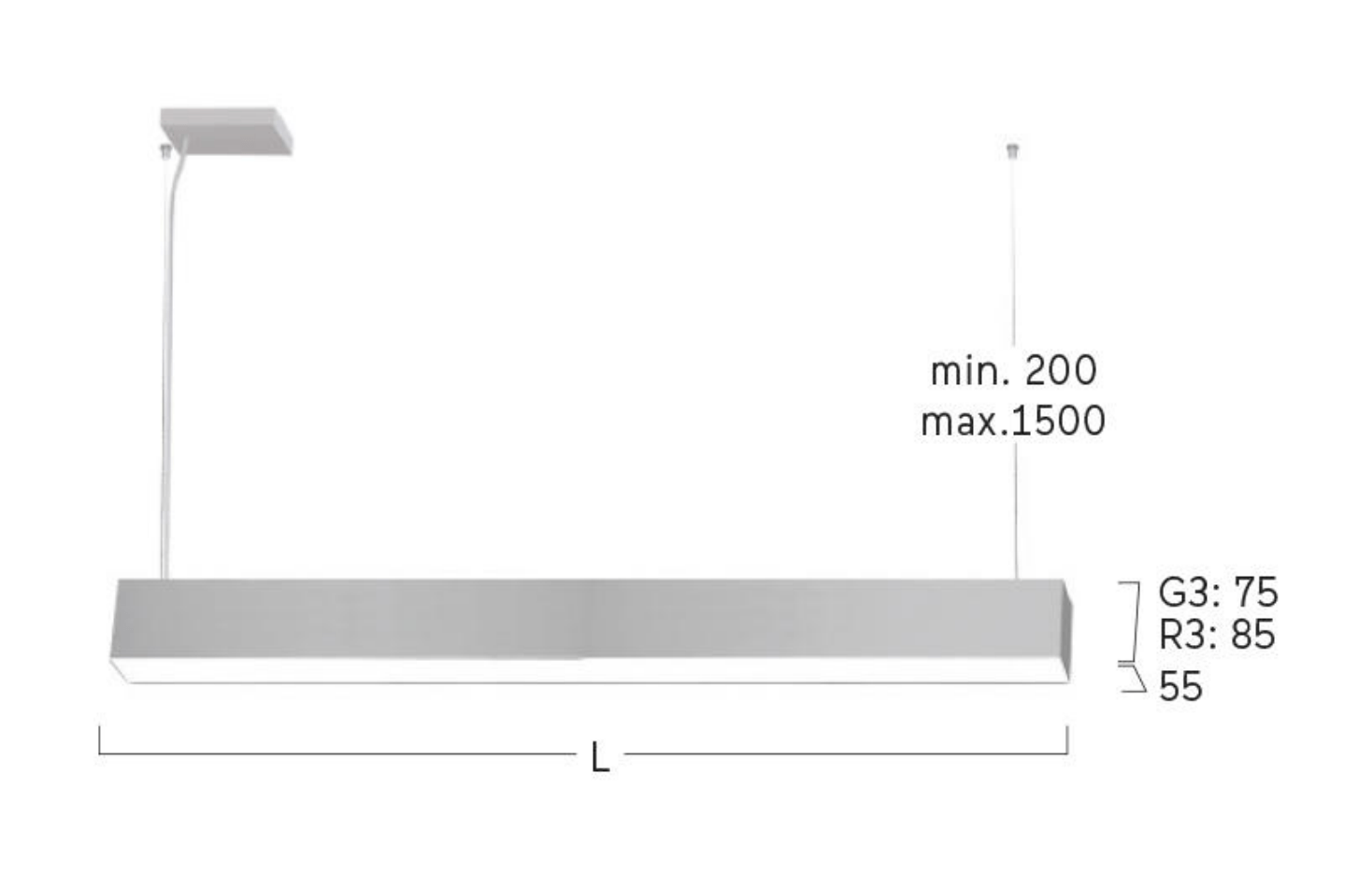

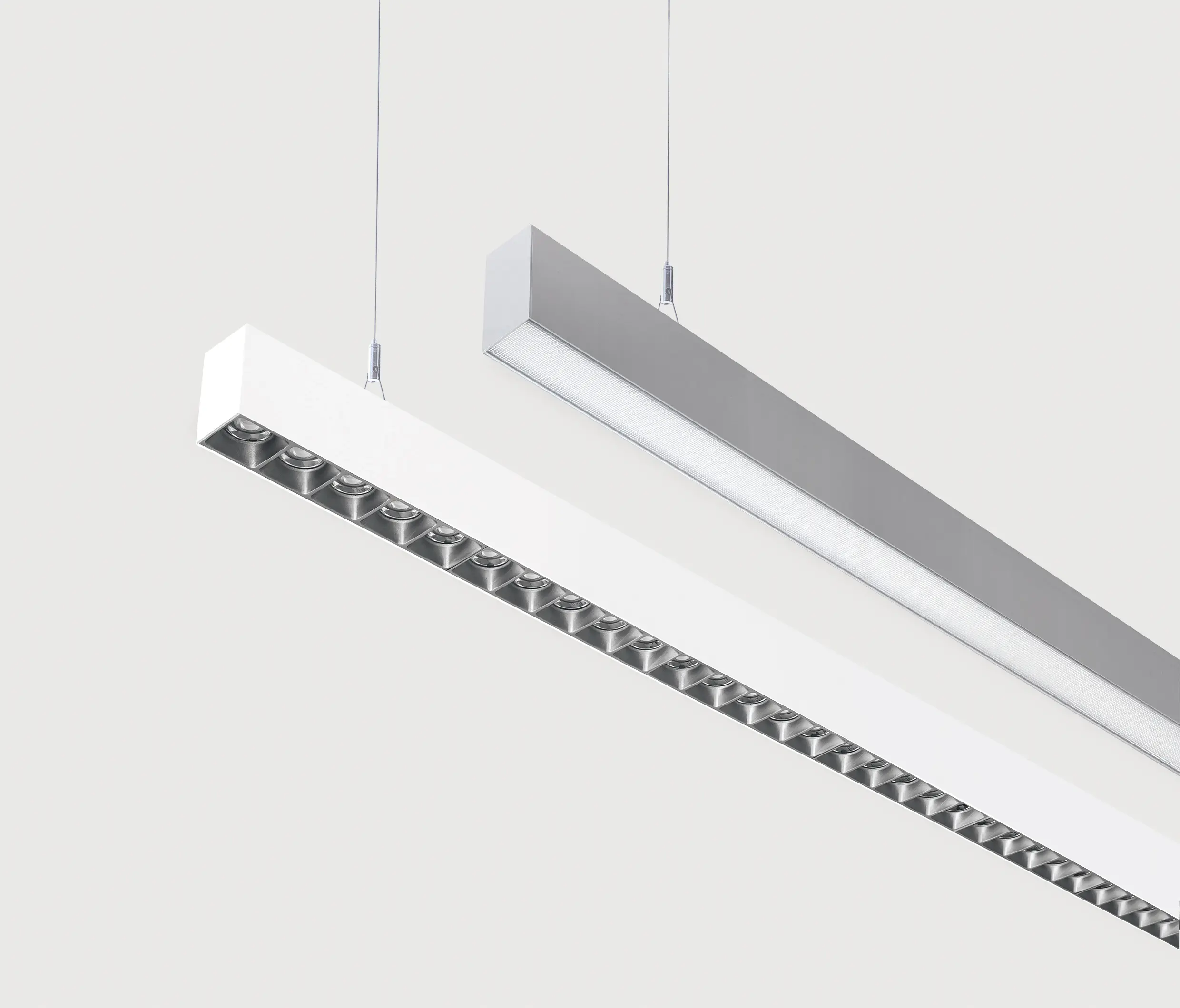

LED pendant luminaire. Direct-indirect or direct-only light distribution. Light channel made of 55mm wide aluminium profile. Bespoke lengths are possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable Y-cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology.
Concept
Designer luminaire for the office
Matric is the most variable light line system, which, in addition to a comprehensive standard range, can always be manufactured to millimeter precision according to specifications. Based on three light channel widths (system 40mm, 55mm and 81mm), it offers a variety of different profile cross-sections for mounting on the wall and on and in concrete-plasterboard and modular ceilings.
The diverse lighting technology options include high-performance lens reflector optics, wallwashers, microprism optics and opal diffusers. The illumination is always perfect, regardless of whether straight light lines or complex structures with angles and corners are realized. Almost all profiles can also be combined with 3-phase or 48V tracks and spotlights.
